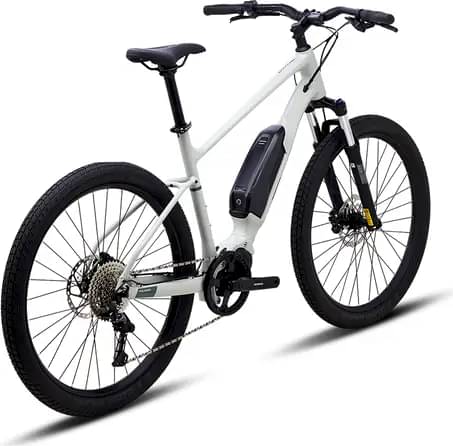

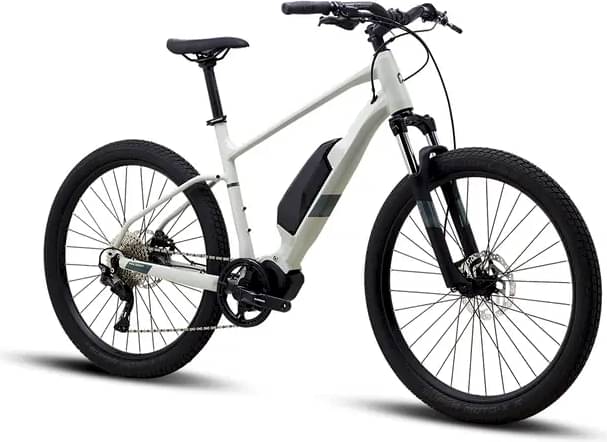

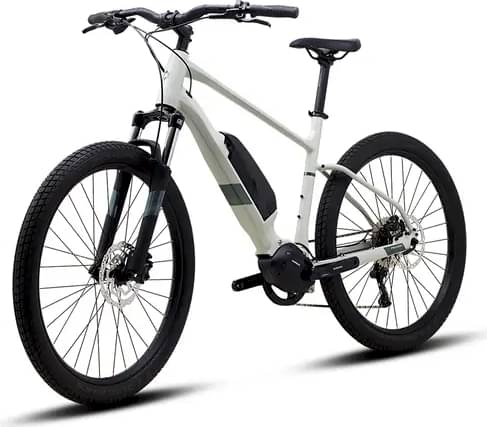

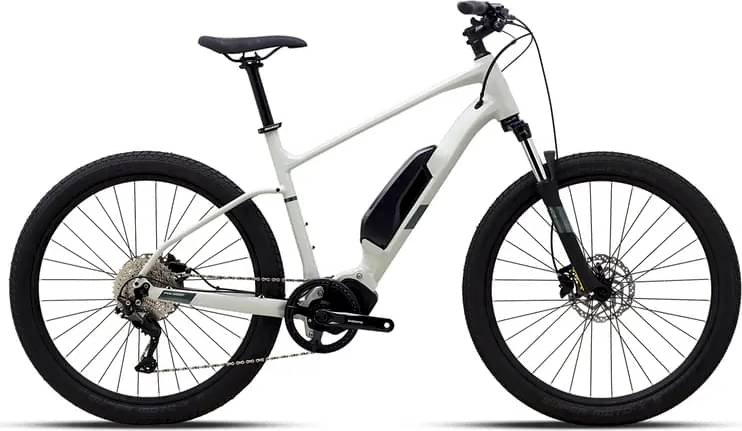

Polygon Kalosi Lanes Evo High 2023
2023 E-bike
Estimate price |
2,299$
Weight | 19.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery Shimano BT-E8010, 504 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALX Trekking Frame, Internal Brake And Gear Cable Routing, Disc Brake, QR x 135mm
Suspension Fork
Suntour XCM HLO 100mm Travel, 1-1/8" Straight Steerer, Lock Out, Disc Brake Post Mount 160mm, QR/Nut x 100mm

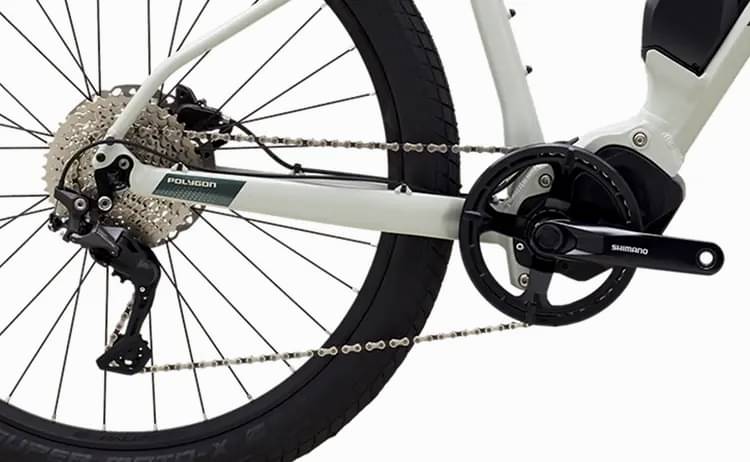

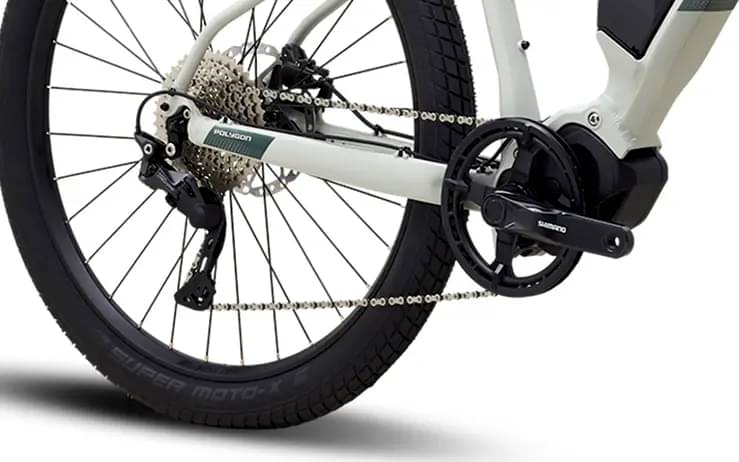

Drivetrain
Rear Derailleur
Shimano Deore RD-M5130-GS Direct Attach
Shift Levers
Shimano Deore SL-M5130-R 10-Speed Trigger
Cassette
Shimano CS-LG400-10 11-43T
Crank
Shimano FC-E5010 W/ SM-CRE50 44T CL: 46.5mm W/ Double Cg
Chain
Shimano CN-LG500
Pedals
Alloy Flat Pedals
Wheels
Front Hub
Shimano HB-TX505 QR x 100mm 32H Centerlock
Rear Hub
Shimano FH-TX505 QR x 135mm 32H Centerlock HG Free Hub
Rims
Alloy Double Wall 584 x 30C For Tire 584-54/76
Tires
Schwalbe Super Moto-X 27.5" x 2.40" (584-62)
Brakes
Brakes
Shimano BR-MT201 Hydraulic Disc Brake

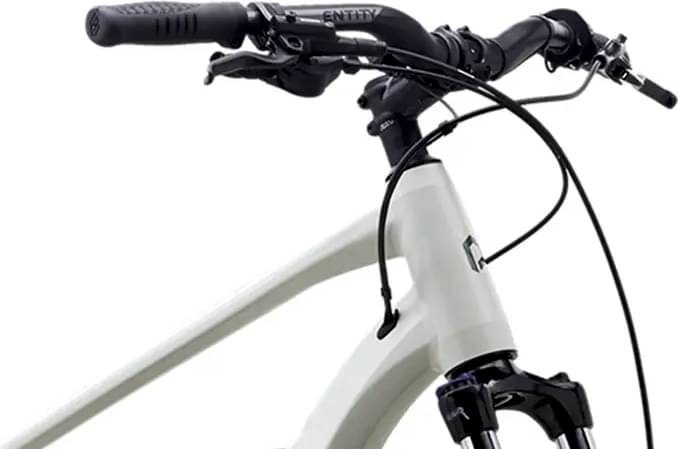

Cockpit
Stem
Entity Xpert Alloy, 31.8 Clamp, 7° Drop/Rise
Handlebar
Entity Expert Alloy, 31.8, 25mm Rise, 18° Back Sweep
Headset
Zero Stack (ZS) Semi Integrated Bearing For Taper Head Tube

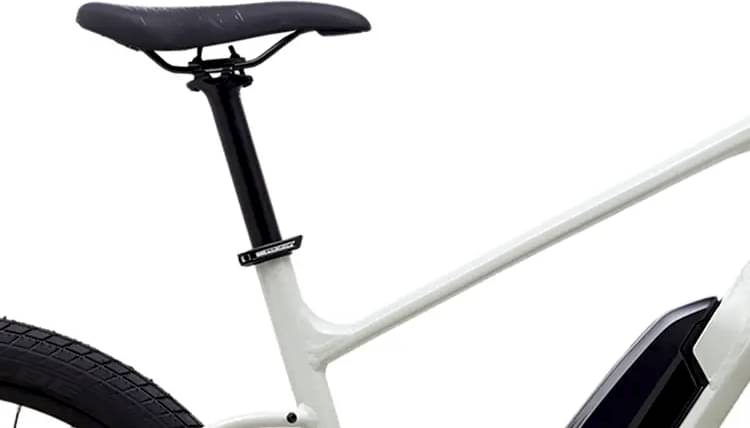

Seat
Saddle
Entity Saddle, Steel 7mm Rails
Seatpost
Entity Expert Alloy, 30.9 X 300mm, 0mm Offset
Motor & Battery
Motor
Shimano DU-E5000 Drive Unit, 250W, 40Nm

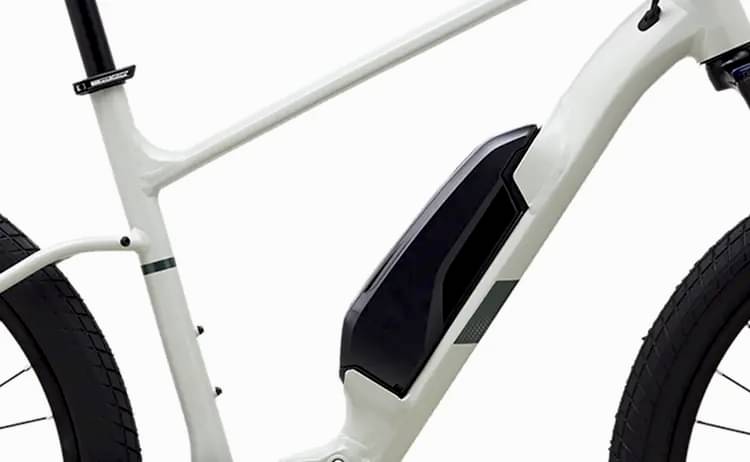

Battery
Shimano BT-E8010, 504 Wh
Charger
Shimano EC-E6002
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.49 mm | 1.52 mm |
| Bottom Bracket Height | 287 mm | 287 mm | 287 mm |
| Front Center | 616 mm | 631 mm | 650 |
| Rake | 5 mm | 6 mm | 5 mm |
| Trail | 117 mm | 113 mm | 114 mm |
| Stack | 553 mm | 584 mm | 612 mm |
| Reach | 382 mm | 392 mm | 402 mm |
| Top Tube Length | 538 mm | 562 mm | 586 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 140 mm | 170 mm | 200 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1059 mm | 1074 mm | 1093 mm |
| Bottom Bracket Drop | -70 mm | -70 mm | -70 mm |
| Standover Height | 696 mm | 728 mm | 758 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Kalosi Lanes Evo High belongs to the Polygon E Kalosi model. Polygon released 14 e-bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Polygon KALOSI LANES EVO MID-STEP 2023 is the cheapest e-bike model and costs 1549$. Polygon Kalosi Lanes Evo Mid 2023 is the most expensive one and costs 2299$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry e-bikes
According to our calculations, the average cost of a Crosscountry e-bike that is reliable is 2453$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2299$. If we compare this with the average Crosscountry e-bike cost we notice that the price is 6.7% lower.
Crosscountry e-bikes average weight
If we make a quick analysis of the average weight of a Crosscountry e-bike, we get 23.21 kg (51.17 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
much lighter than average, Kalosi Lanes Evo High has a weight of 19.6 kg (43.21 lbs). In short, the average Crosscountry e-bike weight is 18.42% higher than this one.

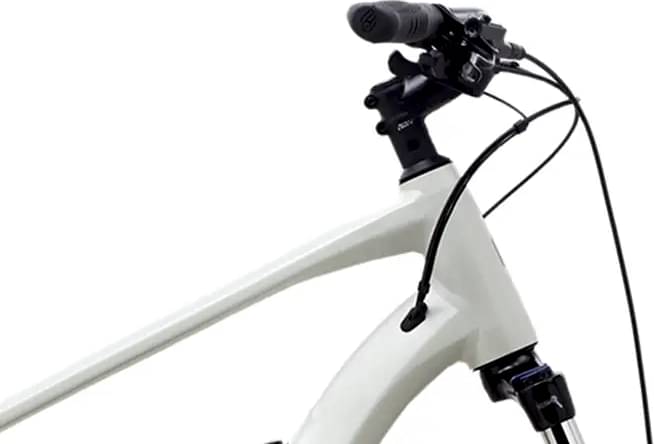

Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components

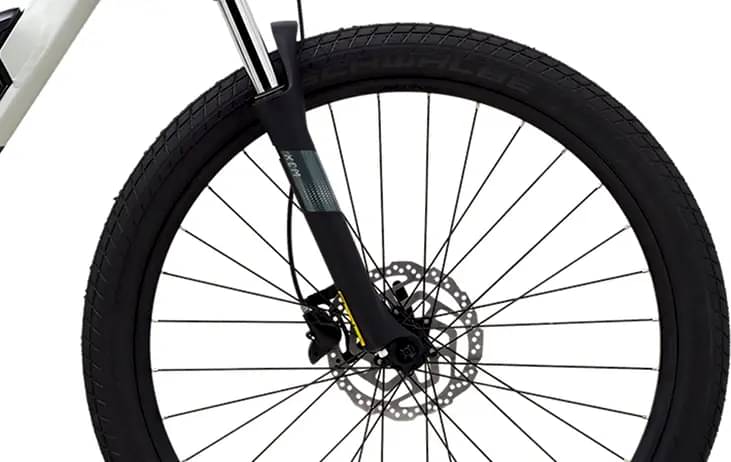

Fork
The fork installed on this bike is the Suntour XCM model. The travel on this model is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When leaving the production line, the Kalosi Lanes Evo High model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Polygon Kalosi Lanes Evo High is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
