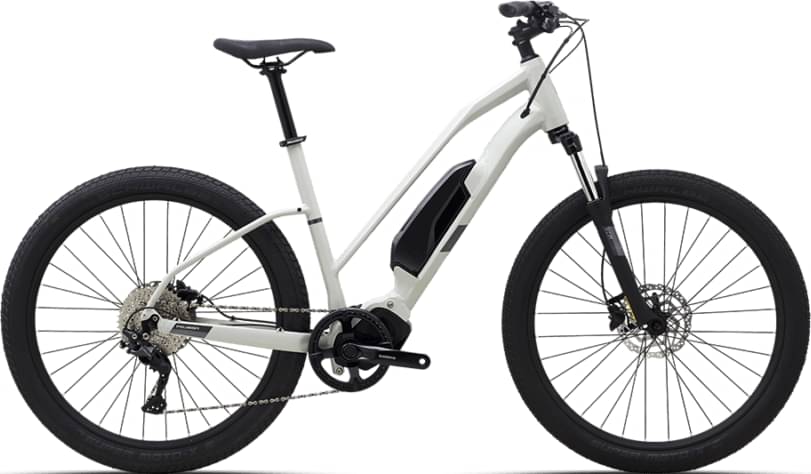

Polygon KALOSI LANES EVO MID-STEP 2022
2022 E-bike
Estimate price |
1,549$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery SHIMANO BT-E8010 -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 161cm
MD
159cm - 170cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
aluminum
Suspension Fork
SUNTOUR XCM HLO 100mm TRAVEL, STEERER: TRAIGHT 1-1/8"
Drivetrain
Rear Derailleur
SHIMANO DEORE RD-M5130-GS DIRECT ATTACH
Shift Levers
SHIMANO DEORE SL-M5130-R 10-SPEED TRIGGER
Cassette
SHIMANO CS-LG400-10 11-43T
Crank
SHIMANO FC-E5010 W/ SM-CRE50 44T CL:46.5mm W/ DOUBLE CG
Bottom Bracket
SHIMANO DU-E5000 DRIVE UNIT
Chain
SHIMANO CN-LG500
Pedals
PP PEDALS W/ REFLECTOR
Wheels
Front Hub
F: SHIMANO HB-TX505 QRx100mm 32H CENTERLOCK / R: SHIMANO FH-TX505 QRx135mm 32H CENTERLOCK
Rear Hub
F: SHIMANO HB-TX505 QRx100mm 32H CENTERLOCK / R: SHIMANO FH-TX505 QRx135mm 32H CENTERLOCK
Rims
ALLOY DOUBLE WALL DISC 27.5”
Tires
SCHWALBE SUPER MOTO-X 27.5"x2.40" (584-62)
Brakes
Brakes
SHIMANO BR-MT201 HYDRAULIC DISC BRAKE
Brake Levers
SHIMANO BR-MT201 HYDRAULIC DISC BRAKE
Cockpit
Handlebar
ENTITY EXPERT ALLOY, W: 700mm, BB: 31.8mm, R/D: 25mm, B: 18degre
Headset
ZERO STACK (ZS) SEMI INTEGRATED BEARING FOR TAPER HEAD TUBE, ZS 44/28.6 | ZS 56/30
Seat
Saddle
ENTITY SADDLE, ø7mm
Seatpost
ENTITY EXPERT ALLOY, 30.9 x 300mm
Motor & Battery
Motor
SHIMANO DU-E5000 DRIVE UNIT
Battery
SHIMANO BT-E8010
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.43 mm |
| Bottom Bracket Height | 287 mm | 287 mm |
| Front Center | 616 mm | 599 mm |
| Rake | 50 mm | 50 mm |
| Trail | 70 mm | 70 mm |
| Stack | 557 mm | 538 mm |
| Reach | 386 mm | 376 mm |
| Top Tube Length | 521 mm | 542 mm |
| Seat Tube Angle | 74.5 ° | 75 ° |
| Seat Tube Length | 430 mm | 460 mm |
| Head Tube Angle | 71 ° | 71 ° |
| Head Tube Length | 140 mm | 120 mm |
| Chainstay Length | 456 mm | 456 mm |
| Wheelbase | 1063 mm | 1046 mm |
| Bottom Bracket Drop | 70 mm | 70 mm |
| Standover Height | 524 mm | 521 mm |
| Wheels | 27" | 27" |
| Rider Min Height | 150 cm | 159 cm |
| Rider Max Height | 161 cm | 170 cm |
About this model
KALOSI LANES EVO MID-STEP belongs to the Polygon E Kalosi model. Polygon released 14 e-bikes variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the Polygon KALOSI MILES 2022 has a starting price of 1549$. Polygon Kalosi Lanes Evo High 2022 on the other hand is the most expensive at 2299$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry e-bikes average price
According to our calculations, the average cost of a Crosscountry e-bike that is reliable is 2453$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2022 and its price was 1549$. Doing a quick comparison, we notice that KALOSI LANES EVO MID-STEP price is 58.36% smaller than the average cost of a Crosscountry e-bike.
Overview of components
Fork
The KALOSI LANES EVO MID-STEP comes factory-installed with the Suntour XCM fork. This has a travel range of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The KALOSI LANES EVO MID-STEP 2022 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the e-bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The KALOSI LANES EVO MID-STEP has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
KALOSI LANES EVO MID-STEP comes in 2 sizes, that range from 150 cm – 170 cm (4.92 ft – 5.58 ft). In conclusion, finding one for you shouldn’t be a problem.
