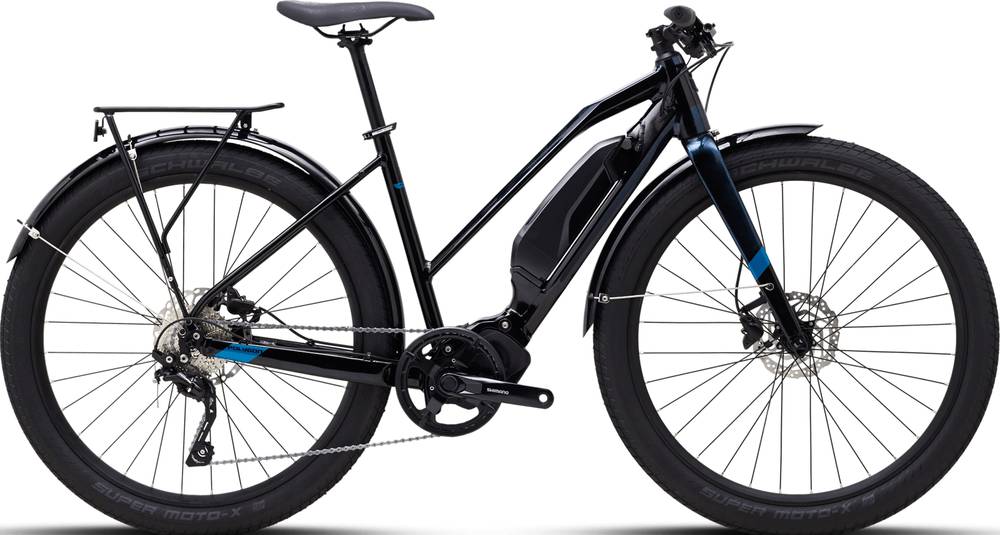

Polygon PATH E5 LADY 2020
2020 E-bike
Estimate price |
1,799$
Weight | 19.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Groupset Deore, Shimano -
Suspension Rigid -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AL6 PAVEMENT, 10X135MM O.L.D. IS MOUNT, INTERNAL SHIFTING ROUTE
Suspension Fork
FULL CARBON RIGID FORK
Rear Shock
-
Drivetrain
Rear Derailleur
SHIMANO DEORE RD-6000SGS
Shift Levers
SHIMANO DEORE SL-6000-R
Cassette
SHIMANO DEORE CS-HG500, 11-34T
Crank
CHAINWHEEL SHIMANO FC-E5010 170MM (43-49MM) 175MM (52MM), CHAINRING SHIMANO SM-CRE50 44T
Bottom Bracket
(MID MOTOR) SHIMANO DRIVE UNIT DU-E5000
Chain
KMC X10E
Wheels
Rims
ALLOY DOUBLE WALL RIMS WITH ALLOY HUB (TUBELESS READY)
Tires
SCHWALBE SUPER MOTO-X 27.5”X2.40
Brakes
Brakes
SHIMANO BR-MT201
Cockpit
Stem
ENTITY XPERT, ALLOY, 60MM (XS-S), 80MM (M-L)
Handlebar
ENTITY XPERT, ALLOY, 700MM
Seat
Saddle
ENTITY SADDLE, STEEL RAIL
Seatpost
ENTITY XPERT, ALLOY, 27.2X300MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM |
|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.44 mm |
| Bottom Bracket Height | 287 mm | 287 mm |
| Front Center | 599 mm | 616 mm |
| Rake | 50 mm | 50 mm |
| Trail | 61 mm | 61 mm |
| Stack | 538 mm | 557 mm |
| Reach | 376 mm | 386 mm |
| Top Tube Length | 521 mm | 542 mm |
| Seat Tube Angle | 75 ° | 74.5 ° |
| Seat Tube Length | 430 mm | 460 mm |
| Head Tube Angle | 71 ° | 71 ° |
| Head Tube Length | 120 mm | 140 mm |
| Chainstay Length | 456 mm | 456 mm |
| Wheelbase | 1046 mm | 1063 mm |
| Bottom Bracket Drop | 70 mm | 70 mm |
| Standover Height | 521 mm | 524 mm |
| Wheels | 650 | 650 |
Model Overview
PATH E5 LADY belongs to the Polygon E Path model. Polygon released 7 e-bikes variations of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
The most economical model, the Polygon PATH E5 GENT 2020 has a starting price of 1799$. Polygon Path E5 Shimano Steps E5000 E 2020 on the other hand is the most expensive at 2299$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Commuter e-bikes
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Polygon PATH E5 LADY price was 1799$. Comparing this to the average Commuter e-bike price, we see that the price is 42.8% lower.
Average weight for Commuter e-bikes
On a deeper look, we notice that the average weight of a Commuter e-bike is 25.2 kg (55.56 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
PATH E5 LADY weighs 19.9 kg (43.87 lbs) and is much lighter than the average. In short, the average Commuter e-bike weight is 26.63% higher than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The PATH E5 LADY 2020 e-bike is equipped with aluminum wheels when leaving the factory. After 700c wheels, 650b is the second most popular choice for road bikes. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The PATH E5 LADY has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
