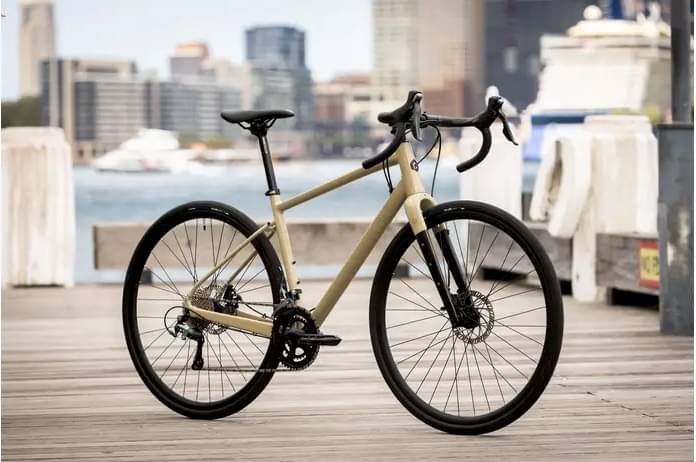

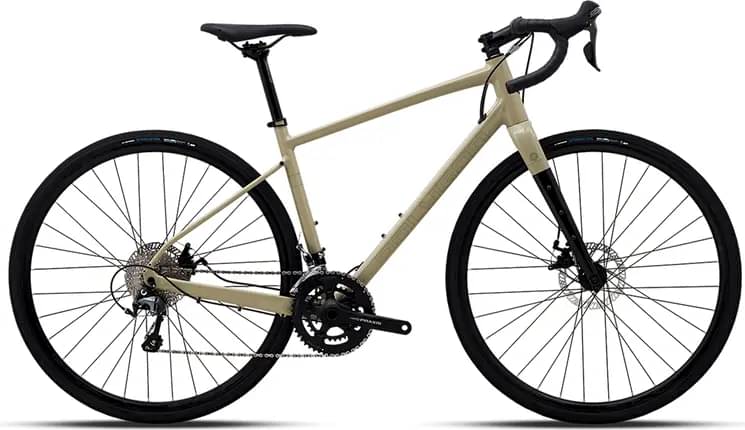

Polygon Path X4 2024
2024 Road
Estimate price |
1,346$
Weight | 10.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra, Praxis -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components

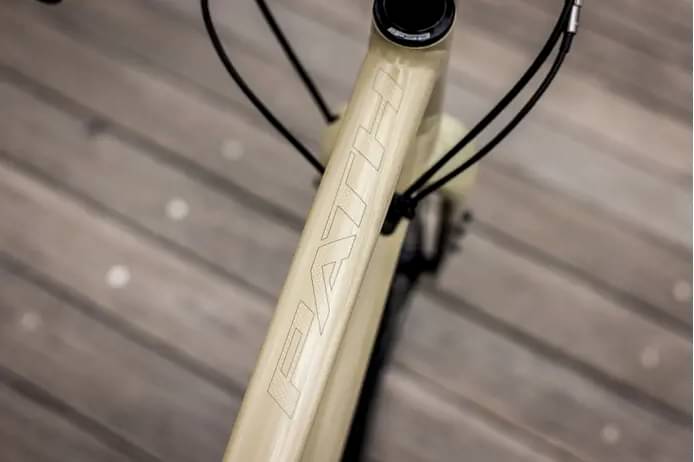

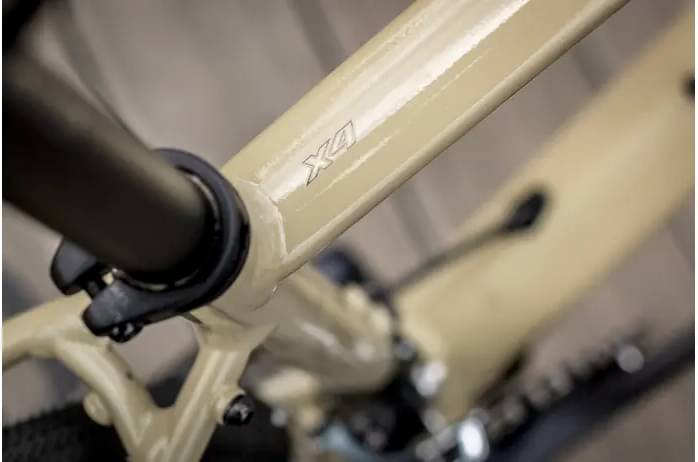

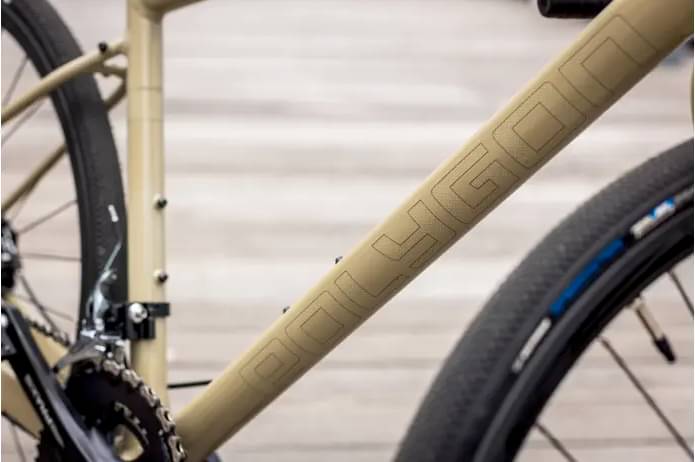

Frame
Frame
ALX Gravel
Suspension Fork
Carbon Rigid, Full Carbon (15kg Load Capacity)
Drivetrain

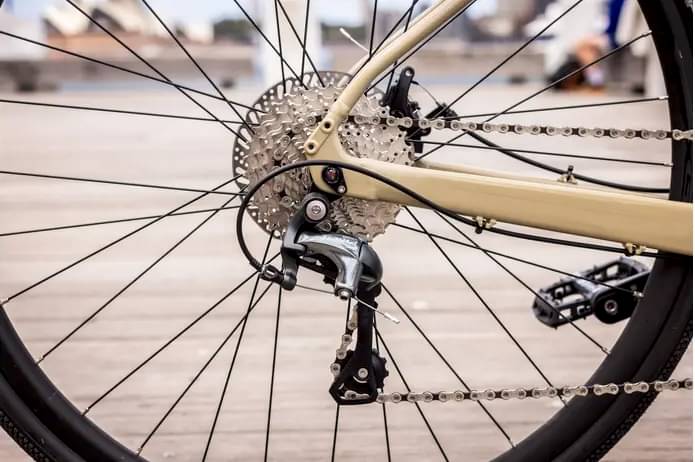

Rear Derailleur
Shimano Tiagra RD-4700, 10-Speed
Shift Levers
Shimano Tiagra RD-4700, 10-Speed
Cassette
Shimano Tiagra CS-HG500, 10-Speed, 11-34T

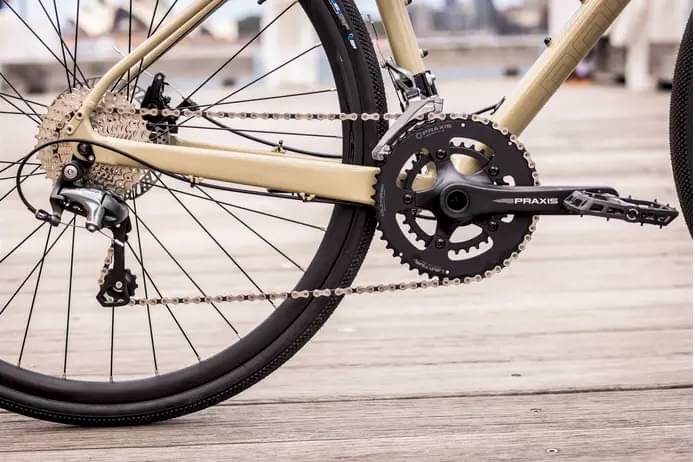

Crank
Praxis ALBA, 48-32T
Bottom Bracket
Praxis BSA, 68mm
Chain
KMC X10, 10-Speed
Wheels
Front Hub
Novatec D791SB, 12x100mm, 24H, CL
Rear Hub
Novatec D792SB, 12x142, 24H, CL
Rims
Alloy Double Wall, FV, 24H , 622x19, H;30mm, Tubeless Tape Installed *

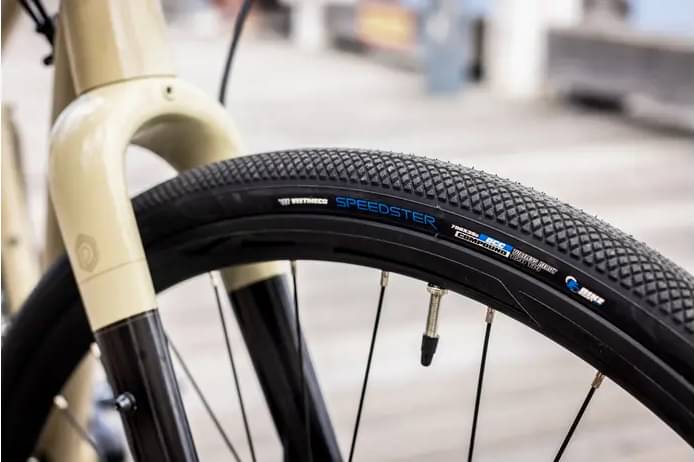

Tires
Vee Tire Co Speedster, 700x35C, DCC Compound, Tubeless ready
Brakes
Brakes
Tektro MD-C550, Flat
Brake Levers
Shimano Tiagra ST-4700
Cockpit
Stem
Entity Sport, 31.8mm
Handlebar
Entity Sport, 121mm drop x 74mm reach x 16° flare

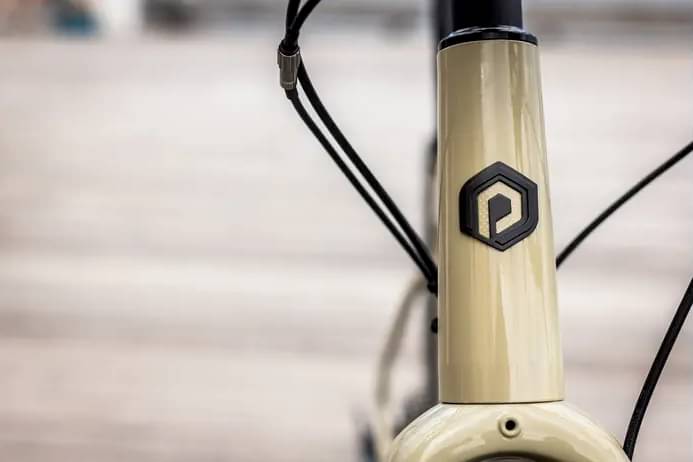

Headset
Integrated Headset W/ Sealed Bearing, IS 42/28.6 / IS 52/40
Seat
Saddle
Entity, Steel ø7mm
Seatpost
Entity Sport, 27.2x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.57 mm | 1.58 mm | 1.6 mm |
| Bottom Bracket Height | 276.5 mm | 276.5 mm | 276.5 mm | 276.5 mm |
| Front Center | 604 mm | 610 mm | 632 mm | 654 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 64 mm | 62 mm | 61 mm |
| Stack | 564.9 mm | 589.8 mm | 619.5 mm | 648.8 mm |
| Reach | 363.2 mm | 375.7 mm | 391.3 mm | 406.4 mm |
| Top Tube Length | 521 mm | 546 mm | 576 mm | 606 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 430 mm | 470 mm | 515 mm | 560 mm |
| Head Tube Angle | 70 ° | 71.5 ° | 71.8 ° | 72 ° |
| Head Tube Length | 140 mm | 160 mm | 190 mm | 220 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm | 421 mm |
| Wheelbase | 1012 mm | 1018 mm | 1040 mm | 1063 mm |
| Bottom Bracket Drop | 78 mm | 78 mm | 78 mm | 78 mm |
| Standover Height | 683 mm | 722 mm | 764 mm | 805 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Path X4 completes the Polygon Path model. Polygon released 30 bikes variations of this model so far. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
Polygon Path 2 2024 is the most affordable bike of this model and has a price of 445$. On the other hand, Polygon Path X4 2024, is the most expensive and costs 1209$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Gravel bikes average price
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2024 for 1209$. Doing a quick comparison, we notice that Path X4 price is 103.64% smaller than the average cost of a Gravel bike.
Average weight for Gravel bikes
Gravel bikes weigh an average of 8.45 kg (18.63 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 10.4 kg (22.93 lbs), the Path X4 model is much heavier than average. In other words, this model is 23.08% heavier than the average Gravel bike.
Overview of components

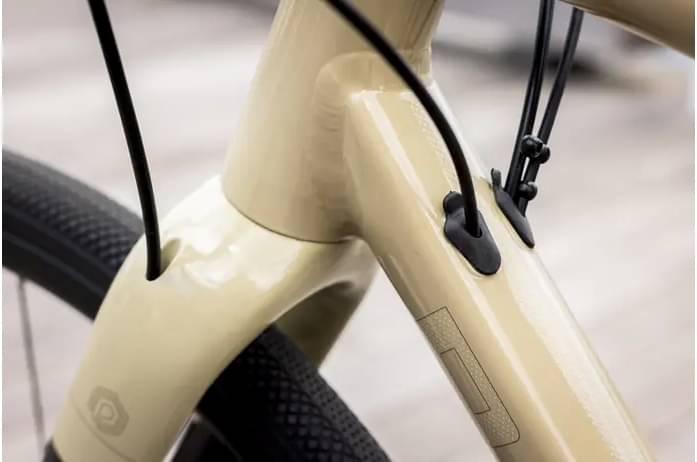

Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The Path X4 2024 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Polygon Path X4 is equipped with Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
