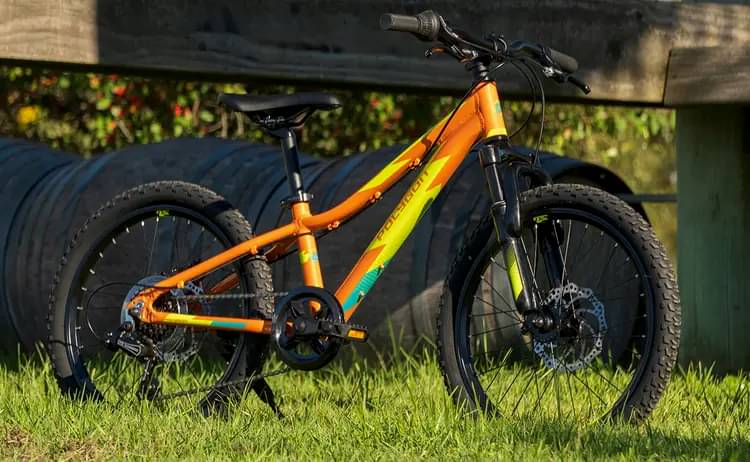

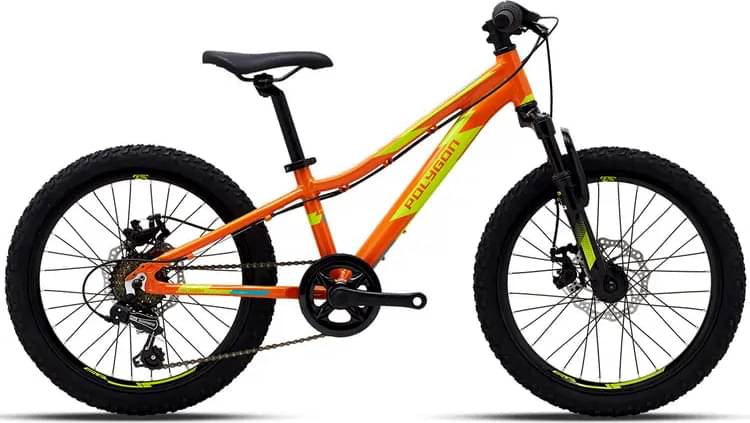

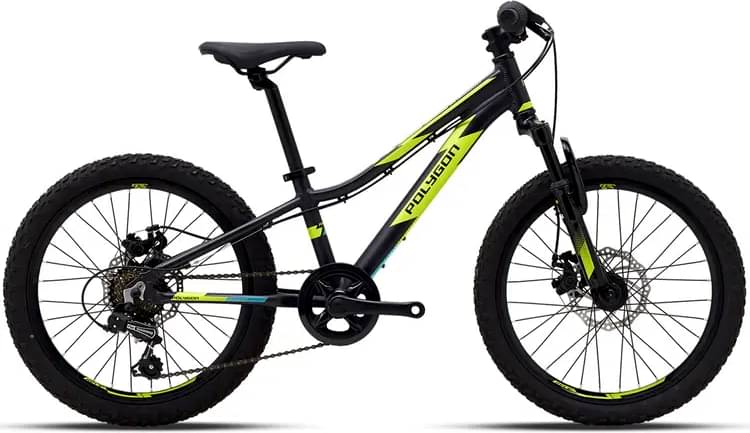

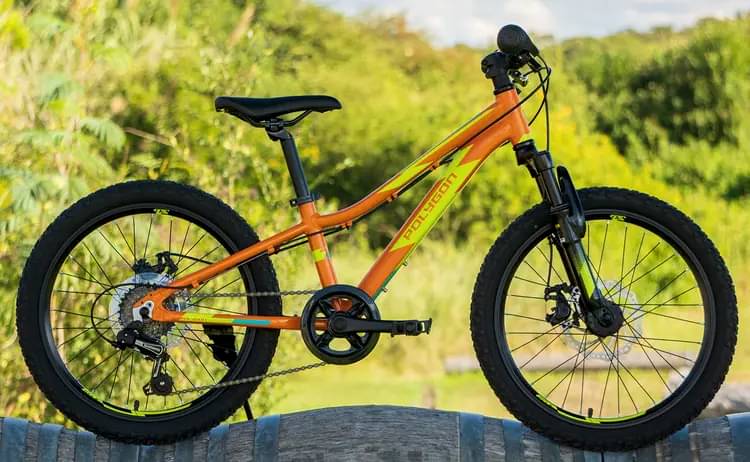

Polygon Relic 20 2023
2023 Mountain
Estimate price |
429$
Weight | 11.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 20" -
Travel Front 40mm -
Fork Zoom
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain 1 × 6 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
20"
109cm - 129cm
Parts list
Components
Main components, grouped by system.
Bike components

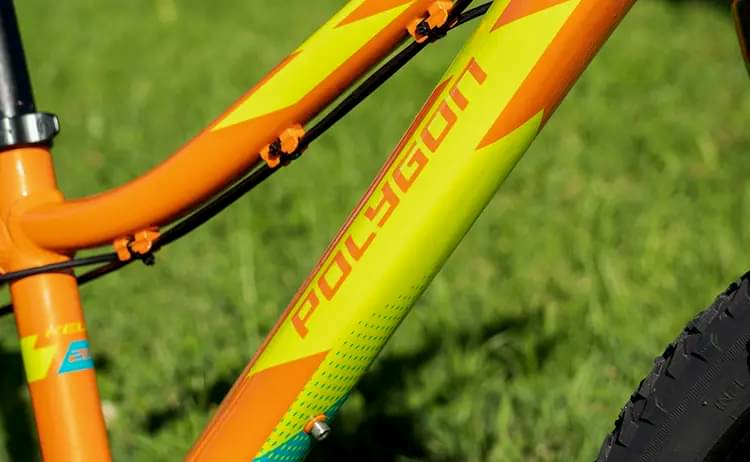

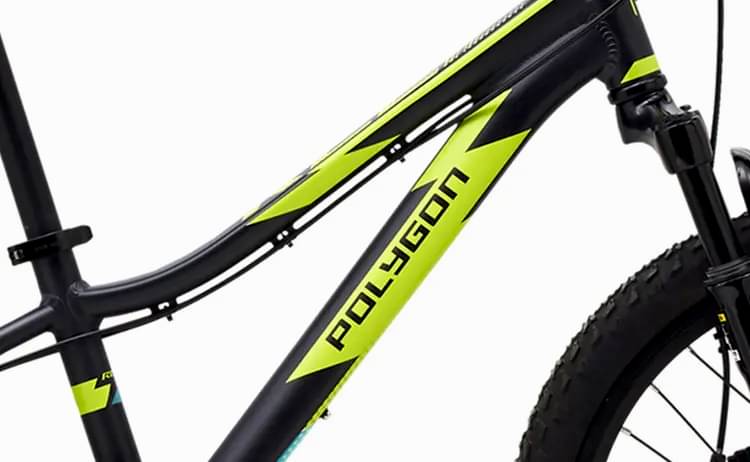

Frame
Frame
AL6 Alloy Youth, 20" Wheels, IS Seatstay Disc Mount, 135mm Dropouts
Suspension Fork
Zoom HL, 40mm Travel, Alloy Crown & Lower, Coil Spring, Straight 1-1/8" Steerer, QR x 100mm

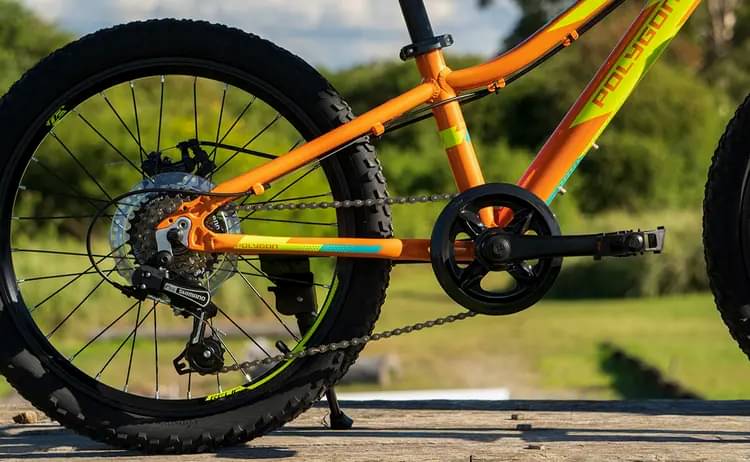

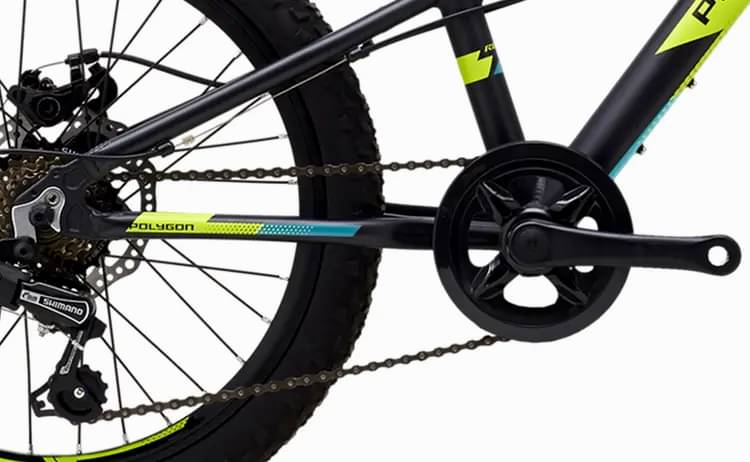

Drivetrain
Rear Derailleur
Shimano Tourney RD-TY21, Direct Attach

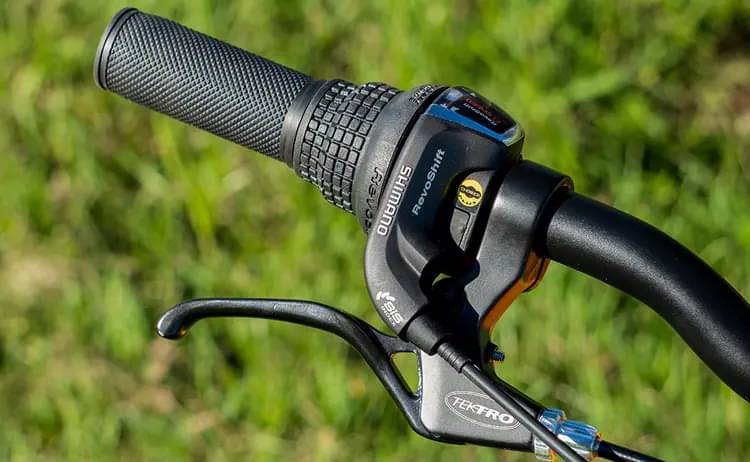

Shift Levers
Shimano Tourney, 1x6 Revo Shifter
Cassette
Shimano MF-TZ500 14-28T, 6-Speed
Crank
Alloy 32T, 140mm
Bottom Bracket
5-Piece, 68x124mm
Chain
KMC C30
Pedals
Nylon Platform
Wheels
Front Hub
Alloy 32H QR 6-Bolt
Rear Hub
Alloy 32H QR 6-Bolt
Rims
Alloy, Double-Wall, Disc Specific, 32H
Spokes
Stainless Steel Spokes
Tires
20 x 2.0"
Brakes
Brakes
Tektro TS-325A Mechanical Disc, Alloy Lever, 160mm Rotor

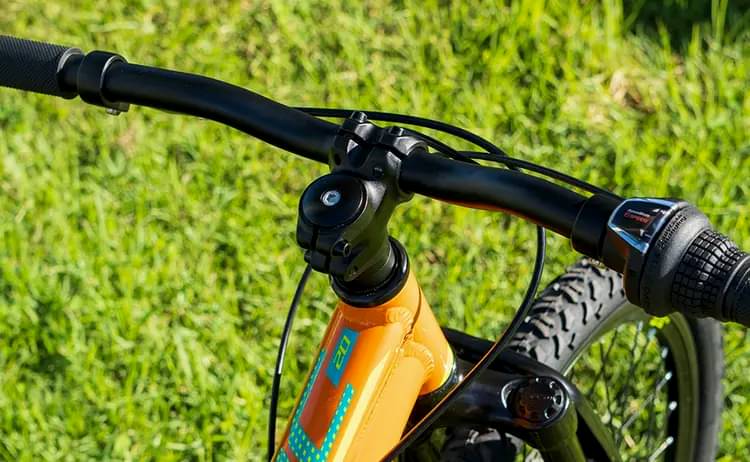

Cockpit
Stem
40mm, Steel
Handlebar
560mm, Steel
Headset
External Cup Bearing, EC 34/28.6 | EC 34/30
Seat
Saddle
Polygon Kids
Seatpost
27.2x300mm, 16mm Offset, Alloy
Fit data
Geometry
Numbers for sizing and ride feel.
About this model
Relic 20 is a Polygon Relic model. 14 bikes variations carry this model name so far. Take a sneak peek at all Polygon Relic bikes models from 2023, by clicking here.
Model range prices
Polygon Relic 20 2023 is the most economical model, with a starting price of 429$. Polygon Relic 24 2023 on the other hand costs 529$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Polygon released this model in 2023, its price was 429$. Doing a quick comparison, we notice that Relic 20 price is 344.06% lower than the average cost of a Crosscountry bike.
Crosscountry bikes average weight
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.31 kg (27.14 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 11.5 kg (25.35 lbs), the Relic 20 model is a bit lighter than average. To sum up, it’s 7.04% lighter than the average weight of Crosscountry bikes.
Overview of components

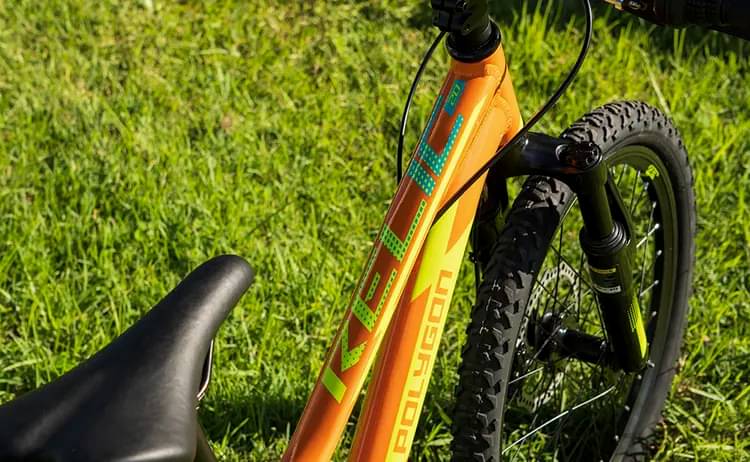

Fork
The Relic 20 comes factory-installed with the Zoom fork. This has a travel range of 40mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
Relic 20 has an aluminum fork, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels
As for the wheels, Polygon Relic 20 2023, has a 20″ aluminum model. The 20″ wheels are a good fit for folding bikes, BMX, or children bikes. In conclusion, you can use them better on-road, and less on technical terrain.
Brakes
Nothing is more important on a bike than its ability to brake properly. Polygon Relic 20 is equipped with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
Polygon Relic 20 2023 is available in one size only. In conclusion, make sure it fits you, or look for another model.
