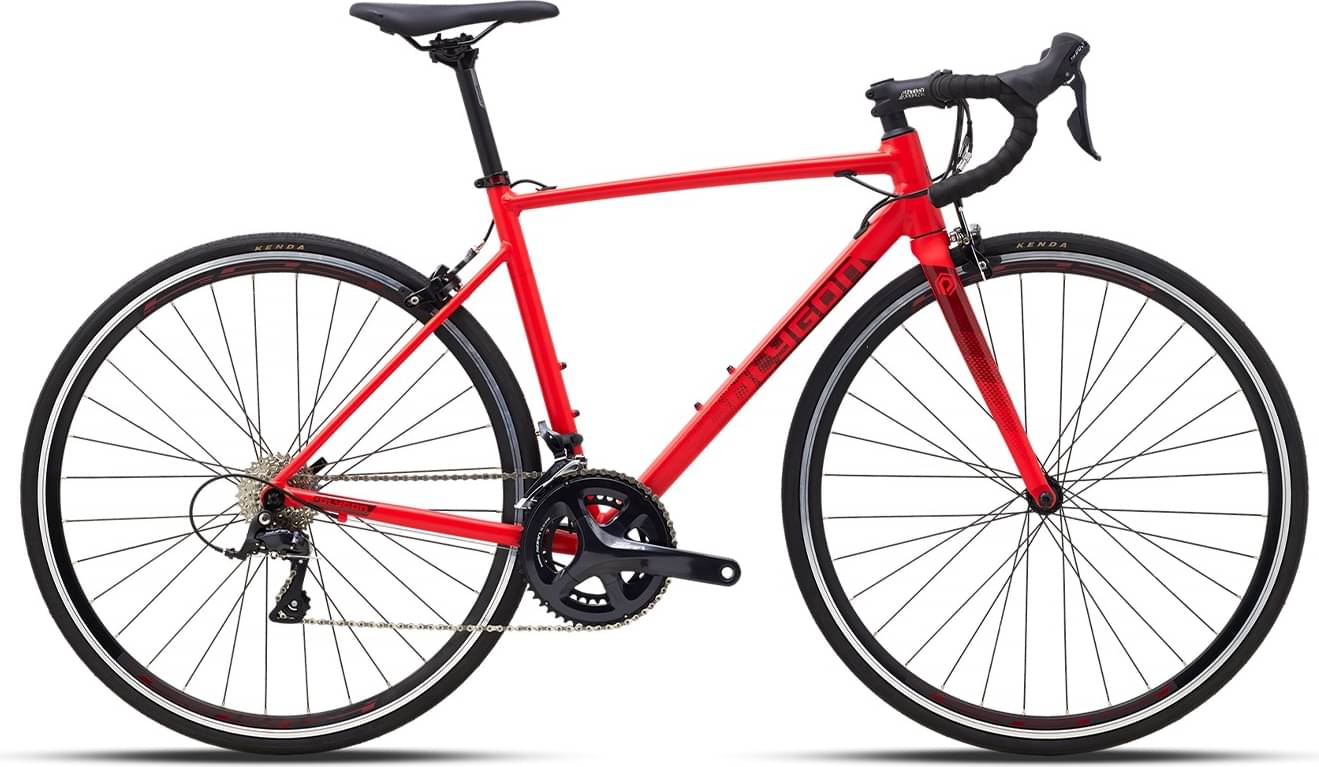

Polygon STRATTOS S3 2022
2022 Road
Estimate price |
899$
Weight | 9.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset Sora -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Rim
Sizing
Recommended size guide.
SM
160cm - 170cm
MD
165cm - 175cm
LG
170cm - 180cm
XL
175cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALX ALL-ROUND, QRx130mm
Suspension Fork
LIGHT WEIGHT CARBON FORK, STRAIGHT 1-1/8"
Rear Shock
-
Drivetrain
Rear Derailleur
SHIMANO SORA RD-R3000-SS DIRECT ATTACH
Front Derailleur
Shimano Sora FD-R3000 Band-Type 31.8mm
Shift Levers
SHIMANO SORA ST-R3000, 2x9-SPEED DUAL CONTROL LEVER
Cassette
SUNRACE CSM96.9AS 11-28T
Crank
SHIMANO SORA FC-R3000 50/34T
Bottom Bracket
SHIMANO BSA THREADED FOR 2-PIECE CRANKSET, 68MM
Chain
KMC X9
Pedals
Alloy Flat
Wheels
Front Hub
Novatec A171SB, QR x 100mm, 28H Sealed Bearings
Rear Hub
Novatec F172SB QR x 130 mm, 28H Sealed Bearings, HG Freehub
Rims
C04 ALLOY
Tires
KENDA K-152 700x25C
Brakes
Brakes
TEKTRO R315
Cockpit
Stem
ENTITY OE ALLOY, EXT: 90mm (XS, S, M) / 105mm (L, XL), BB: 31.8mm, R/D: 10degree
Handlebar
ENTITY SPORT ALLOY, 400mm (XS, S, M) / 420mm (L, XL), BB: 31.8mm, R/D: 124mm, B/R: 80mm
Headset
Zero Stack (ZS) Semi-Integrated Bearing For Straight Head Tube
Seat
Saddle
ENTITY, STEEL ø 7mm
Seatpost
ENTITY SPORT ALLOY, 27.2 x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.41 mm | 1.46 mm | 1.49 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 591 mm | 598 mm | 600 mm | 611 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 71 mm | 68 mm | 62 mm | 62 mm |
| Stack | 512 mm | 532.5 mm | 555.1 mm | 574.1 mm |
| Reach | 373 mm | 377 mm | 381 mm | 386.3 mm |
| Top Tube Length | 517 mm | 532 mm | 547.7 mm | 558.7 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm | 550 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 986 mm | 993 mm | 995 mm | 1006 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 700 | 728 mm | 756 mm | 783 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 165 cm | 170 cm | 175 cm |
| Rider Max Height | 170 cm | 175 cm | 180 cm | 185 cm |
About this model
STRATTOS S3 belongs to the Polygon Strattos model. Polygon launched 46 bikes of this model so far. You can easily view all of the Polygon Strattos bikes models from 2022, here.
Model range prices
Polygon STRATTOS S2 2022 is the most economical model, with a starting price of 799$. Polygon Strattos S8 Disc G2 2022 on the other hand costs 2228$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Race bikes
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 899$. Comparing this to the average Race bike price, we see that the price is 272.64% smaller.
Race bikes average weight
Race bikes weigh an average of 6.82 kg (15.04 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 9.8 kg (21.61 lbs), Polygon bike is much heavier than average. In short, the average Race bike weight is 43.7% lower than this one.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
As for the wheels, Polygon STRATTOS S3 2022, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The STRATTOS S3 has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
STRATTOS S3 comes in 4 sizes, that range from 160 cm – 185 cm (5.25 ft – 6.07 ft). In conclusion, you won’t have a problem finding one that suits you.
