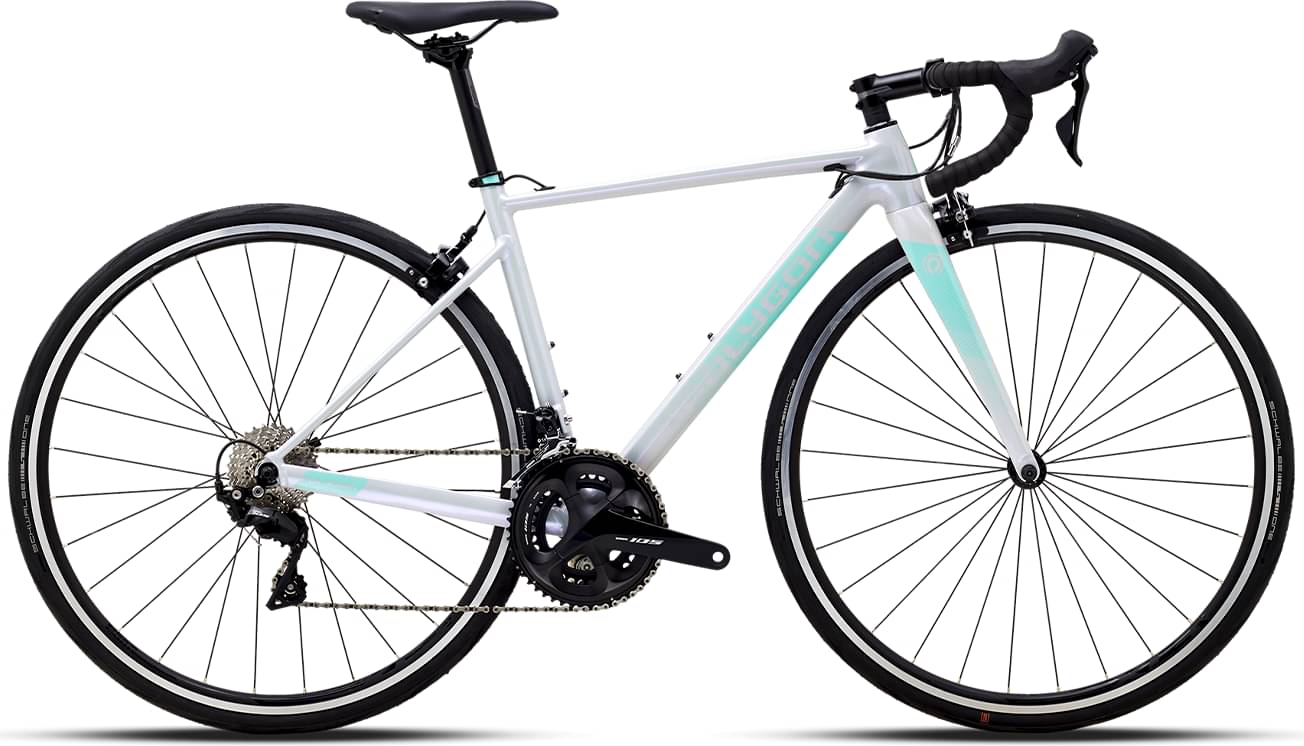

Polygon STRATTOS S5 2023
2023 Road
Estimate price |
999$
Weight | 9.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
XS
154cm - 164cm
SM
162cm - 170cm
MD
168cm - 176cm
LG
174cm - 182cm
XL
179cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
aluminum
Suspension Fork
ACX ALL-ROUND, TAPER 1-1/8" TO 1-1/2"
Drivetrain
Rear Derailleur
SHIMANO 105 RD-R7000-SS DIRECT ATTACH
Front Derailleur
Shimano 105 FD-R7000 Braze-On
Shift Levers
SHIMANO 105 ST-R7000, 2x11-SPEED
Cassette
SHIMANO 105 CS-R7000 11-30T
Crank
SHIMANO 105 FC-R7000 50/34T, 170mm (XS, S, M) / 172.5mm (L, XL)
Bottom Bracket
SHIMANO BB-RS500
Chain
KMC X11-1
Pedals
ALLOY CAGE & BODY W/ REFLECTOR
Wheels
Front Hub
Novatec A171SB, QR x 100mm, 28H Sealed Bearings
Rear Hub
Novatec F172SB QR x 130 mm, 28H Sealed Bearings, 11-Speed
Rims
ENTITY XL3
Tires
PERFORMANCE TIRE 700x28C
Brakes
Brakes
SHIMANO 105 BR-R7000
Brake Levers
SHIMANO 105 ST-R7000
Cockpit
Stem
Entity Sport Alloy, 31.8mm, 7°
Handlebar
ENTITY SPORT ALLOY, W: 400mm (XS, S, M) / 420mm (L, XL), BB: 31.8mm, R/D: 124mm, B/R: 80mm
Headset
ZERO STACK (ZS) SEALED BEARING FOR TAPER HEAD TUBE, IS 42/28.6 | IS 52/40
Seat
Saddle
ENTITY, STEEL ø 7mm
Seatpost
ENTITY SPORT ALLOY, DXL: 27.2 x 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.29 mm | 1.33 mm | 1.38 mm | 1.43 mm | 1.49 mm |
| Bottom Bracket Height | 272 mm | 272 mm | 274.5 mm | 274.5 mm | 277 mm |
| Front Center | 572 mm | 573 mm | 580 mm | 590 mm | 600 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 62 mm | 59 mm | 56 mm | 56 mm | 56 mm |
| Stack | 493.4 mm | 509.3 mm | 532.3 mm | 556.2 mm | 582.4 mm |
| Reach | 381.5 mm | 382.5 mm | 386.1 mm | 389 mm | 390.6 mm |
| Top Tube Length | 514 mm | 524 mm | 539 mm | 554 mm | 569 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 450 mm | 470 mm | 500 mm | 520 mm | 550 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 90 mm | 105 mm | 130 mm | 155 mm | 185 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 974 mm | 976 mm | 983 mm | 994 mm | 1004 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 67 mm |
| Standover Height | 695 mm | 714 mm | 745 mm | 766 mm | 520 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 154 cm | 162 cm | 168 cm | 174 cm | 179 cm |
| Rider Max Height | 164 cm | 170 cm | 176 cm | 182 cm | 187 cm |
About this model
STRATTOS S5 is part of the Polygon Strattos model. Polygon released 46 bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Polygon STRATTOS S2 2023 is the most economical model, with a starting price of 569$. Polygon Strattos S8 Disc 2023 on the other hand costs 2599$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Race bikes average price
If you want an acceptable Race bike you should know that the average price is 3350$. However, this doesn’t mean that if you spend less money on a Race bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Polygon released this model in 2023, its price was 999$. Doing a quick comparison, we notice that STRATTOS S5 price is 235.34% lower than the average cost of a Race bike.
Race bikes average weight
Race bikes have an average weight of 6.82 kg (15.04 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
STRATTOS S5 weighs 9.2 kg (20.28 lbs) and is much heavier than the average. In other words, this model is 34.9% heavier than the average Race bike.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
As for the wheels, Polygon STRATTOS S5 2023, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Polygon STRATTOS S5 has Rim brakes installed. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 154 cm – 187 cm (5.05 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
