Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
154cm - 164cm
SM
162cm - 170cm
MD
168cm - 176cm
LG
174cm - 182cm
XL
179cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
aluminum
Suspension Fork
ACX ALL-ROUND, TAPER 1-1/8" TO 1-1/2"
Drivetrain
Rear Derailleur
SHIMANO 105 RD-R7000-SS DIRECT ATTACH
Shift Levers
SHIMANO 105 ST-R7020, 2x11-SPEED DUAL CONTROL LEVER
Cassette
SHIMANO 105 CS-R7000 11-30T
Crank
SHIMANO 105 FC-R7000 50/34T, 165mm (XS) / 170mm (S, M, L) / 172.5mm (XL), MAX: 53/39T
Bottom Bracket
SHIMANO BB-RS500
Chain
KMC X11-1
Pedals
ALLOY CAGE & BODY W/ REFLECTOR
Wheels
Front Hub
F; ALLOY THRU AXLE 12x100mm 24H SEALED BEARINGS 6-BOLTS / R: ALLOY THRU AXLE 12x142mm 24H SEALED BEARINGS 6-BOLTS
Rear Hub
F; ALLOY THRU AXLE 12x100mm 24H SEALED BEARINGS 6-BOLTS / R: ALLOY THRU AXLE 12x142mm 24H SEALED BEARINGS 6-BOLTS
Rims
622-19 24H FOR TYRE 622-28/62 DISC TUBELESS READY
Spokes
ENTITY STAINLESS
Tires
PERFORMANCE TIRE 700x28C?
Brakes
Brakes
SHIMANO 105 BR-R7070 HYDRAULIC
Brake Levers
SHIMANO 105 ST-R7020
Cockpit
Handlebar
ENTITY SPORT ALLOY, W: 400MM (XS, S, M) / 420MM (L, XL), BB: 31.8mm, R/D: 124mm, B/R: 80mm
Headset
ZERO STACK (ZS) SEALED BEARING FOR TAPER HEAD TUBE, IS 42/28.6 | IS 52/40
Seat
Saddle
ENTITY, STEEL ø 7mm
Seatpost
ENTITY SPORT ALLOY, DXL: 27.2 X 350mm, Offset: 15mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.41 mm | 1.43 mm | 1.45 mm | 1.47 mm |
| Bottom Bracket Height | 272 mm | 272 mm | 274.5 mm | 274.5 mm | 277 mm |
| Front Center | 572 mm | 573 mm | 580 mm | 590 mm | 600 mm |
| Rake | 45 mm | 42 mm | 43 mm | 43 mm | 43 mm |
| Trail | 62 mm | 62 mm | 58 mm | 58 mm | 58 mm |
| Stack | 517.54 mm | 532.48 mm | 547.8 mm | 562.79 mm | 578.17 mm |
| Reach | 373.69 mm | 378.69 mm | 383.7 mm | 388.7 mm | 393.7 mm |
| Top Tube Length | 514 mm | 524 mm | 539 mm | 554 mm | 569 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 450 mm | 470 mm | 500 mm | 520 mm | 550 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 90 mm | 105 mm | 130 mm | 155 mm | 185 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 974 mm | 976 mm | 983 mm | 994 mm | 1004 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 67 mm |
| Standover Height | 721 mm | 743 mm | 761 mm | 783 mm | 805 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 154 cm | 162 cm | 168 cm | 174 cm | 179 cm |
| Rider Max Height | 164 cm | 170 cm | 176 cm | 182 cm | 187 cm |

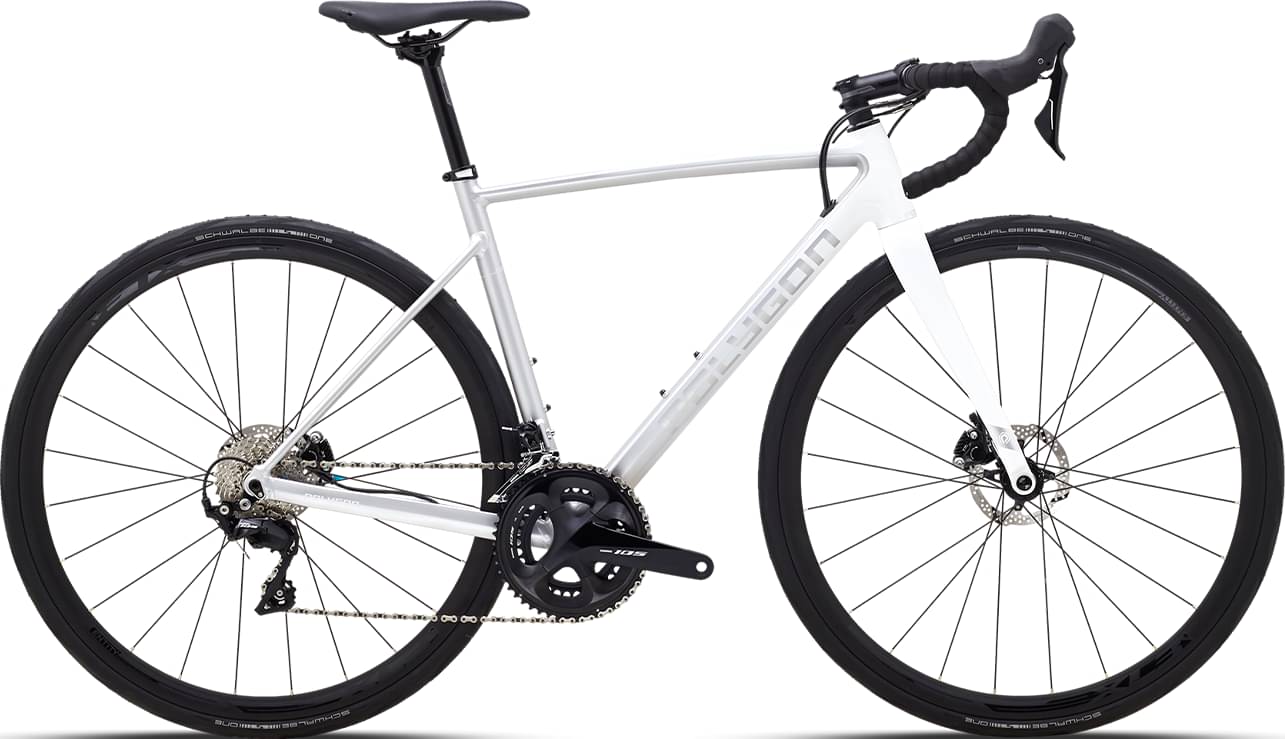

Model Overview
STRATTOS S5D is a Polygon Strattos model. 46 bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Polygon STRATTOS S2 2022 is the most affordable bike of this model and has a price of 799$. On the other hand, Polygon Strattos S8 Disc G2 2022, is the most expensive and costs 2228$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Race bikes
Our math shows that the average cost of a dependable Race bike is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1299$. Doing a quick comparison, we notice that STRATTOS S5D price is 157.89% smaller than the average cost of a Race bike.
STRATTOS S5D components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The wheels on STRATTOS S5D are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The STRATTOS S5D comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This bike is available in 5 sizes. They vary from 154 cm – 187 cm (5.05 ft – 6.14 ft). In short, you can easily find one that suits you.
