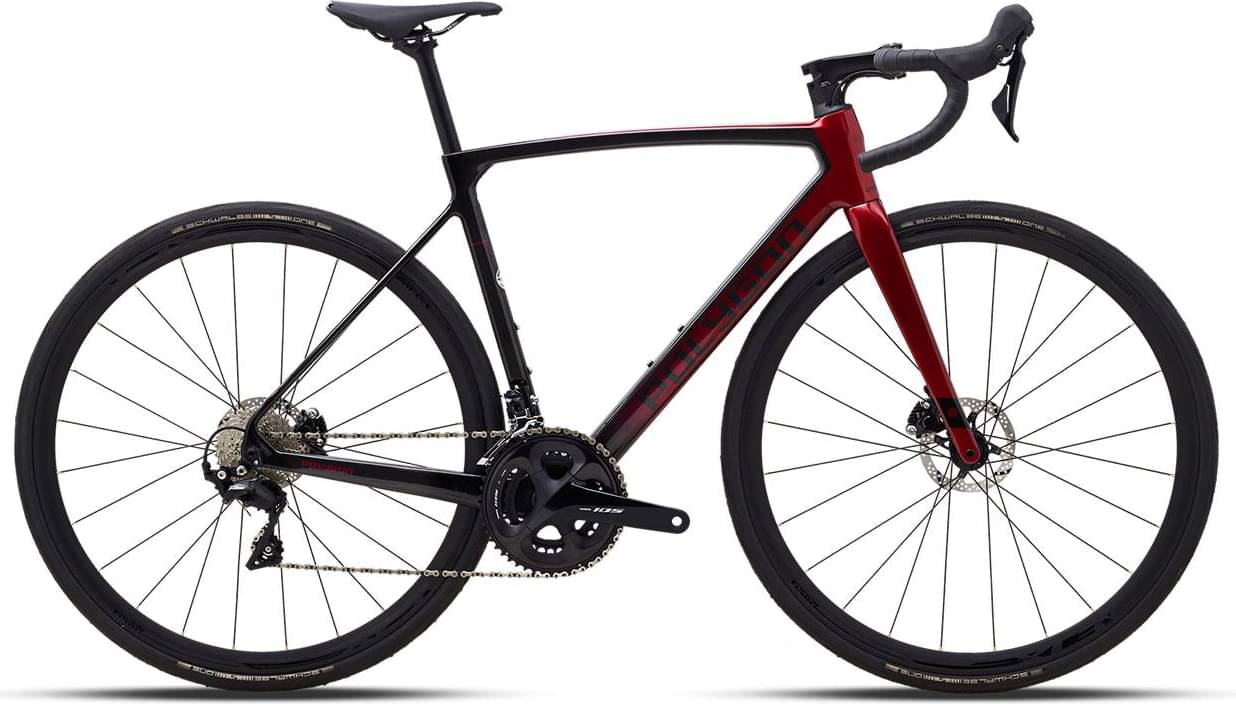

Polygon STRATTOS S7 DISC 2022
2022 Road
Estimate price |
2,099$
Weight | 8.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
144cm - 155cm
XS
153cm - 164cm
SM
162cm - 170cm
MD
168cm - 176cm
LG
174cm - 182cm
XL
179cm - 187cm
XXL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ACX ALL-ROUND UCI APPROVED, HUB SPACING: 12x142mm, FOR THRU AXLE TP1.5 L:163mm
Suspension Fork
ACX ALL-ROUND UCI APPROVED, TAPER 1-1/8" TO 1-1/2"
Rear Shock
-
Drivetrain
Rear Derailleur
SHIMANO 105 RD-R7000-SS DIRECT ATTACH
Front Derailleur
Shimano 105 FD-R7000 Braze-On
Shift Levers
SHIMANO 105 ST-R7020, 2x11-SPEED DUAL CONTROL LEVER
Cassette
SHIMANO 105 CS-R7000 11-30T
Crank
SHIMANO 105 FC-R7000 50/34T, CRANK ARM: 165mm (XXS, XS) / 170mm (S, M, L) / 172.5mm (XL, XXL)
Bottom Bracket
SHIMANO BB-RS500-PB
Chain
KMC X11-1
Pedals
Not included
Wheels
Front Hub
Alloy Thru Axle 12x100mm 24H Sealed Bearings 6-Bolts
Rear Hub
Alloy Thru Axle 12x142mm 24H Sealed Bearings 6-Bolts, For Cassette Sprocket 11-Speed
Rims
ENTITY XL3 DISC W/ TUBELESS RIM TAPE
Tires
PERFORMANCE TIRE 700x28C
Brakes
Brakes
SHIMANO 105 HYDRAULIC, ROTOR: 140mm 6-BOLTS
Brake Levers
Shimano 105 ST-R7020
Cockpit
Stem
ENTITY XPERT ALLOY, EXT: 90mm (XS, S) / 100mm (M, L) / 110mm (XL, XXL), BAR BORE: 31.8mm, RISE/DROP: 10degree
Handlebar
ENTITY XPERT ALLOY, W: 400mm (XS, S) / 420mm (M, L) / 440mm (XL, XXL), BAR BORE: 31.8mm, RISE/DROP: 125mm, BEND/REACH: 70mm
Headset
Integrated (Is) Sealed Bearing For Os Head Tube
Seat
Saddle
ENTITY FLUX2, CR-MO ø 7mm
Seatpost
ENTITY XPERT ALLOY, DXL: 27.2 x 350mm, OFFSET: 15mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.32 mm | 1.29 mm | 1.33 mm | 1.38 mm | 1.43 mm | 1.48 mm | 1.51 mm |
| Bottom Bracket Height | 271.5 mm | 271.5 mm | 271.5 mm | 274 mm | 274 mm | 276.5 mm | 276.5 mm |
| Front Center | 566 mm | 572 mm | 573 mm | 580 mm | 590 mm | 600 mm | 620 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 65 mm | 62 mm | 59 mm | 56 mm | 56 mm | 56 mm | 56 mm |
| Stack | 498.3 mm | 499.8 mm | 515.8 mm | 539 mm | 562.8 mm | 588.9 mm | 617.5 mm |
| Reach | 378 mm | 387.6 mm | 388.5 mm | 392 mm | 394.9 mm | 396.6 mm | 407.9 mm |
| Top Tube Length | 510.1 mm | 520.1 mm | 530.1 mm | 545.1 mm | 560.1 mm | 575.1 mm | 595.1 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 439.1 mm | 454.2 mm | 474.2 mm | 500 mm | 524.7 mm | 554.3 mm | 584.2 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 90 mm | 90 mm | 105 mm | 130 mm | 155 mm | 185 mm | 215 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 422 mm | 422 mm |
| Wheelbase | 974 mm | 980 mm | 982 mm | 990 mm | 1000 mm | 1013 mm | 1032 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 70 mm | 70 mm | 67 mm | 67 mm |
| Standover Height | 722 mm | 734 mm | 753 mm | 780 mm | 806 mm | 837 mm | 867 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 144 cm | 153 cm | 162 cm | 168 cm | 174 cm | 179 cm | 185 cm |
| Rider Max Height | 155 cm | 164 cm | 170 cm | 176 cm | 182 cm | 187 cm | 195 cm |
Model Overview
STRATTOS S7 DISC is a Polygon Strattos model. 46 bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Polygon STRATTOS S2 2022 is the cheapest bike model and costs 799$. Polygon Strattos S8 Disc G2 2022 is the most expensive one and costs 2228$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Race bikes
According to our math, the average price for a trustworthy Race bike is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Polygon STRATTOS S7 DISC price was 2099$. Comparing the average cost of a Race bike to this one, you will see that STRATTOS S7 DISC price is 59.6% smaller.
Race bikes average weight
If we make a quick analysis of the average weight of a Race bike, we get 6.82 kg (15.04 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
much heavier than average, STRATTOS S7 DISC has a weight of 8.9 kg (19.62 lbs). In other words, this model is 30.5% heavier than the average Race bike.
STRATTOS S7 DISC components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The STRATTOS S7 DISC 2022 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The STRATTOS S7 DISC comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 7 sizes. They vary from 144 cm – 195 cm (4.72 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
