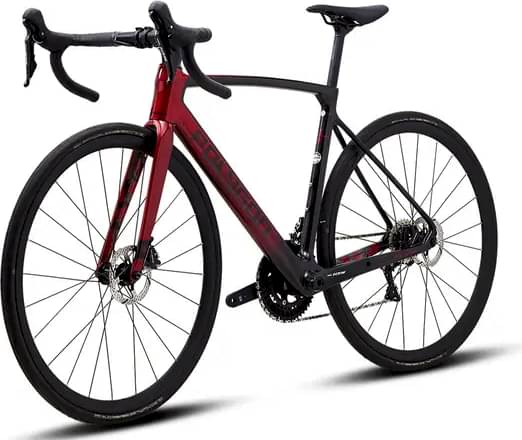

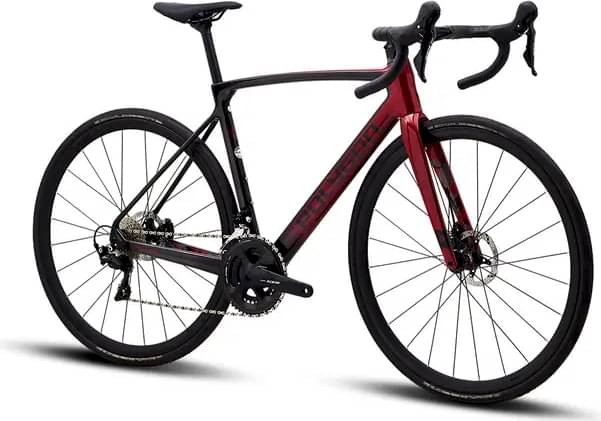

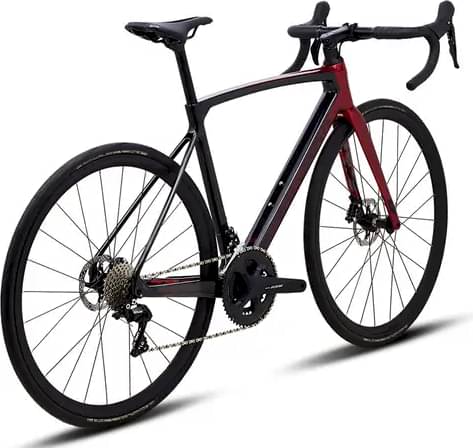

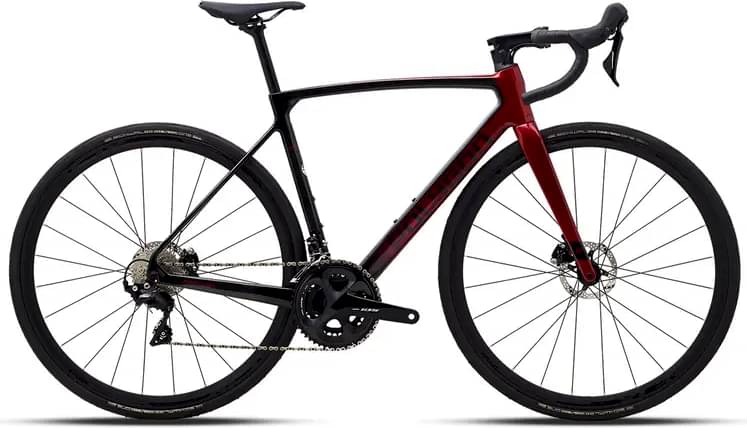

Polygon Strattos S7 Disc 2024
2024 Road
Estimate price |
2,099$
Weight | 9.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
139cm - 156cm
XS
153cm - 162cm
SM
160cm - 167cm
MD
165cm - 172cm
LG
170cm - 177cm
XL
174cm - 187cm
XXL
184cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components

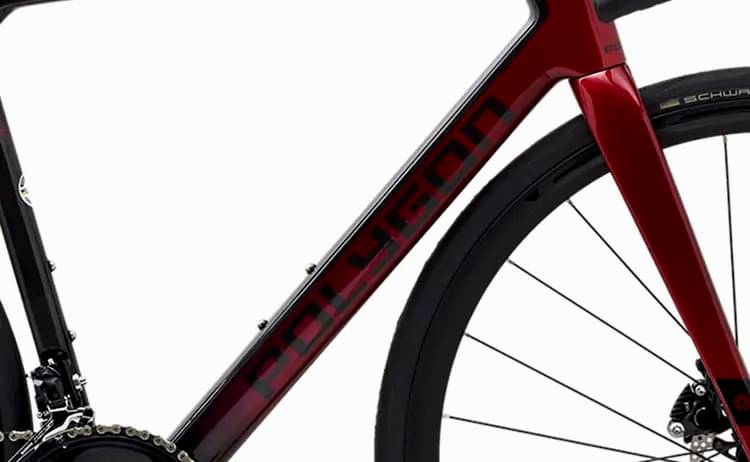

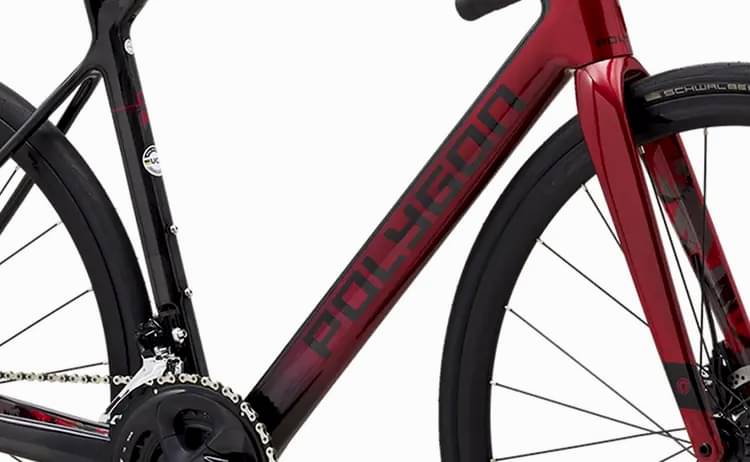

Frame
Frame
ACX All-Round Uci Approved, Internally Routed, Pressfit BB86, 12x142mm
Suspension Fork
Full Carbon, Taper 1-1/8" To 1-1/2", Flat Mount Disc Brake

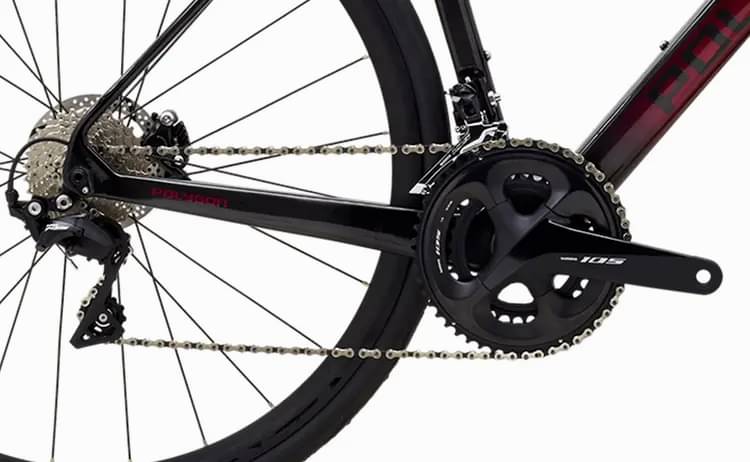

Drivetrain
Rear Derailleur
Shimano 105 RD-R7000-SS Direct Attach
Front Derailleur
Shimano 105 FD-R7000 Braze-On
Shift Levers
Shimano 105 ST-R7020, 2x11-Speed Dual Control Lever
Cassette
Shimano 105 CS-R7000 11-30T
Crank
Shimano 105 FC-R7000 50/34T
Bottom Bracket
SHIMANO BB-RS500-PB
Chain
KMC X11-1
Pedals
Not included
Wheels
Front Hub
Alloy Thru Axle 12x100mm 24H Sealed Bearings 6-Bolts
Rear Hub
Alloy Thru Axle 12x142mm 24H Sealed Bearings 6-Bolts, For Cassette Sprocket 11-Speed
Rims
Entity XL3 Disc, 19mm Inner Width, Tubeless Ready With Rim Tape, Tubeless valves sold separately*
Tires
Schwalbe One Addix 700x28C, Tube Type**
Brakes
Brakes
Hydraulic Disc
Brake Levers
Shimano 105 ST-R7020

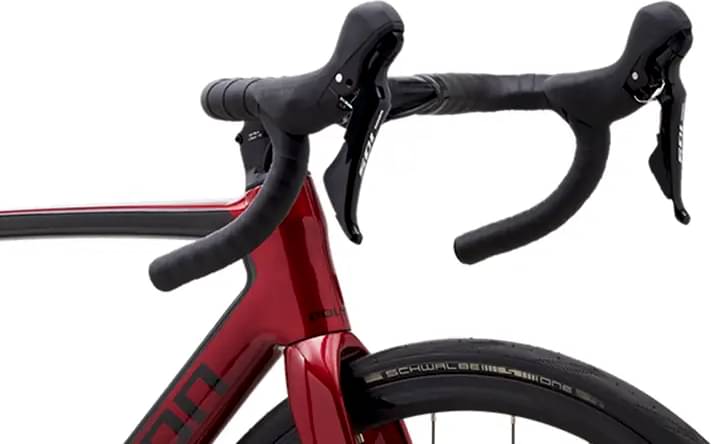

Cockpit
Stem
Entity Xpert Alloy, 31.8mm, 7°
Handlebar
Entity Xpert Alloy, 31.8mm
Headset
Integrated (Is) Sealed Bearing For Os Head Tube

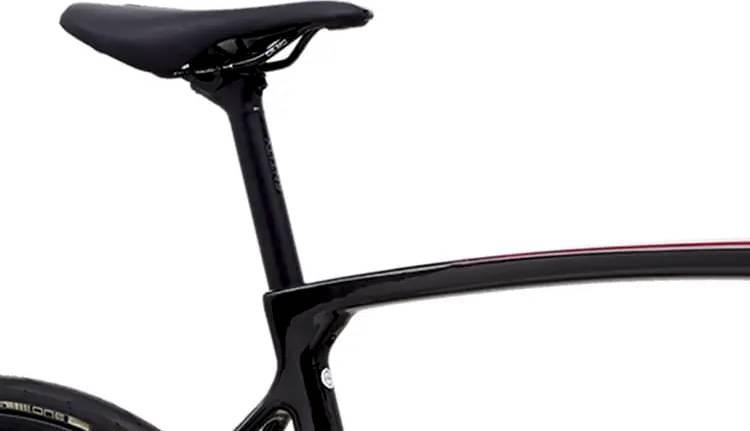

Seat
Saddle
Entity Flux2, Cr-Mo 7mm
Seatpost
Entity Xpert Alloy, 27.2 x 350mm, 15mm, Integrated Shape W/ Bolt
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.323 mm | 1.293 mm | 1.332 mm | 1.38 mm | 1.431 mm | 1.491 mm | 1.52 mm |
| Bottom Bracket Height | 271.5 mm | 271.5 mm | 271.5 mm | 274 mm | 274 mm | 276.5 mm | 276.5 mm |
| Front Center | 566 mm | 572 mm | 573 mm | 580 mm | 590 mm | 600 mm | 620 mm |
| Rake | 45 mm | 0 mm | 1 mm | 4 mm | 4 mm | 6 mm | 5 mm |
| Trail | 65 mm | 109 mm | 105 mm | 99 mm | 99 mm | 96 mm | 97 mm |
| Stack | 493.2 mm | 494.7 mm | 510.7 mm | 533.9 mm | 557.7 mm | 583.8 mm | 612.4 mm |
| Reach | 372.9 mm | 382.5 mm | 383.4 mm | 386.9 mm | 389.8 mm | 391.5 mm | 402.8 mm |
| Top Tube Length | 505 mm | 515 mm | 525 mm | 540 mm | 555 mm | 570 mm | 590 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 439.1 mm | 454.2 mm | 474.2 mm | 500 mm | 524.7 mm | 554.3 mm | 584.2 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 90 mm | 90 mm | 105 mm | 130 mm | 155 mm | 185 mm | 215 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 417 mm | 417 mm |
| Wheelbase | 969 mm | 975 mm | 977 mm | 984 mm | 995 mm | 1007 mm | 1027 mm |
| Bottom Bracket Drop | 72 mm | -72 mm | -72 mm | -70 mm | -70 mm | -67 mm | -67 mm |
| Standover Height | 717 mm | 729 mm | 748 mm | 775 mm | 801 mm | 832 mm | 862 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 139 cm | 153 cm | 160 cm | 165 cm | 170 cm | 174 cm | 184 cm |
| Rider Max Height | 156 cm | 162 cm | 167 cm | 172 cm | 177 cm | 187 cm | 193 cm |
About this model
Strattos S7 Disc belongs to the Polygon Strattos model. Polygon released 53 bikes variations of this model so far. You can easily view all of the Polygon Strattos bikes models from 2024, here.
Model range prices
Polygon Strattos S2 2024 is the cheapest bike model and costs 799$. Polygon Strattos S8 Disc 2024 is the most expensive one and costs 2599$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Race bikes
According to our math, the average price for a trustworthy Race bike is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2099$. Comparing the average cost of a Race bike to this one, you will see that Strattos S7 Disc price is 59.6% lower.
Average weight for Race bikes
Race bikes have an average weight of 6.82 kg (15.04 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Polygon Strattos S7 Disc it’s weighing 9.9 kg (21.83 lbs). At this weight, is much heavier than average. To sum up, it’s 45.16% heavier than the average weight of Race bikes.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components

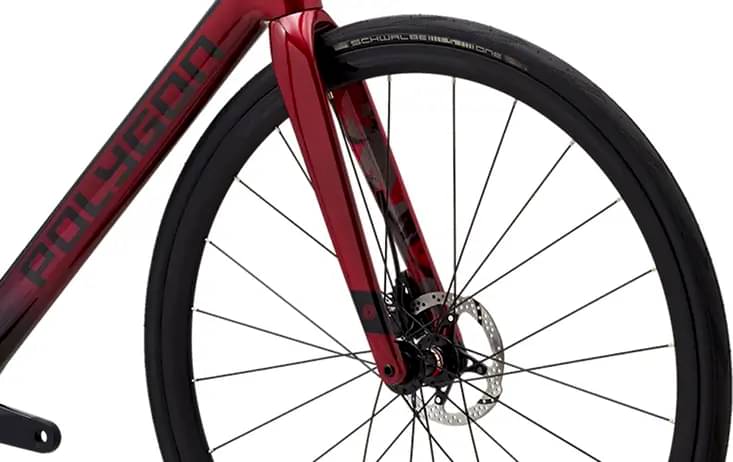

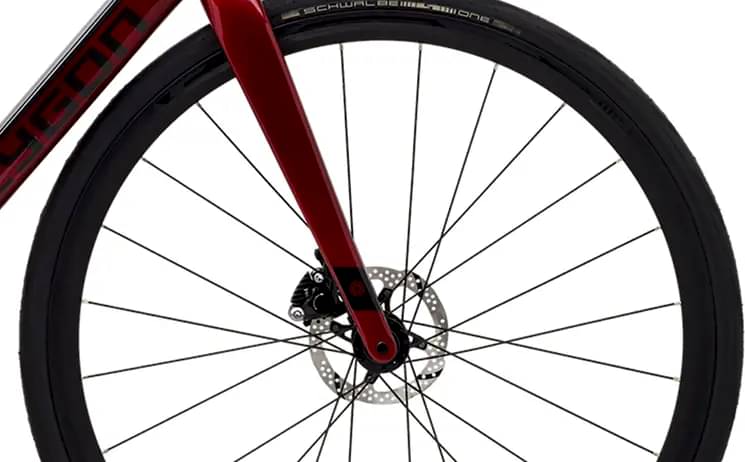

Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When it comes to wheels, the Strattos S7 Disc bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Strattos S7 Disc comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 7 sizes. They vary from 139 cm – 193 cm (4.56 ft – 6.33 ft). In conclusion, you won’t have a problem finding one that suits you.
