Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
144cm - 155cm
XS
153cm - 164cm
SM
162cm - 170cm
MD
168cm - 176cm
LG
174cm - 182cm
XL
179cm - 187cm
XXL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
carbon
Suspension Fork
ACX ALL-ROUND UCI APPROVED
Rear Shock
-
Drivetrain
Rear Derailleur
SHIMANO 105 RD-R7000-SS DIRECT ATTACH
Shift Levers
SHIMANO 105 ST-R7020, 2x11-SPEED DUAL CONTROL LEVER
Cassette
SHIMANO 105 CS-R7000 11-30T
Crank
SHIMANO 105 FC-R7000 50/34T, CRANK ARM: 170mm (XXS-L), 172.5mm (XL-XXL)
Bottom Bracket
SHIMANO BB-RS500-PB
Chain
KMC X11-1
Pedals
-
Wheels
Front Hub
F: ALLOY THRU AXLE 12x100mm 24H SEALED BEARINGS 6-BOLTS / R: ALLOY THRU AXLE 12x142mm 24H SEALED BEARINGS 6-BOLTS
Rear Hub
F: ALLOY THRU AXLE 12x100mm 24H SEALED BEARINGS 6-BOLTS / R: ALLOY THRU AXLE 12x142mm 24H SEALED BEARINGS 6-BOLTS
Rims
622-19 24H FOR TYRE 622-28/62 DISC TUBELESS READY
Tires
PERFORMANCE TIRE 700x28C
Brakes
Brakes
SHIMANO 105 BR-R7070 HYDRAULIC
Brake Levers
SHIMANO 105 ST-R7020
Cockpit
Handlebar
ENTITY XPERT ALLOY, W: 400mm (XXS, XS, S) / 420mm (M, L) / 440mm (XL, XXL), BB: 31.8mm, R/D: 125mm, B/R: 70mm
Headset
ZERO STACK (ZS) SEALED BEARING FOR OS HEAD TUBE, IS 52/28.6 | IS 52/40
Seat
Saddle
ENTITY FLUX2, Cr-Mo Ø 7mm
Seatpost
ENTITY XPERT ALLOY, 27.2 X 350mm, Offset: 15mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.32 mm | 1.29 mm | 1.33 mm | 1.38 mm | 1.43 mm | 1.48 mm | 1.52 mm |
| Bottom Bracket Height | 271.5 mm | 271.5 mm | 271.5 mm | 274 mm | 274 mm | 276.5 mm | 276.5 mm |
| Front Center | 566 mm | 572 mm | 573 mm | 590 mm | 590 mm | 600 mm | 620 mm |
| Rake | 45 mm | 45 mm | 45 mm | 55 mm | 45 mm | 45 mm | 46 mm |
| Trail | 65 mm | 62 mm | 59 mm | 45 mm | 56 mm | 56 mm | 55 mm |
| Stack | 498.3 mm | 499.8 mm | 515.8 mm | 539 mm | 562.8 mm | 588.9 mm | 617.5 mm |
| Reach | 378 mm | 387.6 mm | 388.5 mm | 392 mm | 394.9 mm | 396.6 mm | 407.1 mm |
| Top Tube Length | 510.1 mm | 520.1 mm | 530.1 mm | 545.1 mm | 560.1 mm | 575.1 mm | 595.1 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 439.1 mm | 454.2 mm | 474.2 mm | 500 mm | 524.7 mm | 554.3 mm | 584.2 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 90 mm | 90 mm | 105 mm | 130 mm | 155 mm | 185 mm | 215 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 422 mm | 422 mm |
| Wheelbase | 974 mm | 980 mm | 982 mm | 1000 mm | 1000 mm | 1013 mm | 1032 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 70 mm | 70 mm | 67 mm | 67 mm |
| Standover Height | 722 mm | 734 mm | 753 mm | 780 mm | 806 mm | 837 mm | 867 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 144 cm | 153 cm | 162 cm | 168 cm | 174 cm | 179 cm | 185 cm |
| Rider Max Height | 155 cm | 164 cm | 170 cm | 176 cm | 182 cm | 187 cm | 195 cm |
About this model

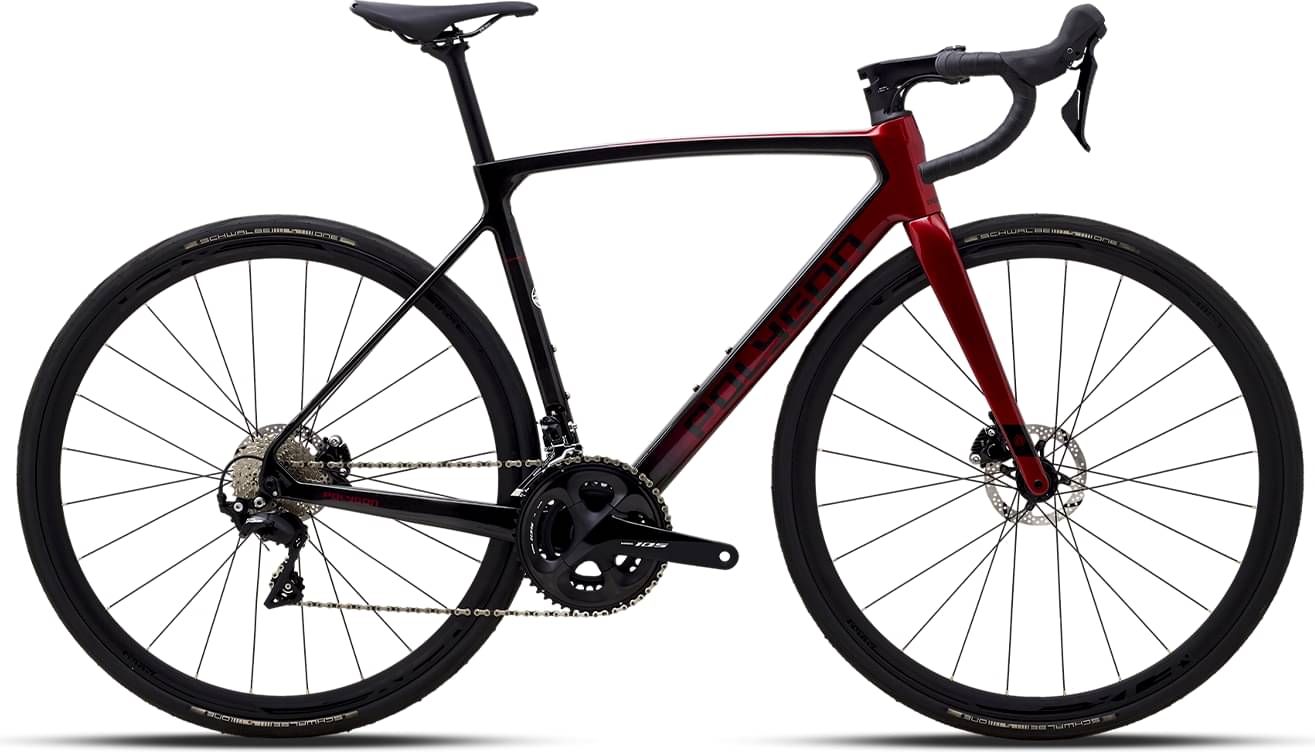

STRATTOS S7D is a Polygon Strattos model. Polygon launched 46 bikes of this model so far. You can easily view all of the Polygon Strattos bikes models from 2023, here.
Model range prices
Polygon STRATTOS S2 2023 is the cheapest bike model and costs 569$. Polygon Strattos S8 Disc 2023 is the most expensive one and costs 2599$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Race bikes
According to our math, the average price for a trustworthy Race bike is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Polygon STRATTOS S7D price was 1699$. If we compare this with the average Race bike cost we notice that the price is 97.17% lower.
STRATTOS S7D components
Fork material
STRATTOS S7D has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The STRATTOS S7D 2023 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The STRATTOS S7D comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
STRATTOS S7D comes in 7 sizes, that range from 144 cm – 195 cm (4.72 ft – 6.4 ft). In short, you can easily find one that suits you.
