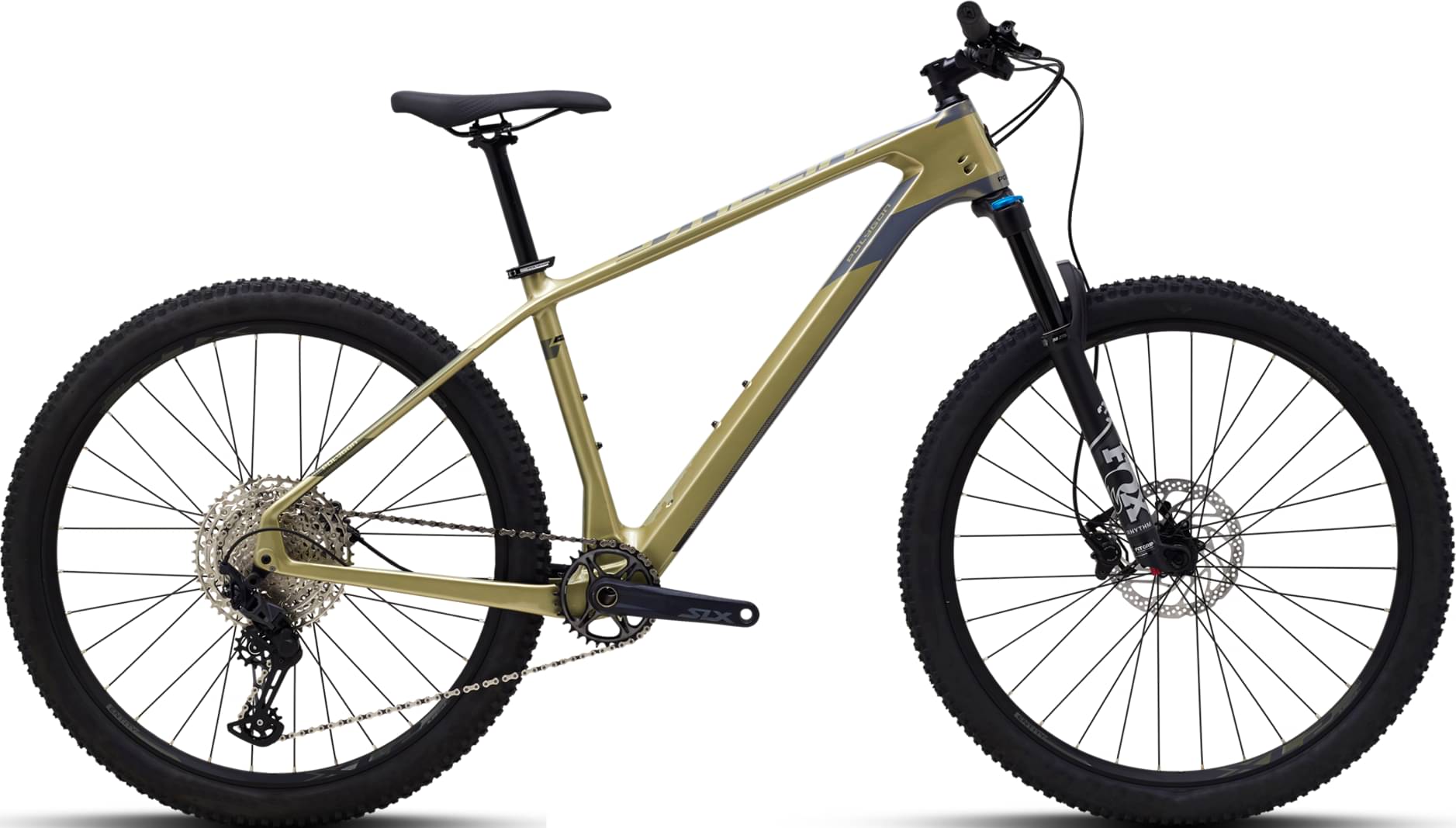

Polygon SYNCLINE C5 2022
2022 Mountain
Estimate price |
1,799$
Weight | 11.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 120mm -
Fork Fox Rhythm Float 32
-
Groupset SLX -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ACX XC PERFORMANCE
Suspension Fork
FOX 32 RHYTHM, 120mm
Rear Shock
-
Drivetrain
Rear Derailleur
SHIMANO SLX RD-M7100-SGS DIRECT ATTACH
Shift Levers
SHIMANO SLX SL-M7100-R 12-SPEED TRIGGER
Cassette
SHIMANO DEORE CS-M6100 12-SPEED 10-51T MICRO SPLINE
Crank
SHIMANO SLX FC-M7100-1 32T 2-PIECE-CRANK
Bottom Bracket
SHIMANO BB-MT500-PA
Chain
KMC NEW X-12
Pedals
Alloy Flat Pedal
Wheels
Front Hub
Shimano HB-MT400, Thru Axle 15x110mm, 32h Center-Lock
Rear Hub
Shimano FH-MT400, Thru Axle 12x148mm, 32h Center-Lock
Rims
584-30 / 622-30 32H FOR TYRE 584 / 622-54/76 TUBELESS READY
Tires
WTB TRAIL BOSS TIRE, 27.5x2.25 / 29x2.25
Brakes
Brakes
SHIMANO MT400 HYDRAULIC DISC BRAKE
Brake Levers
SHIMANO MT400 HYDRAULIC DISC BRAKE
Disk Rotors
FRONT:180mm REAR:160mm CENTER-LOCK
Cockpit
Stem
ENTITY XPERT, ALLOY
Handlebar
ENTITY XPERT, W: 740mm, BB: 31.8mm, R/D: 12mm, B: 9degree
Headset
INTEGRATED W/ SEALED BEARING FOR TAPER HEAD TUBE, IS 42/28.6 | IS 52/40
Seat
Saddle
ENTITY VOID SADDLE
Seatpost
ENTITY XPERT, 27.2x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.43 mm | 1.48 mm | 1.45 mm | 1.43 mm |
| Bottom Bracket Height | 308.5 mm | 308.5 mm | 307.5 mm | 307.5 mm | 307.5 mm |
| Front Center | 686 mm | 714 mm | 722 mm | 750 mm | 777 mm |
| Rake | 37 mm | 37 mm | 44 mm | 44 mm | 44 mm |
| Trail | 111 mm | 111 mm | 111 mm | 111 mm | 111 mm |
| Stack | 593.6 mm | 612 mm | 630.2 mm | 648.6 mm | 667 mm |
| Reach | 407 mm | 427 mm | 427 mm | 447 mm | 467 mm |
| Top Tube Length | 566 mm | 591.6 mm | 594.7 mm | 618 mm | 646.15 mm |
| Seat Tube Angle | 75.3 ° | 75.3 ° | 75.3 ° | 75.3 ° | 75.3 ° |
| Seat Tube Length | 380 mm | 420 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 120 mm | 100 mm | 120 mm | 140 mm |
| Chainstay Length | 422 mm | 422 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1103 mm | 1131 mm | 1146 mm | 1173 mm | 1201 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 687 mm | 726 mm | 727 mm | 760 mm | 776 mm |
| Front Travel | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 180 cm | 189 cm | 199 cm |
Model Overview
SYNCLINE C5 is part of the Polygon Syncline model. There are 11 bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Polygon SYNCLINE C2 2022 is the most affordable bike of this model and has a price of 1349$. On the other hand, Polygon SYNCLINE C5 2022, is the most expensive and costs 1799$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 1799$. In conclusion, this bike price is 53.53% lower than the price of the average Trail bike.
Trail bikes average weight
The average weight for Trail bikes is 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
a bit lighter than average, SYNCLINE C5 has a weight of 11.9 kg (26.23 lbs). To sum up, it’s 9.08% lighter than the average weight of Trail bikes.
Overview of components
Fork
Polygon SYNCLINE C5 2022 bike is equipped with the Fox Rhythm Float 32 fork, and has 120mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When leaving the production line, the SYNCLINE C5 model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The SYNCLINE C5 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Polygon SYNCLINE C5 bike has 5 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
