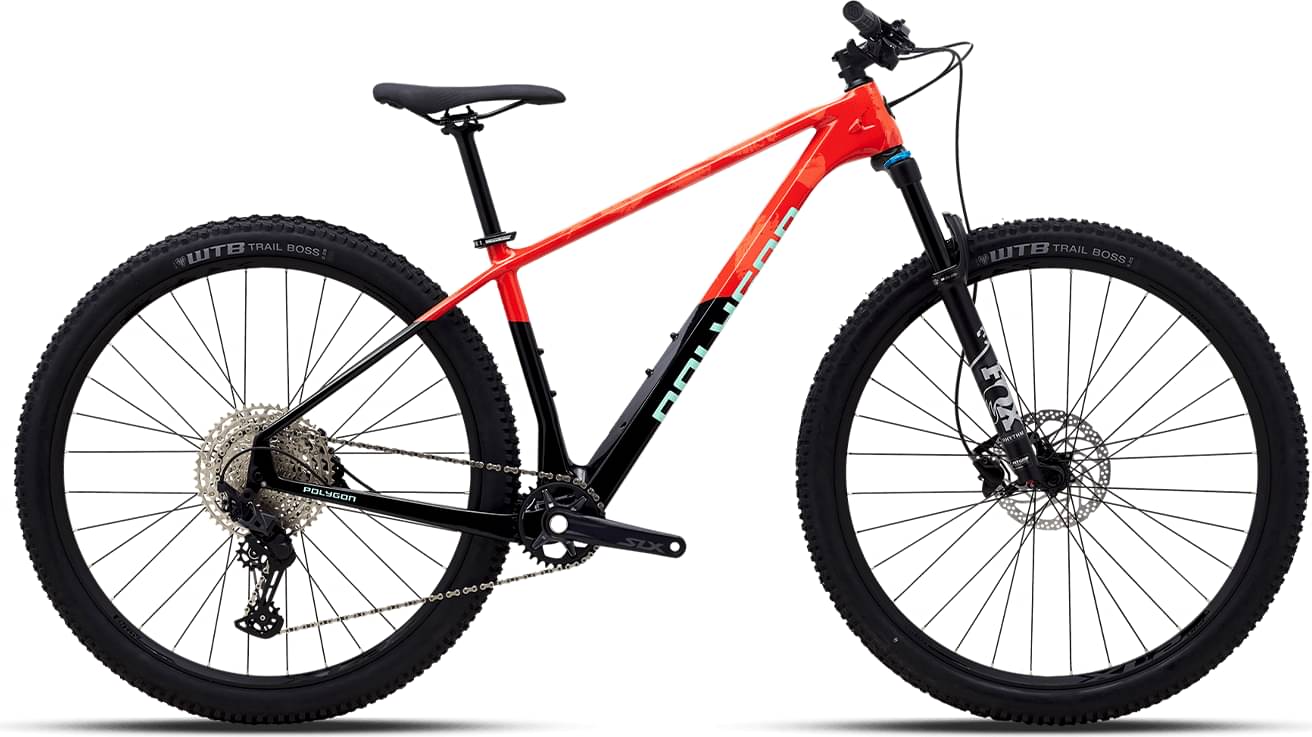

Polygon SYNCLINE C5 2023
2023 Mountain
Estimate price |
1,499$
Weight | 11.79 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 120mm -
Fork Fox Rhythm Float 32
-
Groupset SLX -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 165cm
MD
162cm - 175cm
MD
162cm - 175cm
LG
172cm - 185cm
LG
172cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
carbon
Suspension Fork
FOX 32 RHYTHM, 120mm
Rear Shock
-
Drivetrain
Rear Derailleur
SHIMANO SLX RD-M7100-SGS DIRECT ATTACH
Shift Levers
SHIMANO SLX SL-M7100-R 12-SPEED TRIGGER
Cassette
12 SPEED 11-51T
Crank
SHIMANO SLX FC-M7100-1 32T 2-PIECE-CRANK
Bottom Bracket
SHIMANO BB-MT500-PA
Chain
KMC NEW X-12
Pedals
ALLOY CAGE PEDAL W/ REFLECTOR
Wheels
Front Hub
Shimano HB-MT400, Thru Axle 15x110mm, 32h Center-Lock
Rear Hub
Novatec D462SB, 12x148mm 32h, Center Lock
Rims
584-30 / 622-30 32H FOR TYRE 584 / 622-54/76 TUBELESS READY
Tires
WTB TRAIL BOSS TIRE, 27.5x2.25 / 29x2.25
Brakes
Brakes
SHIMANO MT400 HYDRAULIC DISC BRAKE
Brake Levers
SHIMANO MT400 HYDRAULIC DISC BRAKE
Cockpit
Stem
Entity Xpert, Alloy 60mm
Handlebar
ENTITY XPERT, W: 740mm, BB: 31.8mm, R/D: 12mm, B: 9degree
Headset
INTEGRATED W/ SEALED BEARING FOR TAPER HEAD TUBE, IS 42/28.6 | IS 52/40
Seat
Saddle
ENTITY VOID SADDLE
Seatpost
ENTITY XPERT, 27.2x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD | LG | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.43 mm | 1.48 mm | 1.45 mm | 1.43 mm |
| Bottom Bracket Height | 308 mm | 308.5 mm | 307.5 mm | 307.5 mm | 304.5 mm |
| Front Center | 683 mm | 714 mm | 722 mm | 750 mm | 777 mm |
| Rake | 34 mm | 37 mm | 44 mm | 44 mm | 44 mm |
| Trail | 114 mm | 111 mm | 103 mm | 103 mm | 103 mm |
| Stack | 593.6 mm | 612 mm | 630.2 mm | 648.6 mm | 667 mm |
| Reach | 407 mm | 427 mm | 427 mm | 447 mm | 467 mm |
| Top Tube Length | 566 mm | 591.6 mm | 594.7 mm | 618 mm | 646.15 mm |
| Seat Tube Angle | 75.5 ° | 75.3 ° | 75.3 ° | 75.3 ° | 75.5 ° |
| Seat Tube Length | 380 mm | 420 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 120 mm | 100 mm | 120 mm | 140 mm |
| Chainstay Length | 425 mm | 422 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1103 mm | 1131 mm | 1146 mm | 1173 mm | 1201 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 687 mm | 726 mm | 727 mm | 760 mm | 776 mm |
| Front Travel | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 152 cm | 162 cm | 162 cm | 172 cm | 172 cm |
| Rider Max Height | 165 cm | 175 cm | 175 cm | 185 cm | 185 cm |
Model Overview
SYNCLINE C5 is a Polygon Syncline model. 11 bikes variations carry this model name so far. You can easily view all of the Polygon Syncline bikes models from 2023, here.
Model range prices
Polygon SYNCLINE C2 2023 is the most affordable bike of this model and has a price of 1049$. On the other hand, Polygon SYNCLINE C5 2023, is the most expensive and costs 1499$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Polygon released this model in 2023, its price was 1499$. Comparing this to the average Trail bike price, we see that the price is 84.26% lower.
Trail bikes average weight
Trail bikes have an average weight of 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 11.79 kg (25.99 lbs), Polygon bike is considerably lighter than average. To sum up, it’s 10.09% lighter than the average weight of Trail bikes.
Overview of components
Fork
The SYNCLINE C5 comes factory-installed with the Fox Rhythm Float 32 fork. This has a travel range of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When leaving the production line, the SYNCLINE C5 model has 27.5″ aluminum wheels. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 5 sizes. They vary from 152 cm – 185 cm (4.99 ft – 6.07 ft). In conclusion, finding one for you shouldn’t be a problem.
