Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 26" -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AL6 DIRT JUMP, FOR NUT TYPE 135mm O.L.D.
Suspension Fork
FOR 100mm TRAVEL (NOT INCLUDED)
Rear Shock
-
Drivetrain
Rear Derailleur
-
Shift Levers
-
Cassette
-
Crank
-
Bottom Bracket
BSA THREADED 73mm (NOT INCLUDED)
Chain
-
Wheels
Tires
26"x2.35" max (NOT INCLUDED)
Brakes
Brakes
-
Cockpit
Stem
-
Handlebar
-
Seat
Saddle
-
Seatpost
30.9mm (NOT INCLUDED)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 12.5" |
|---|---|
| Stack Reach Ratio | 1.354 mm |
| Bottom Bracket Height | 327 mm |
| Front Center | 662 mm |
| Rake | 42 mm |
| Trail | 80 mm |
| Stack | 564.27 mm |
| Reach | 416.7 mm |
| Top Tube Length | 600 mm |
| Seat Tube Angle | 72 ° |
| Head Tube Angle | 70 ° |
| Head Tube Length | 120 mm |
| Chainstay Length | 385 mm |
| Wheelbase | 1047 mm |
| Bottom Bracket Drop | 12 mm |
| Standover Height | 651 mm |
| Wheels | 26" |
| Rider Min Height | 120 cm |
About this model

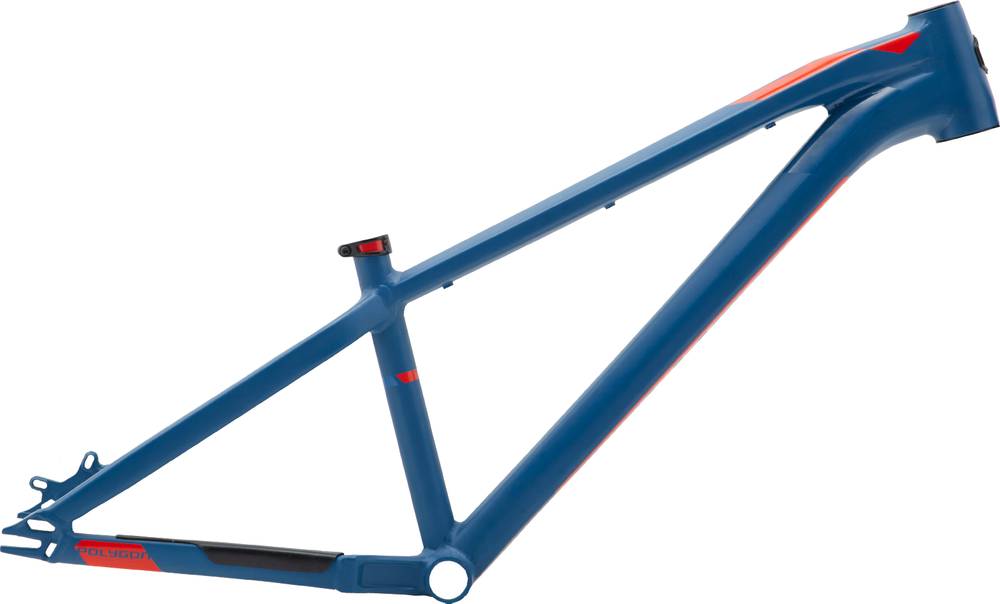

TRID Frameset is a Polygon Trid model. Polygon released 35 frames variations of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Polygon TRID CR Frameset 2019 is the most economical model, with a starting price of 399$. Polygon TRID ZZ Frameset 2019 on the other hand costs 799$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Dirt Jump frames average price
According to our math, the average price for a trustworthy Dirt Jump frame is 491$. However, this doesn’t mean that if you spend less money on a Dirt Jump frame, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
This frame was released in 2019 and its price was 399$. If we compare this with the average Dirt Jump frame cost we notice that the price is 23.06% smaller.
