Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 26" -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AL6 DIRT JUMP, FOR NUT TYPE 135mm O.L.D.
Suspension Fork
FOR 100mm TRAVEL (NOT INCLUDED)
Rear Shock
-
Drivetrain
Rear Derailleur
-
Shift Levers
-
Cassette
-
Crank
-
Bottom Bracket
BSA THREADED 73mm (NOT INCLUDED)
Chain
-
Wheels
Tires
26"x2.35" max (NOT INCLUDED)
Brakes
Brakes
-
Cockpit
Stem
-
Handlebar
-
Seat
Saddle
-
Seatpost
30.9mm (NOT INCLUDED)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | All Size |
|---|---|
| Stack Reach Ratio | 1.354 mm |
| Bottom Bracket Height | 327 mm |
| Front Center | 662 mm |
| Rake | 42 mm |
| Trail | 80 mm |
| Stack | 564.27 mm |
| Reach | 416.7 mm |
| Top Tube Length | 600 mm |
| Seat Tube Angle | 72 ° |
| Head Tube Angle | 70 ° |
| Head Tube Length | 120 mm |
| Chainstay Length | 385 mm |
| Wheelbase | 1047 mm |
| Bottom Bracket Drop | 12 mm |
| Standover Height | 651 mm |
| Wheels | 26" |
| Rider Min Height | 120 cm |
Model Overview

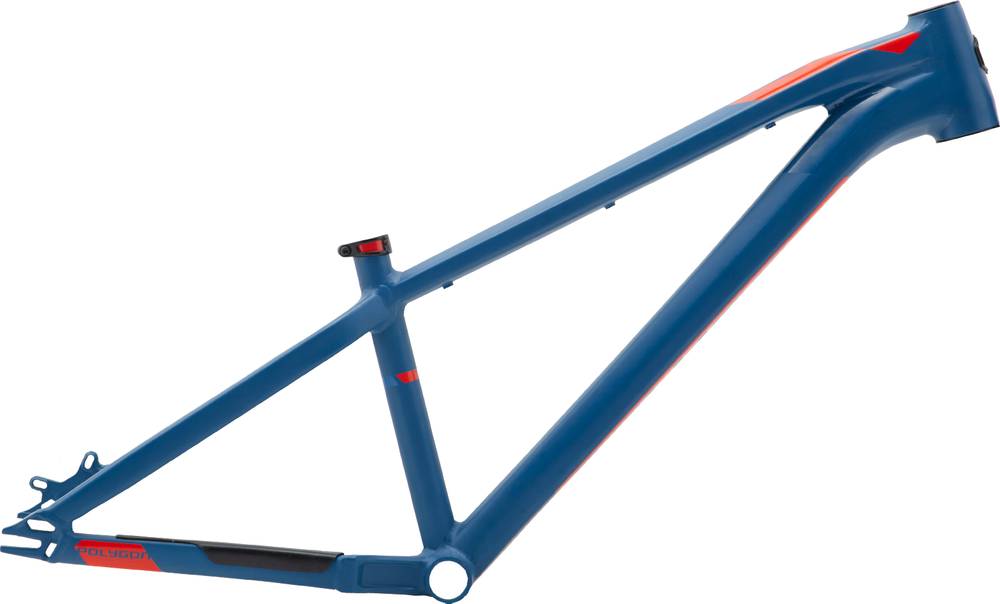

TRID Frameset is part of the Polygon Trid model. There are 35 frames that carry this model name. Take a sneak peek at all Polygon Trid frames models from 2020, by clicking here.
Model range prices
Polygon TRID Frameset 2020 is the most affordable frame of this model and has a price of 399$. On the other hand, Polygon TRID ZZ Frameset 2020, is the most expensive and costs 799$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Dirt Jump frames
Our math shows that the average cost of a dependable Dirt Jump frame is 491$. However, even though the average price of a Dirt Jump frame is lower, you might still be able to get a top-quality frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
This frame was released in 2020 and its price was 399$. If we compare this with the average Dirt Jump frame cost we notice that the price is 23.06% lower.
