Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 26" -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

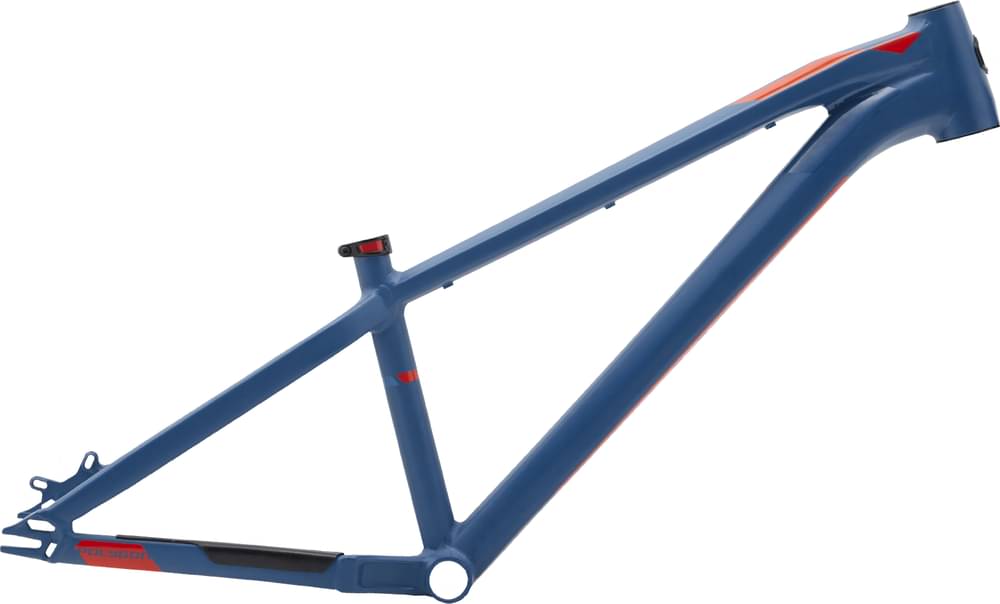

AL6 DIRT JUMP, FOR NUT TYPE 135mm O.L.D.
Suspension Fork
FOR 100mm TRAVEL (NOT INCLUDED)
Rear Shock
-
Drivetrain
Rear Derailleur
-
Shift Levers
-
Cassette
-
Crank
-
Bottom Bracket
BSA THREADED 73mm (NOT INCLUDED)
Chain
-
Wheels
Tires
26"x2.35" max (NOT INCLUDED)
Brakes
Brakes
-
Cockpit
Stem
-
Handlebar
-
Seat
Saddle
-
Seatpost
30.9mm (NOT INCLUDED)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | All Size |
|---|---|
| Stack Reach Ratio | 1.354 mm |
| Bottom Bracket Height | 327 mm |
| Front Center | 662 mm |
| Rake | 42 mm |
| Trail | 80 mm |
| Stack | 564.27 mm |
| Reach | 416.7 mm |
| Top Tube Length | 600 mm |
| Seat Tube Angle | 72 ° |
| Head Tube Angle | 70 ° |
| Head Tube Length | 120 mm |
| Chainstay Length | 385 mm |
| Wheelbase | 1047 mm |
| Bottom Bracket Drop | 12 mm |
| Standover Height | 651 mm |
| Wheels | 26" |
| Rider Min Height | 120 cm |
About this model
TRID Frameset is a Polygon Trid model. 35 frames variations carry this model name so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Polygon TRID Frameset 2021 is the cheapest frame model and costs 399$. Polygon TRID ZZ Frameset 2021 is the most expensive one and costs 799$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Dirt Jump frames
According to our calculations, the average cost of a Dirt Jump frame that is reliable is 491$. However, even if your budget is less than the average, you might still be able to get a top-quality Dirt Jump frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Polygon TRID Frameset price was 399$. In conclusion, this frame price is 23.06% lower than the price of the average Dirt Jump frame.
