Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame aluminium -
Wheels 26" -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AL6 DIRT JUMP, FOR NUT TYPE 135mm O.L.D.
Suspension Fork
FOR 100mm TRAVEL (NOT INCLUDED)
Rear Shock
-
Drivetrain
Rear Derailleur
-
Shift Levers
-
Cassette
-
Crank
-
Bottom Bracket
BSA THREADED 73mm (NOT INCLUDED)
Chain
-
Wheels
Tires
26"x2.35" max (NOT INCLUDED)
Brakes
Brakes
-
Cockpit
Stem
-
Handlebar
-
Seat
Saddle
-
Seatpost
30.9mm (NOT INCLUDED)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | All Size |
|---|---|
| Stack Reach Ratio | 1.354 mm |
| Bottom Bracket Height | 327 mm |
| Front Center | 662 mm |
| Rake | 42 mm |
| Trail | 80 mm |
| Stack | 564.27 mm |
| Reach | 416.7 mm |
| Top Tube Length | 600 mm |
| Seat Tube Angle | 72 ° |
| Head Tube Angle | 70 ° |
| Head Tube Length | 120 mm |
| Chainstay Length | 385 mm |
| Wheelbase | 1047 mm |
| Bottom Bracket Drop | 12 mm |
| Standover Height | 651 mm |
| Wheels | 26" |
| Rider Min Height | 120 cm |
About this model

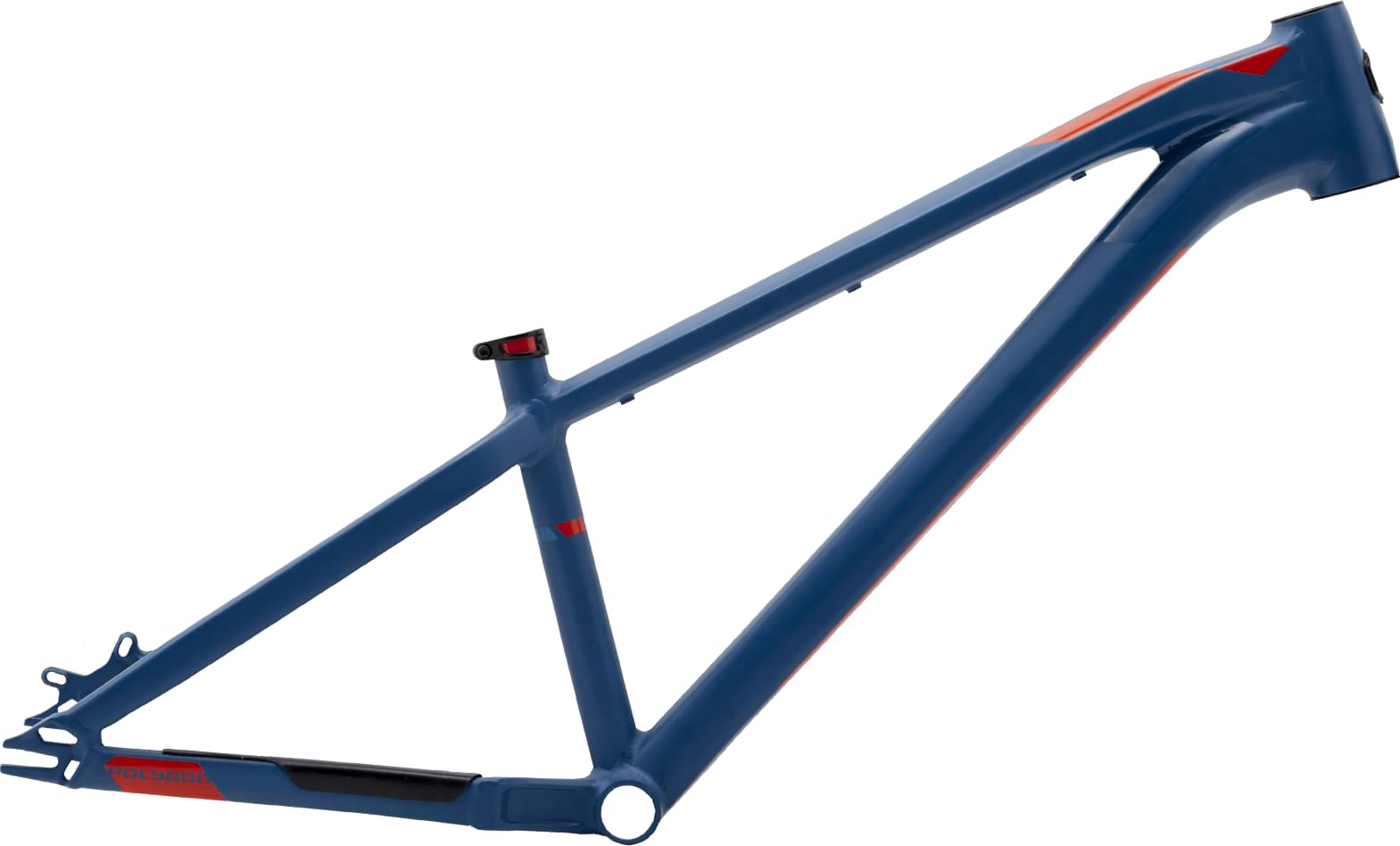

TRID Frameset completes the Polygon Trid model. Polygon launched 35 frames of this model so far. Take a sneak peek at all Polygon Trid frames models from 2022, by clicking here.
Model range prices
Polygon TRID Frameset 2022 is the cheapest frame model and costs 399$. Polygon TRID ZZ Frameset 2022 is the most expensive one and costs 799$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Dirt Jump frames average price
Our math shows that the average cost of a dependable Dirt Jump frame is 491$. However, you could also get a good Dirt Jump frame even if you pay a lower amount than the average price. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 399$. In conclusion, this frame price is 23.06% smaller than the price of the average Dirt Jump frame.
