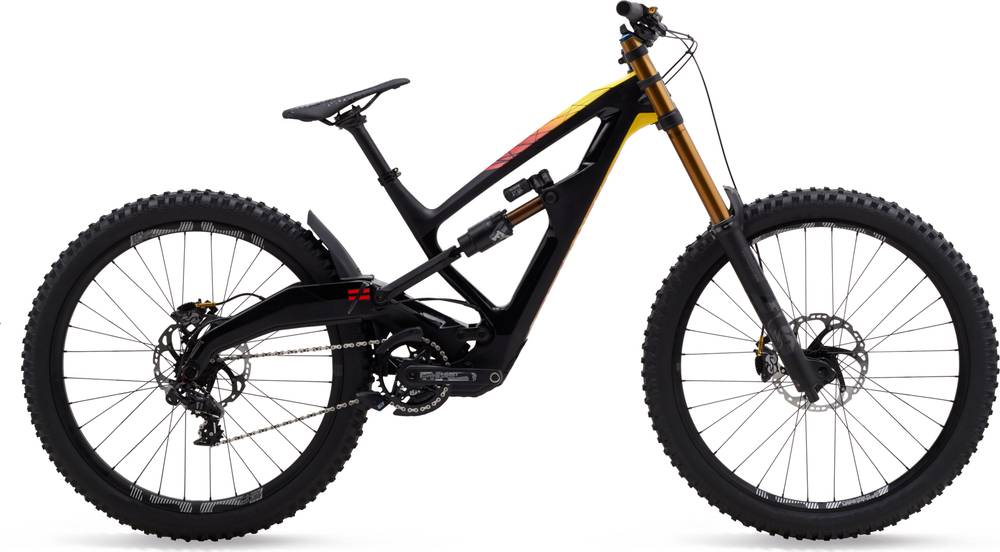

Polygon XQUARONE DH9 2020
2020 Mountain
Estimate price |
5,299$
Weight | 16.12 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Rear 218mm -
Fork Fox Factory Float 40 -
Groupset X01, e*thirteen LG1 Plus -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 165cm
MD
162cm - 175cm
LG
172cm - 185cm
XL
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NAILD R3ACT 2PLAY SUSPENSION ACX, 218MM TRAVEL, SUPER BOOST 157MM O.L.D.
Suspension Fork
FOX FACTORY 40 FLOAT
Rear Shock
FOX FACTORY FLOAT X2 (225x75mm, Trunnion & W/O Hardware)
Drivetrain
Rear Derailleur
SRAM X01 DH 7-SPEED
Shift Levers
SRAM X01 DH 7-SPEED
Cassette
E13 7-SPEED 9-21T DIRECT MOUNT CASSETTE
Crank
E13 LG1+ 36T BOOST, 165MM
Bottom Bracket
E13 BB92 PRESSFIT
Chain
KMC X-11
Wheels
Rims
E13 LG1+
Tires
SCHWALBE MAGIC MARY 27.5”X2.50”
Brakes
Brakes
SHIMANO SAINT BR-M820, METAL PAD W/ FIN
Cockpit
Stem
RACE FACE ATLAS 35 DIRECT MOUNT
Handlebar
RACE FACE ATLAS 35
Seat
Saddle
ENTITY ASSAULT
Seatpost
ENTITY, 30.9MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.488 mm | 1.4 mm | 1.344 mm | 1.274 mm |
| Bottom Bracket Height | 350.75 mm | 350.75 mm | 350.75 mm | 350.75 mm |
| Front Center | 758 mm | 783 mm | 813 mm | 838 mm |
| Rake | 52 mm | 52 mm | 52 mm | 52 mm |
| Trail | 123 mm | 123 mm | 123 mm | 123 mm |
| Stack | 595 mm | 595 mm | 605 mm | 605 mm |
| Reach | 400 mm | 425 mm | 450 mm | 475 mm |
| Top Tube Length | 577.38 mm | 602.38 mm | 633.51 mm | 658.51 mm |
| Seat Tube Angle | 73.4 ° | 73.4 ° | 73.1 ° | 73.1 ° |
| Seat Tube Length | 400 mm | 400 mm | 400 mm | 400 mm |
| Head Tube Angle | 63 ° | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 97.52 mm | 97.52 mm | 108.75 mm | 108.75 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1198 mm | 1223 mm | 1253 mm | 1278 mm |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm | 6 mm |
| Standover Height | 703 mm | 703 mm | 703 mm | 703 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 152 cm | 162 cm | 172 cm | 182 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 195 cm |
About this model
XQUARONE DH9 belongs to the Polygon Xquarone model. There are 36 bikes that carry this model name. You can easily view all of the Polygon Xquarone bikes models from 2020, here.
Model range prices
The most economical model, the Polygon XQUARONE DH8 2020 has a starting price of 4299$. Polygon XQUARONE EX9 SRAM XX1 2020 on the other hand is the most expensive at 6999$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Downhill bikes average price
If you want to purchase a solid Downhill bike, it is important to know that the average cost is 3391$. However, this doesn’t mean that if you spend less money on a Downhill bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Polygon released this model in 2020, its price was 5299$. Doing a quick comparison, we notice that XQUARONE DH9 price is 56.27% more expensive than the average cost of a Downhill bike.
Average weight for Downhill bikes
Downhill bikes have an average weight of 15.89 kg (35.03 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 16.12 kg (35.54 lbs), Polygon bike is slightly heavier than average. In other words, this model is 1.45% heavier than the average Downhill bike.
XQUARONE DH9 components
Fork
This bike has the Fox Factory Float 40 fork installed. The fork’s travel is mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The XQUARONE DH9 has a rear shock with a travel of 218mm. The model FOX FACTORY FLOAT X2 (225x75mm is the one installed in this bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When it comes to wheels, the XQUARONE DH9 bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Polygon XQUARONE DH9 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 152 cm – 195 cm (4.99 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
