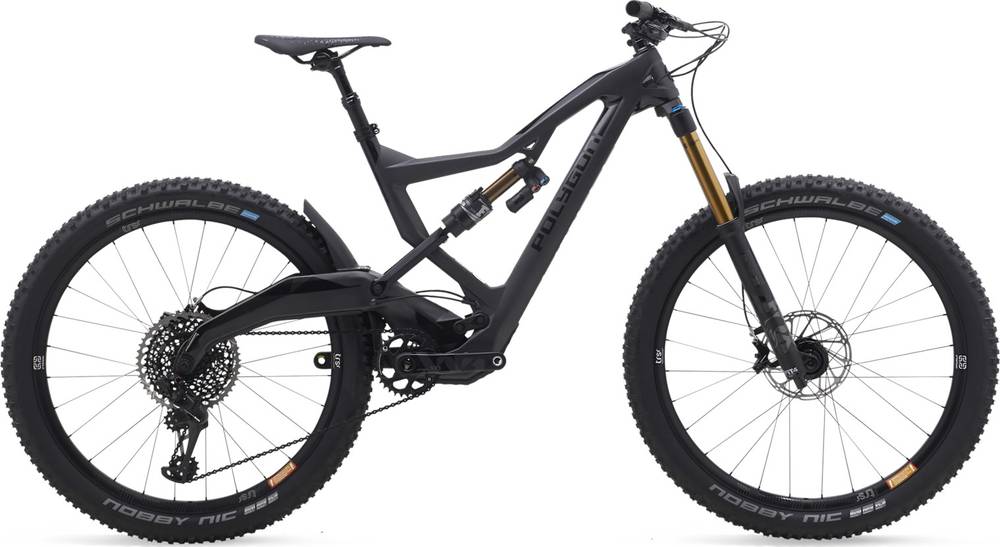

Polygon Xquarone EX 9 2019
2019 Mountain
Estimate price |
7,999$
Weight | 13.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 180mm -
Travel Rear 180mm -
Fork Fox Factory Float 36
-
Groupset XX1 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX Factory 36 Float, Boost
Rear Shock
FOX Factory Float X2
Drivetrain
Rear Derailleur
SRAM XX1 Eagle, 12-speed
Front Derailleur
None
Shift Levers
SRAM XX1 Eagle, 12-speed
Cassette
SRAM XG 1295 Eagle, 12-speed, 10-50 tooth
Crank
SRAM XX1 Eagle, 12-speed, Boost,175mm
Bottom Bracket
SRAM DUB, pressfit
Chain
SRAM XX1 Eagle, 12-speed
Chain Guide
None
Pedals
None
Wheels
Front Hub
e*thirteen TRS Race Carbon Boost wheelset
Rear Hub
e*thirteen TRS Race Carbon Boost wheelset
Rims
e*thirteen TRS Race Carbon Boost wheelset
Spokes
e*thirteen TRS Race Carbon Boost wheelset
Tires
Schwalbe Nobby Nic, 27.5"x2.6"
Brakes
Brakes
SRAM Guide Ultimate
Brake Levers
SRAM Guide Ultimate
Cockpit
Stem
Race Face Turbine R, alloy, 50mm length, 0 rise
Handlebar
Race Face Next R, 35mm bore, carbon, 780mm width, 20mm rise
Headset
FSA Orbit, C-40/48-CF-ACB
Seat
Saddle
Entity Assault with Cr-Mo rails
Seatpost
KS LEV Sio, dropper, 150mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.32 mm | 1.3 mm | 1.31 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm |
| Stack | 591 mm | 604.7 mm | 622.9 mm |
| Reach | 448.8 mm | 464.8 mm | 474.4 mm |
| Top Tube Length | 623 mm | 643 mm | 668 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 420 mm | 465 mm | 485 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 90 mm | 105 mm | 125 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1182 mm | 1204 mm | 1222 mm |
| Bottom Bracket Drop | 10 mm | 10 mm | 10 mm |
| Standover Height | 730 mm | 762 mm | 779 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
Xquarone EX 9 belongs to the Polygon Xquarone model. Polygon launched 36 bikes of this model so far. You can easily view all of the Polygon Xquarone bikes models from 2019, here.
Model range prices
Polygon XQUARONE EX7 SHIMANO SLX 2019 is the most affordable bike of this model and has a price of 4299$. On the other hand, Polygon Xquarone EX 9 2019, is the most expensive and costs 7999$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro bikes average price
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2019 and its price was 7999$. Comparing the average cost of an Enduro bike to this one, you will see that Xquarone EX 9 price is 122.26% higher.
Average weight for Enduro bikes
Enduro bikes weigh an average of 14.27 kg (31.46 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
a bit lighter than average, Xquarone EX 9 has a weight of 13.5 kg (29.76 lbs). In conclusion, the average Enduro bike weighs 5.7% more than Xquarone EX 9.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 36 model. The travel on this model is 180mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Polygon Xquarone EX 9 bike has the FOX Factory Float X2 model installed, and has a travel of 180mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The Xquarone EX 9 2019 bike is equipped with 27.5″ carbon wheels when leaving the factory. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Polygon Xquarone EX 9 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Polygon Xquarone EX 9 bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, you can easily find one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
