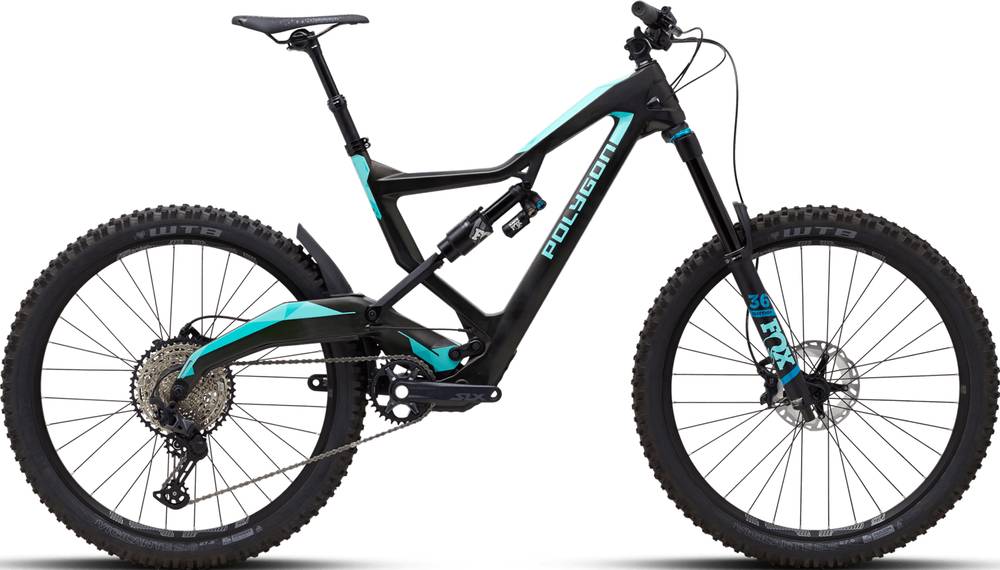

Polygon XQUARONE EX7 SHIMANO SLX 2020
2020 Mountain
Estimate price |
4,299$
Weight | 13.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 180mm -
Travel Rear 180mm -
Fork Fox Rhythm Float 36
-
Groupset SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
162cm - 175cm
LG
172cm - 185cm
XL
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NAILD R3ACT 2PLAY SUSPENSION ACX, 180MM TRAVEL, BOOST
Suspension Fork
FOX 36 RHYTHM, BOOST 15X110MM, 180MM (27.5”) TRAVEL
Rear Shock
FOX PERFORMANCE FLOAT X2 E2E:230X65MM
Drivetrain
Rear Derailleur
SHIMANO SLX RD-M7100 12-SPEED DA
Shift Levers
SHIMANO SLX SL-M7100 12-SPEED
Cassette
SHIMANO SLX CS-M7100 12-SPEED 10-51T
Crank
SHIMANO SLX FC-M7100 12-SPEED, 32T, 175MM
Bottom Bracket
SHIMANO BB PRESSFIT
Chain
SHIMANO 12SP
Wheels
Rims
E13 TRS W/ SHIMANO SLX HUB
Tires
WTB VIGILANTE 27.5”X2.6
Brakes
Brakes
SHIMANO SLX BR-M7120
Cockpit
Stem
RACEFAE AEFFECT R35, ALLOY E:50MM R:0DEG BB:35MM
Handlebar
RACEFACE AEFFECT R35, ALLOY W:780MM R:20MM BB:35MM
Seat
Saddle
ENTITY XTENT
Seatpost
KS LEV ISO, T:125MM (M), 150MM (L-XL), 30.9MM, OFFSET:18MM,
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.32 mm | 1.3 mm | 1.31 mm |
| Bottom Bracket Height | 354 mm | 354 mm | 354 mm |
| Front Center | 754 mm | 777 mm | 794 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 110 mm | 110 mm | 110 mm |
| Stack | 591 mm | 604.7 mm | 622.9 mm |
| Reach | 448.8 mm | 464.8 mm | 474.4 mm |
| Top Tube Length | 623 mm | 643 mm | 668 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 420 mm | 465 mm | 485 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 90 mm | 105 mm | 125 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1182 mm | 1204 mm | 1222 mm |
| Bottom Bracket Drop | 3 mm | 3 mm | 3 mm |
| Standover Height | 730 mm | 762 mm | 779 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 162 cm | 172 cm | 182 cm |
| Rider Max Height | 175 cm | 185 cm | 195 cm |
Model Overview
XQUARONE EX7 SHIMANO SLX completes the Polygon Xquarone model. 36 bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Polygon XQUARONE DH8 2020 is the most affordable bike of this model and has a price of 4299$. On the other hand, Polygon XQUARONE EX9 SRAM XX1 2020, is the most expensive and costs 6999$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro bikes average price
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4299$. In conclusion, this bike price is 19.45% higher than the price of the average Enduro bike.
Average weight for Enduro bikes
If we make a quick analysis of the average weight of an Enduro bike, we get 14.27 kg (31.46 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 13.5 kg (29.76 lbs), Polygon bike is a bit lighter than average. To sum up, it’s 5.7% lighter than the average weight of Enduro bikes.
Overview of components
Fork
The fork installed on this bike is the Fox Rhythm Float 36 model. The travel on this model is 180mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the FOX PERFORMANCE FLOAT X2 E2E:230X65MM rear shock model, which has a travel of 180mm. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The XQUARONE EX7 SHIMANO SLX 2020 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Polygon XQUARONE EX7 SHIMANO SLX is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 162 cm – 195 cm (5.31 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Polygon XQUARONE EX7 SHIMANO SLX includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
