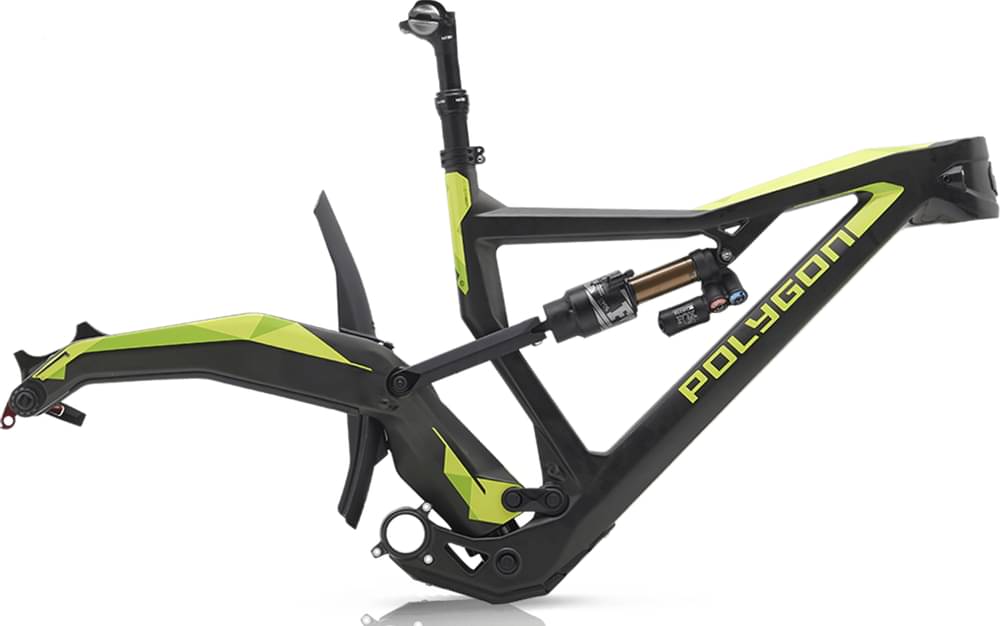

Polygon XQUARONE EX9 Frameset 2018
2018 Mountain
Estimate price |
2,999$
Weight | 3.8 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Rear 180mm -
Suspension Full
Sizing
Recommended size guide.
MD
162cm - 175cm
LG
172cm - 185cm
XL
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NAILD R3ACT 2PLAY SUSPENSION ACX, 180mm TRAVEL, FOR THRU AXLE BOOST 12x148mm
Suspension Fork
FOR 180mm TRAVEL (NOT INCLUDED)
Rear Shock
FOX FACTORY FLOAT X2 (230x65mm, 10x25mm hardware & w/o hardware)
Drivetrain
Rear Derailleur
-
Shift Levers
-
Cassette
-
Crank
-
Bottom Bracket
BB92 PRESS-FIT 92mm (NOT INCLUDED)
Chain
-
Wheels
Tires
27.5"x2.60" MAX (NOT INCLUDED)
Brakes
Brakes
-
Cockpit
Stem
-
Handlebar
-
Seat
Saddle
-
Seatpost
KS LEV SIO
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.32 mm | 1.3 mm | 1.31 mm |
| Bottom Bracket Height | 354 mm | 354 mm | 354 mm |
| Front Center | 754 mm | 777 mm | 794 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 110 mm | 110 mm | 110 mm |
| Stack | 591 mm | 604.7 mm | 622.9 mm |
| Reach | 448.8 mm | 464.8 mm | 474.4 mm |
| Top Tube Length | 623 mm | 643 mm | 668 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 420 mm | 465 mm | 485 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 90 mm | 105 mm | 125 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1182 mm | 1204 mm | 1222 mm |
| Bottom Bracket Drop | 3 mm | 3 mm | 3 mm |
| Standover Height | 730 mm | 762 mm | 779 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 162 cm | 172 cm | 182 cm |
| Rider Max Height | 175 cm | 185 cm | 195 cm |
Model Overview
XQUARONE EX9 Frameset belongs to the Polygon Xquarone model. 36 frames variations carry this model name so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
The most economical model, the Polygon XQUARONE EX9 Frameset 2018 has a starting price of 2999$. Polygon XQUARONE EX9 With Fork Frameset 2018 on the other hand is the most expensive at 3699$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro frames average price
If you want to purchase a solid Enduro frame, it is important to know that the average cost is 1895$. However, even though the average price of an Enduro frame is lower, you might still be able to get a top-quality frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
At the moment of the release date, Polygon XQUARONE EX9 Frameset price was 2999$. Doing a quick comparison, we notice that XQUARONE EX9 Frameset price is 58.26% higher than the average cost of an Enduro frame.
Enduro frames average weight
Enduro frames have an average weight of 3.43 kg (7.56 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Polygon XQUARONE EX9 Frameset it’s weighing 3.8 kg (8.38 lbs). At this weight, is considerably heavier than average. In conclusion, the average Enduro frame weighs 10.79% less than XQUARONE EX9 Frameset.
XQUARONE EX9 Frameset components
Rear Shock
The shock that’s installed on this frame is FOX FACTORY FLOAT X2 (230x65mm, with a travel distance of 180mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 162 cm – 195 cm (5.31 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Polygon XQUARONE EX9 Frameset comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
