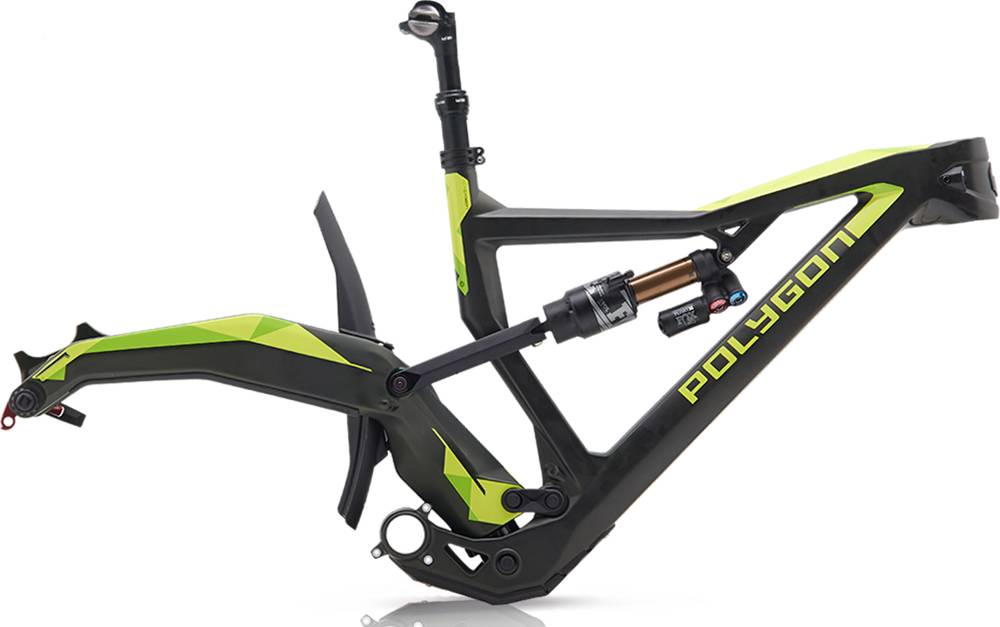

Polygon XQUARONE EX9 Frameset 2019
2019 Mountain
Estimate price |
2,999$
Weight | 3.8 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Rear 180mm -
Suspension Full
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NAILD R3ACT 2PLAY SUSPENSION ACX, 180mm TRAVEL, FOR THRU AXLE BOOST 12x148mm
Suspension Fork
FOR 180mm TRAVEL (NOT INCLUDED)
Rear Shock
FOX FACTORY FLOAT X2 (230x65mm, 10x25mm hardware & w/o hardware)
Drivetrain
Rear Derailleur
-
Shift Levers
-
Cassette
-
Crank
-
Bottom Bracket
BB92 PRESS-FIT 92mm (NOT INCLUDED)
Chain
-
Wheels
Tires
27.5"x2.60" MAX (NOT INCLUDED)
Brakes
Brakes
-
Cockpit
Stem
-
Handlebar
-
Seat
Saddle
-
Seatpost
KS LEV SIO
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.32 mm | 1.3 mm | 1.31 mm |
| Bottom Bracket Height | 354 mm | 354 mm | 354 mm |
| Front Center | 754 mm | 777 mm | 794 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 110 mm | 110 mm | 110 mm |
| Stack | 591 mm | 604.7 mm | 622.9 mm |
| Reach | 448.8 mm | 464.8 mm | 474.4 mm |
| Top Tube Length | 623 mm | 643 mm | 668 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 420 mm | 465 mm | 485 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 90 mm | 105 mm | 125 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1182 mm | 1204 mm | 1222 mm |
| Bottom Bracket Drop | 3 mm | 3 mm | 3 mm |
| Standover Height | 730 mm | 762 mm | 779 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
XQUARONE EX9 Frameset is a Polygon Xquarone model. Polygon launched 36 frames of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Polygon XQUARONE EX9 Frameset 2019 is the cheapest frame model and costs 2999$. Polygon XQUARONE EX9 With Fork Frameset 2019 is the most expensive one and costs 3699$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro frames average price
If you want an acceptable Enduro frame you should know that the average price is 1895$. However, you could also get a good Enduro frame even if you pay a lower amount than the average price. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
When Polygon released this model in 2019, its price was 2999$. If we compare this with the average Enduro frame cost we notice that the price is 58.26% higher.
Enduro frames average weight
If we make a quick analysis of the average weight of an Enduro frame, we get 3.43 kg (7.56 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 3.8 kg (8.38 lbs), Polygon frame is considerably heavier than average. To sum up, it’s 10.79% heavier than the average weight of Enduro frames.
Overview of components
Rear Shock
As for the rear shock, this frame has the FOX FACTORY FLOAT X2 (230x65mm model, with a travel of 180mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Sizes
Polygon XQUARONE EX9 Frameset frame has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
