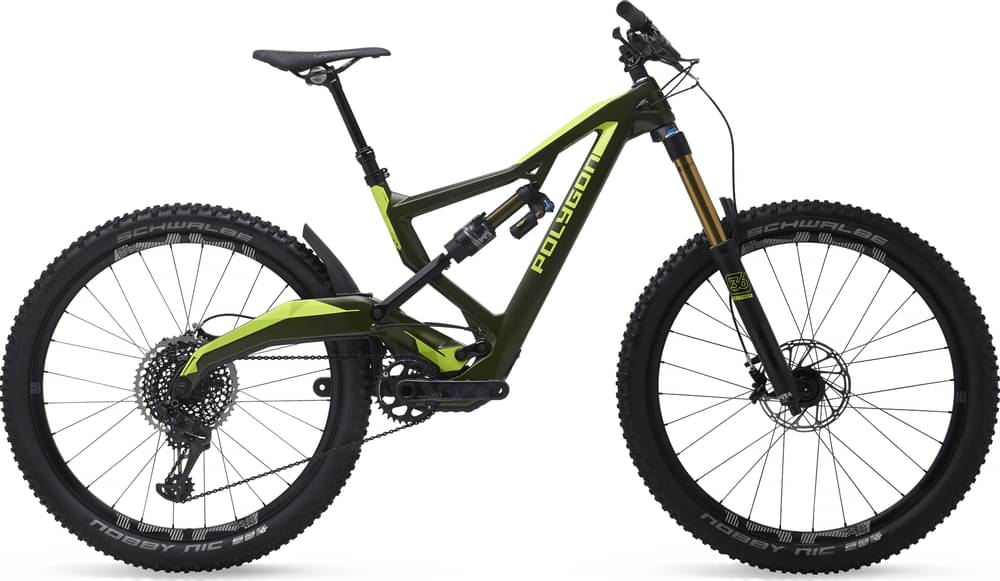

Polygon XQUARONE EX9 SRAM XX1 2018
2018 Mountain
Estimate price |
6,999$
Weight | 13.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 180mm -
Travel Rear 180mm -
Fork Fox Factory Float 36
-
Groupset XX1 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 165cm
MD
162cm - 175cm
LG
172cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NAILD R3ACT 2PLAY SUSPENSION ACX, 180MM TRAVEL, BOOST
Suspension Fork
FOX FACTORY 36 FLOAT, 180MM TRAVEL, BOOST
Rear Shock
FOX FACTORY FLOAT X2 (230x65mm, 10x25mm hardware & w/o hardware)
Drivetrain
Rear Derailleur
SRAM XX1 EAGLE 12-SPEED
Shift Levers
SRAM XX1 EAGLE 12-SPEED
Cassette
SRAM XG 1295 EAGLE 12-SPEED 10-50T
Crank
SRAM XX1 EAGLE 12-SPEED 32T NARROW-WIDE BOOST,175MM
Bottom Bracket
SRAM DUB PRESSFIT
Chain
KMC X12
Wheels
Rims
E13 TRS R CARBON BOOST
Tires
SCHWALBE NOBBY NIC
Brakes
Brakes
SRAM GUIDE ULTIMATE
Cockpit
Stem
RACE FACE TURBINE R, ALLOY E:50MM R:0DEGREE
Handlebar
RACE FACE NEXT R 35, CARBON W:780MM R:20MM
Seat
Saddle
ENTITY ASSAULT W/ CRMO RAIL
Seatpost
KS LEV SIO
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.32 mm | 1.3 mm | 1.31 mm |
| Bottom Bracket Height | 354 mm | 354 mm | 354 mm |
| Front Center | 754 mm | 777 mm | 794 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 110 mm | 110 mm | 110 mm |
| Stack | 591 mm | 604.7 mm | 622.9 mm |
| Reach | 448.8 mm | 464.8 mm | 474.4 mm |
| Top Tube Length | 623 mm | 643 mm | 668 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 420 mm | 465 mm | 485 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 90 mm | 105 mm | 125 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1182 mm | 1204 mm | 1222 mm |
| Bottom Bracket Drop | 3 mm | 3 mm | 3 mm |
| Standover Height | 730 mm | 762 mm | 779 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 152 cm | 162 cm | 172 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm |
Model Overview
XQUARONE EX9 SRAM XX1 completes the Polygon Xquarone model. Polygon launched 36 bikes of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
The most economical model, the Polygon XQUARONE DH8 2018 has a starting price of 4299$. Polygon XQUARONE EX9 SRAM XX1 2018 on the other hand is the most expensive at 6999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro bikes average price
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2018 for 6999$. Comparing this to the average Enduro bike price, we see that the price is 94.47% more expensive.
Enduro bikes average weight
If we make a quick analysis of the average weight of an Enduro bike, we get 14.27 kg (31.46 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Polygon XQUARONE EX9 SRAM XX1 it’s weighing 13.5 kg (29.76 lbs). At this weight, is a bit lighter than average. To sum up, it’s 5.7% lighter than the average weight of Enduro bikes.
Overview of components
Fork
Polygon XQUARONE EX9 SRAM XX1 2018 bike is equipped with the Fox Factory Float 36 fork, and has 180mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The XQUARONE EX9 SRAM XX1 has a rear shock with a travel of 180mm. The model FOX FACTORY FLOAT X2 (230x65mm is the one installed in this bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The XQUARONE EX9 SRAM XX1 2018 bike is equipped with 27.5″ carbon wheels when leaving the factory. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Polygon XQUARONE EX9 SRAM XX1 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Polygon XQUARONE EX9 SRAM XX1 bike has 3 sizes, in the range of 152 cm – 185 cm (4.99 ft – 6.07 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Polygon model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
