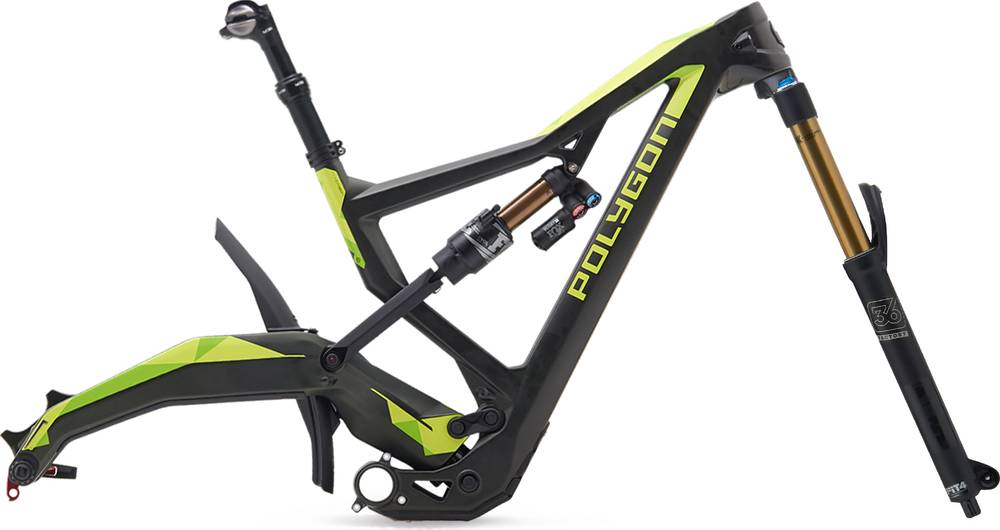

Polygon XQUARONE EX9 With Fork Frameset 2020
2020 Mountain
Estimate price |
3,699$
Weight | 5.2 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Rear 180mm -
Fork Fox Factory Float 36 -
Suspension Full
Sizing
Recommended size guide.
MD
162cm - 175cm
LG
172cm - 185cm
XL
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NAILD R3ACT 2PLAY SUSPENSION ACX, 180mm TRAVEL, FOR THRU AXLE BOOST 12x148mm
Suspension Fork
FOX FACTORY 36 FLOAT, 180mm TRAVEL, FOR THRU AXLE BOOST 15x110mm
Rear Shock
FOX FACTORY FLOAT X2 (230x65mm, 10x25mm hardware & w/o hardware)
Drivetrain
Rear Derailleur
-
Shift Levers
-
Cassette
-
Crank
-
Bottom Bracket
BB92 PRESS-FIT 92mm (NOT INCLUDED)
Chain
-
Wheels
Tires
27.5"x2.60" MAX (NOT INCLUDED)
Brakes
Brakes
-
Cockpit
Stem
-
Handlebar
-
Seat
Saddle
-
Seatpost
KS LEV SIO
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.32 mm | 1.3 mm | 1.31 mm |
| Bottom Bracket Height | 354 mm | 354 mm | 354 mm |
| Front Center | 754 mm | 777 mm | 794 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 110 mm | 110 mm | 110 mm |
| Stack | 591 mm | 604.7 mm | 622.9 mm |
| Reach | 448.8 mm | 464.8 mm | 474.4 mm |
| Top Tube Length | 623 mm | 643 mm | 668 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 420 mm | 465 mm | 485 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 90 mm | 105 mm | 125 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1182 mm | 1204 mm | 1222 mm |
| Bottom Bracket Drop | 3 mm | 3 mm | 3 mm |
| Standover Height | 730 mm | 762 mm | 779 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 162 cm | 172 cm | 182 cm |
| Rider Max Height | 175 cm | 185 cm | 195 cm |
About this model
XQUARONE EX9 With Fork Frameset is part of the Polygon Xquarone model. 36 frames variations carry this model name so far. You can easily view all of the Polygon Xquarone frames models from 2020, here.
Model range prices
The most economical model, the Polygon XQUARONE EX9 Frameset 2020 has a starting price of 2999$. Polygon XQUARONE EX9 With Fork Frameset 2020 on the other hand is the most expensive at 3699$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro frames
If you want an acceptable Enduro frame you should know that the average price is 1895$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2020 for 3699$. If we compare this with the average Enduro frame cost we notice that the price is 95.2% higher.
Average weight for Enduro frames
Enduro frames have an average weight of 3.43 kg (7.56 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
XQUARONE EX9 With Fork Frameset weighs 5.2 kg (11.46 lbs) and is much heavier than the average. In other words, this model is 51.6% heavier than the average Enduro frame.
XQUARONE EX9 With Fork Frameset components
Fork
The fork installed on this bike is the Fox Factory Float 36 model. The travel on this model is mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this frame is FOX FACTORY FLOAT X2 (230x65mm, with a travel distance of 180mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Sizes
XQUARONE EX9 With Fork Frameset comes in 3 sizes, that range from 162 cm – 195 cm (5.31 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the XQUARONE EX9 With Fork Frameset. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
