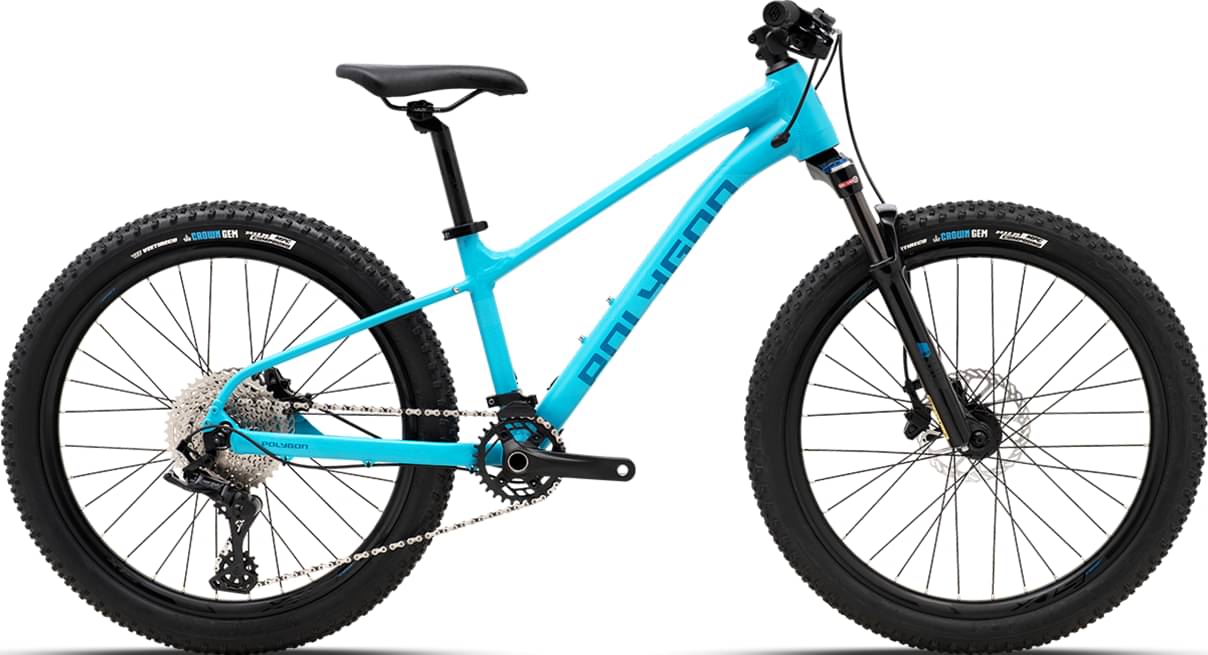

Polygon XTRADA 24 2023
2023 Youth
Estimate price |
799$
Weight | 12.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 24" -
Travel Front 80mm -
Fork Suntour XCR Air
-
Groupset microSHIFT Advent X -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
One Size
124cm - 149cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
aluminum
Suspension Fork
SUNTOUR XCR AIR 80mm TRAVEL
Drivetrain
Rear Derailleur
MICROSHIFT RD-M6205GM 10-SPEED
Shift Levers
MICROSHIFT SL-M9505 10-SPEED TRIGGER
Cassette
SUNRACE CSMS3 10-SPEED 11-42T
Crank
PROWHEEL CHARM 30T, CRANK ARM: 140mm
Bottom Bracket
PROWHEEL 2 PIECE, THREADED BSA 73mm
Chain
KMC X10 10-SPEED
Pedals
ALLOY FLAT
Wheels
Front Hub
F: FORMULA DC-20 QRx100mm 32H 6B / R: FORMULA DC-1422 QRx135mm 32H 6B FOR CASSETE SPROCKET
Rear Hub
F: FORMULA DC-20 QRx100mm 32H 6B / R: FORMULA DC-1422 QRx135mm 32H 6B FOR CASSETE SPROCKET
Rims
ALLOY DOUBLE WALL
Spokes
F: STAINLESS 14G NDS:232mm DS:234mm / R: STAINLESS 14G NDS:232mm DS:230mm
Tires
VEE TIRE CROWN GEM 24"x2.25" 507x57
Brakes
Brakes
CLARKS M2 JR HYDRAULIC DISC
Brake Levers
CLARKS M2 JR
Cockpit
Handlebar
ENTITY EXPERT, W: 640mm, BB: 31.8mm, R/D: 20mm, B: 6 degree
Headset
ZERO STACK W/ CAGED BEARING, ZS 44/28.6 | ZS 56/30
Seat
Saddle
BLACK, STEEL ø7mm
Seatpost
ENTITY EXPERT, 27.2x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | One Size |
|---|---|
| Stack Reach Ratio | 1.56 mm |
| Bottom Bracket Height | 288 mm |
| Front Center | 630 mm |
| Rake | 42 mm |
| Stack | 546.5 mm |
| Reach | 351 mm |
| Top Tube Length | 496 mm |
| Seat Tube Angle | 70 ° |
| Seat Tube Length | 321 mm |
| Head Tube Angle | 65 ° |
| Head Tube Length | 90 mm |
| Chainstay Length | 406 mm |
| Wheelbase | 1034 mm |
| Bottom Bracket Drop | 30 mm |
| Standover Height | 589 mm |
| Wheels | 700 |
| Rider Min Height | 124 cm |
| Rider Max Height | 149 cm |
About this model
XTRADA 24 belongs to the Polygon Xtrada model. 32 bikes variations carry this model name so far. You can easily view all of the Polygon Xtrada bikes models from 2023, here.
Model range prices
Polygon XTRADA 5 2023 is the cheapest bike model and costs 619$. Polygon Xtrada 7 Hardtail 2023 is the most expensive one and costs 1099$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Mountain bikes
According to our math, the average price for a trustworthy Mountain bike is 616$. However, this doesn’t mean that if you spend less money on a Mountain bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 799$. In conclusion, this bike price is 29.71% higher than the price of the average Mountain bike.
Average weight for Mountain bikes
If we make a quick analysis of the average weight of a Mountain bike, we get 11.4 kg (25.13 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 12.4 kg (27.34 lbs), Polygon bike is a bit heavier than average. In short, the average Mountain bike weight is 8.77% lower than this one.
Overview of components
Fork
The fork installed on this bike is the Suntour XCR Air model. The travel on this model is 80mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When leaving the production line, the XTRADA 24 model has 24″ aluminum wheels. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, you can use them better on-road, and less on technical terrain.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike has one size only, so it might not fit you. In short, make sure you double-check if it fits you.
