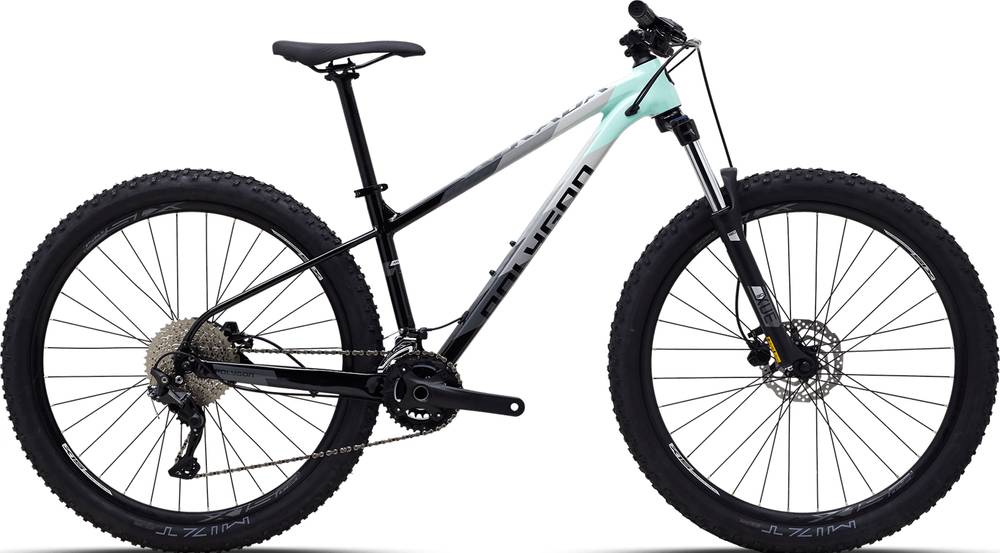

Polygon XTRADA 5 2020
2020 Mountain
Estimate price |
799$
Weight | 13.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 120mm -
Fork SunTour XCM HLO
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 165cm
MD
162cm - 175cm
MD
162cm - 175cm
LG
172cm - 185cm
LG
172cm - 185cm
XL
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALX XC 27.5” & 29”
Suspension Fork
SUNTOUR XCM-HLO, 120MM (27.5”) / 120MM (29”) TRAVEL
Rear Shock
-
Drivetrain
Rear Derailleur
SHIMANO, DEORE RD-M4120 10-SPEED
Shift Levers
SHIMANO DEORE SL-M5100/SL-M4100 2X10-SPEED
Cassette
SHIMANO, DEORE CS-M4100 11-42T 10-SPEED
Crank
PROWHEEL, VORTEX 551-TT-B 36-22T 10-SPEED
Bottom Bracket
BSA THREADED
Chain
KMC X-10 10-SPEED
Wheels
Rims
DOUBLE WALL ALLOY RIMS W/ ALLOY QR BOOST HUBS
Tires
MIZT SA-281 27.5”X2.25” / 29”X2.25”
Brakes
Brakes
TEKTRO HD-M275 HYDRAULIC DISC BRAKE
Cockpit
Stem
ENTITY SPORT, ALLOY E:45MM BB:31.8MM
Handlebar
ENTITY SPORT, ALLOY W:760MM R:12MM BB:31.8MM
Seat
Saddle
ENTITY VOID
Seatpost
ENTITY SPORT, 15MM OFFSET, 27.2MMX350MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD | LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.39 mm | 1.46 mm | 1.34 mm | 1.41 mm | 1.36 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 309 mm | 310 mm | 309 mm | 309 mm |
| Front Center | 685 mm | 707 mm | 720 mm | 729 mm | 742 mm | 764 mm |
| Rake | 37 mm | 37 mm | 44 mm | 37 mm | 44 mm | 44 mm |
| Trail | 111 mm | 111 mm | 111 mm | 111 mm | 111 mm | 111 mm |
| Stack | 595.8 mm | 601.3 mm | 631.3 mm | 605 mm | 635.2 mm | 639.8 mm |
| Reach | 412 mm | 432 mm | 432 mm | 452 mm | 452 mm | 472 mm |
| Top Tube Length | 571 mm | 592 mm | 600 mm | 614 mm | 621 mm | 642 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 385 mm | 425 mm | 425 mm | 460 mm | 460 mm | 500 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 95 mm | 100 mm | 95 mm | 105 mm | 100 mm | 105 mm |
| Chainstay Length | 427 mm | 427 mm | 437 mm | 427 mm | 437 mm | 437 mm |
| Wheelbase | 1108 mm | 1130 mm | 1149 mm | 1152 mm | 1171 mm | 1193 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 65 mm | 45 mm | 65 mm | 65 mm |
| Standover Height | 665 mm | 699 mm | 695 mm | 728 mm | 717 mm | 753 mm |
| Wheels | 27" | 27" | 29" | 27" | 29" | 29" |
| Rider Min Height | 152 cm | 162 cm | 162 cm | 172 cm | 172 cm | 182 cm |
| Rider Max Height | 165 cm | 175 cm | 175 cm | 185 cm | 185 cm | 195 cm |
About this model
XTRADA 5 completes the Polygon Xtrada model. Polygon launched 32 bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Polygon XTRADA 5 2020 is the cheapest bike model and costs 799$. Polygon XTRADA 8 2020 is the most expensive one and costs 1199$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 799$. In conclusion, this bike price is 245.68% smaller than the price of the average Trail bike.
Average weight for Trail bikes
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 13.8 kg (30.42 lbs), Polygon bike is a bit heavier than average. In short, the average Trail bike weight is 6.32% lower than this one.
XTRADA 5 components
Fork
This bike has the SunTour XCM HLO fork installed. The fork’s travel is 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The XTRADA 5 2020 bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
XTRADA 5 comes in 6 sizes, that range from 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
