Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 120mm -
Fork SunTour XCR 32
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 165cm
MD
162cm - 175cm
MD
162cm - 175cm
LG
172cm - 185cm
LG
172cm - 185cm
XL
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALX XC 27.5” & 29”
Suspension Fork
SUNTOUR XCR32 LO-R, 120MM (27.5”) / 120MM (29”) TRAVEL, W/ LOCKOUT & REBOUND
Rear Shock
-
Drivetrain
Rear Derailleur
SHIMANO, DEORE RD-M5100 11-SPEED
Shift Levers
SHIMANO DEORE SL-M5100 11-SPEED
Cassette
SHIMANO, DEORE CS-M5100 11-51T 11-SPEED
Crank
SHIMANO, DEORE FC-MT510-0 32T 11/10-SPEED
Bottom Bracket
BSA THREADED
Chain
KMC X-11 11-SPEED
Wheels
Rims
DOUBLE WALL ALLOY RIMS
Tires
SPYDERBAIT SA-290 27.5”X2.25” / 29”X2.25”
Brakes
Brakes
SHIMANO BR-M201 HYDRAULIC DISC BRAKE
Cockpit
Stem
ENTITY SPORT, ALLOY E:45MM BB:31.8MM
Handlebar
ENTITY SPORT, ALLOY W:760MM R:12MM BB:31.8MM
Seat
Saddle
ENTITY VOID
Seatpost
ENTITY SPORT, 15MM OFFSET, 27.2MMX350MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD | LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.39 mm | 1.46 mm | 1.34 mm | 1.41 mm | 1.36 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 309 mm | 310 mm | 309 mm | 309 mm |
| Front Center | 685 mm | 707 mm | 720 mm | 729 mm | 742 mm | 764 mm |
| Rake | 37 mm | 37 mm | 44 mm | 37 mm | 44 mm | 44 mm |
| Trail | 111 mm | 111 mm | 111 mm | 111 mm | 111 mm | 111 mm |
| Stack | 595.8 mm | 601.3 mm | 631.3 mm | 605 mm | 635.2 mm | 639.8 mm |
| Reach | 412 mm | 432 mm | 432 mm | 452 mm | 452 mm | 472 mm |
| Top Tube Length | 571 mm | 592 mm | 600 mm | 614 mm | 621 mm | 642 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 385 mm | 425 mm | 425 mm | 460 mm | 460 mm | 500 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 95 mm | 100 mm | 95 mm | 105 mm | 100 mm | 105 mm |
| Chainstay Length | 427 mm | 427 mm | 437 mm | 427 mm | 437 mm | 437 mm |
| Wheelbase | 1108 mm | 1130 mm | 1149 mm | 1152 mm | 1171 mm | 1193 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 65 mm | 45 mm | 65 mm | 65 mm |
| Standover Height | 665 mm | 699 mm | 695 mm | 728 mm | 717 mm | 753 mm |
| Wheels | 27" | 27" | 29" | 27" | 29" | 29" |
| Rider Min Height | 152 cm | 162 cm | 162 cm | 172 cm | 172 cm | 182 cm |
| Rider Max Height | 165 cm | 175 cm | 175 cm | 185 cm | 185 cm | 195 cm |
About this model

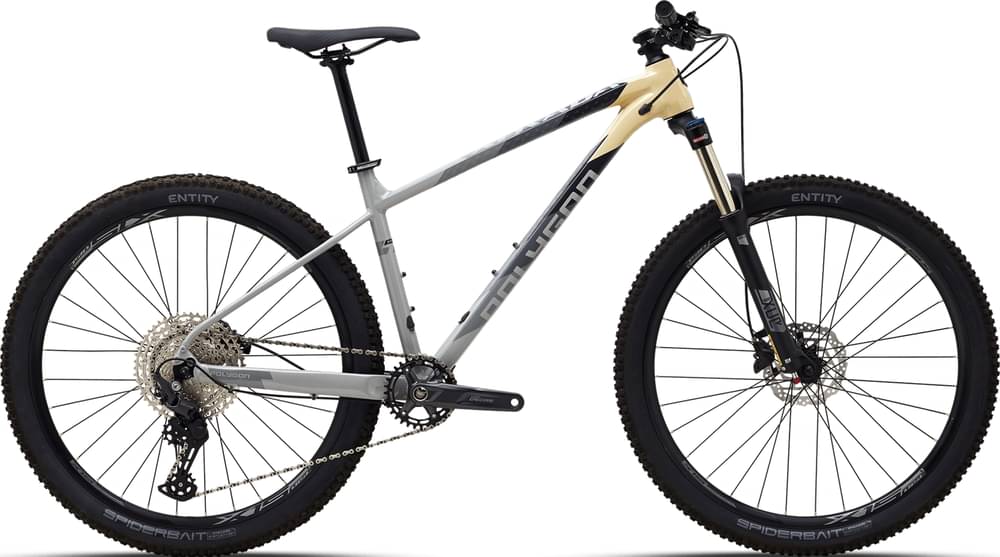

XTRADA 6 1×11 is part of the Polygon Xtrada model. There are 32 bikes that carry this model name. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Polygon XTRADA 5 2021 is the most economical model, with a starting price of 849$. Polygon XTRADA 7 2021 on the other hand costs 1099$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2021 and its price was 949$. Comparing this to the average Trail bike price, we see that the price is 191.04% smaller.
Overview of components
Fork
Polygon XTRADA 6 1×11 2021 bike is equipped with the SunTour XCR 32 fork, and has 120mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
As for the wheels, Polygon XTRADA 6 1×11 2021, has a 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The XTRADA 6 1×11 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
XTRADA 6 1×11 comes in 6 sizes, that range from 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
