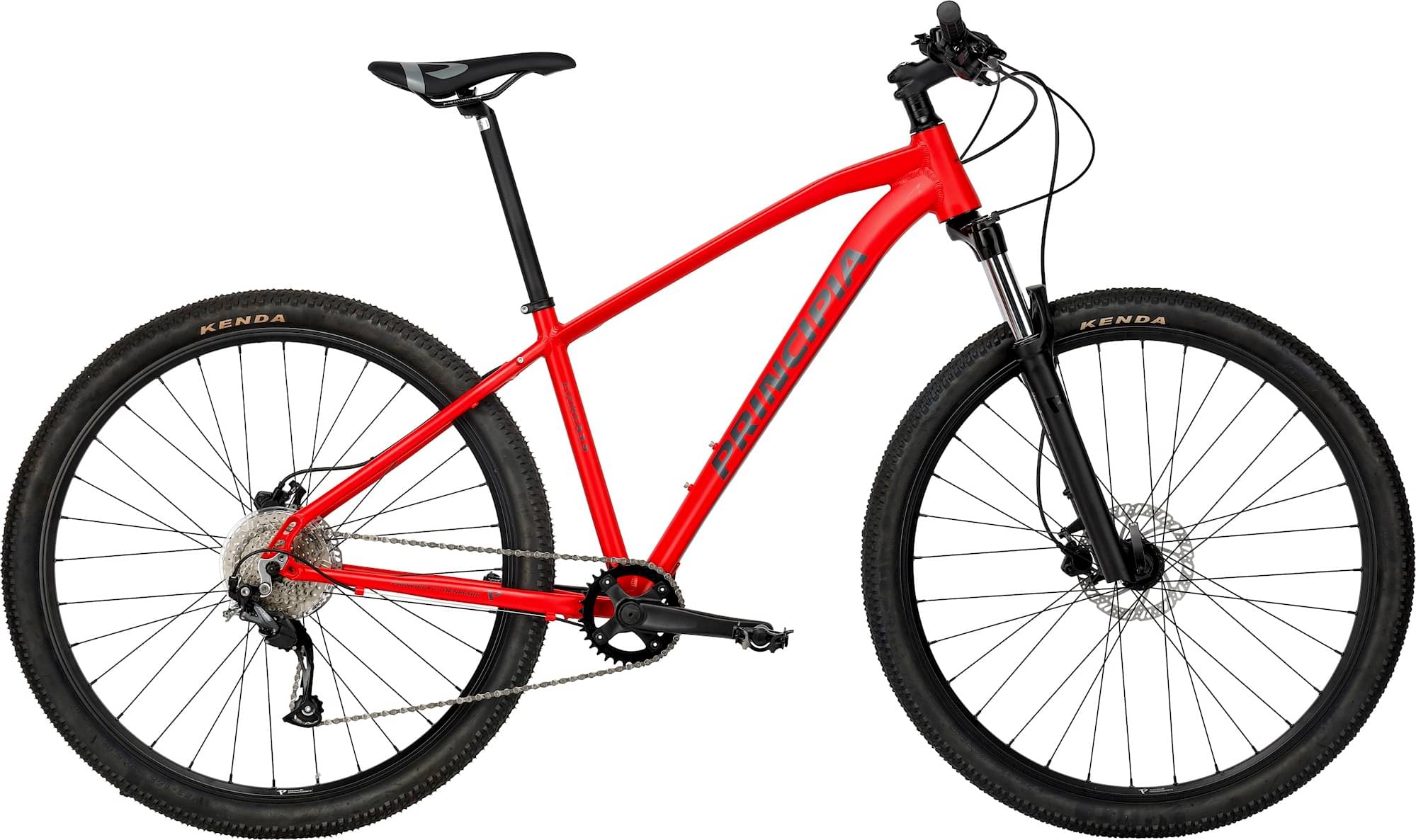

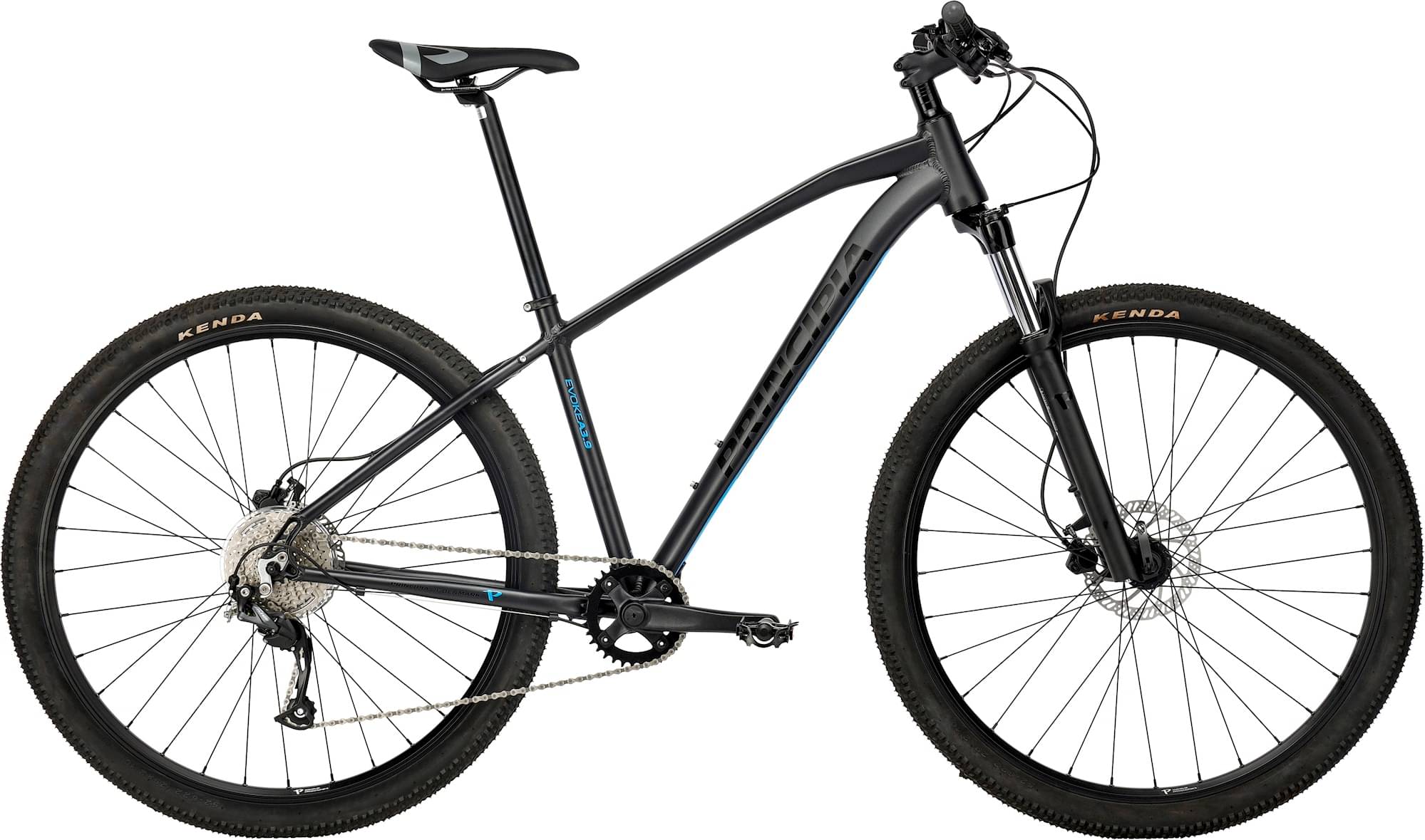

principia Evoke A3.9 2023
2023 Mountain
Estimate price |
1,008$
Weight | 15 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Fork Suntour XCR -
Groupset Altus -
Suspension Hardtail -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
SR Suntour SF14-XCR 32, remote lock out
Drivetrain
Rear Derailleur
Shimano Altus M2000
Shift Levers
Shimano Altus SL-M2010 1x9
Cassette
Shimano HG201 9sp 11-36T
Crank
Samox AF26 32T 175mm
Chain
KMC X9, 114 links
Wheels
Rims
29in
Tires
Kenda K-1153 27.5x2.10
Brakes
Brakes
Front: Tektro HD-M285 hydraulic disc brake, 160 mm. rotor, Rear: Tektro HD-M285 hydraulic disc brake, 160 mm. rotor
Cockpit
Stem
Zoom TDS-C301-8FOV, 31.8 mm.
Handlebar
Zoom MTB-AL-312BT, 31.8 mm. 12 mm. rise, 760 mm. width
Seat
Saddle
Black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.64 mm | 1.64 mm | 1.64 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm | 304 mm |
| Front Center | 667 mm | 667 mm | 667 mm | 667 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 91 mm | 91 mm | 91 mm | 91 mm |
| Stack | 641 mm | 641 mm | 641 mm | 641 mm |
| Reach | 391 mm | 391 mm | 391 mm | 391 mm |
| Top Tube Length | 581 mm | 581 mm | 581 mm | 581 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 120 mm | 120 mm | 120 mm | 120 mm |
| Chainstay Length | 473 mm | 473 mm | 473 mm | 473 mm |
| Wheelbase | 1133 mm | 1133 mm | 1133 mm | 1133 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm | 63 mm |
| Standover Height | 750 mm | 780 mm | 810 mm | 841 mm |
| Wheels | 29" | 29" | 29" | 29" |
Model Overview
Evoke A3.9 is part of the Principia Evoke model. Principia released 14 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Principia Evoke A2.0 2023 has a starting price of 668$. Principia Evoke Fully 2023 on the other hand is the most expensive at 2972$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 933$. In conclusion, this bike price is 196.03% smaller than the price of the average Trail bike.
Average weight for Trail bikes
The average weight for Trail bikes is 12.88 kg (28.4 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Principia Evoke A3.9 it’s weighing 15 kg (33.07 lbs). At this weight, is much heavier than average. In other words, this model is 16.46% heavier than the average Trail bike.
Overview of components
Fork
The Evoke A3.9 comes factory-installed with the Suntour XCR fork. This has a travel range of mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The wheels on Evoke A3.9 are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Principia Evoke A3.9 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
