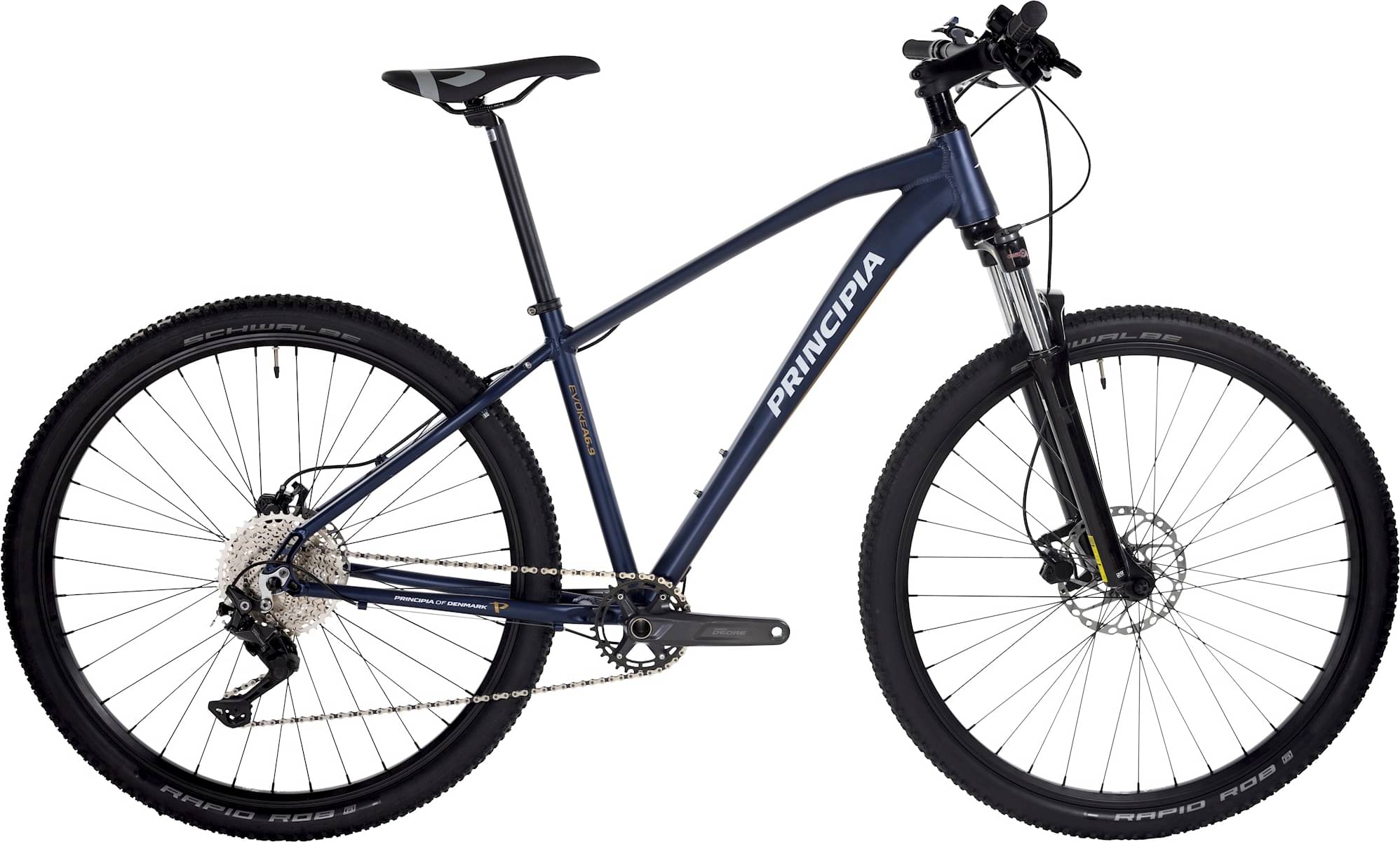

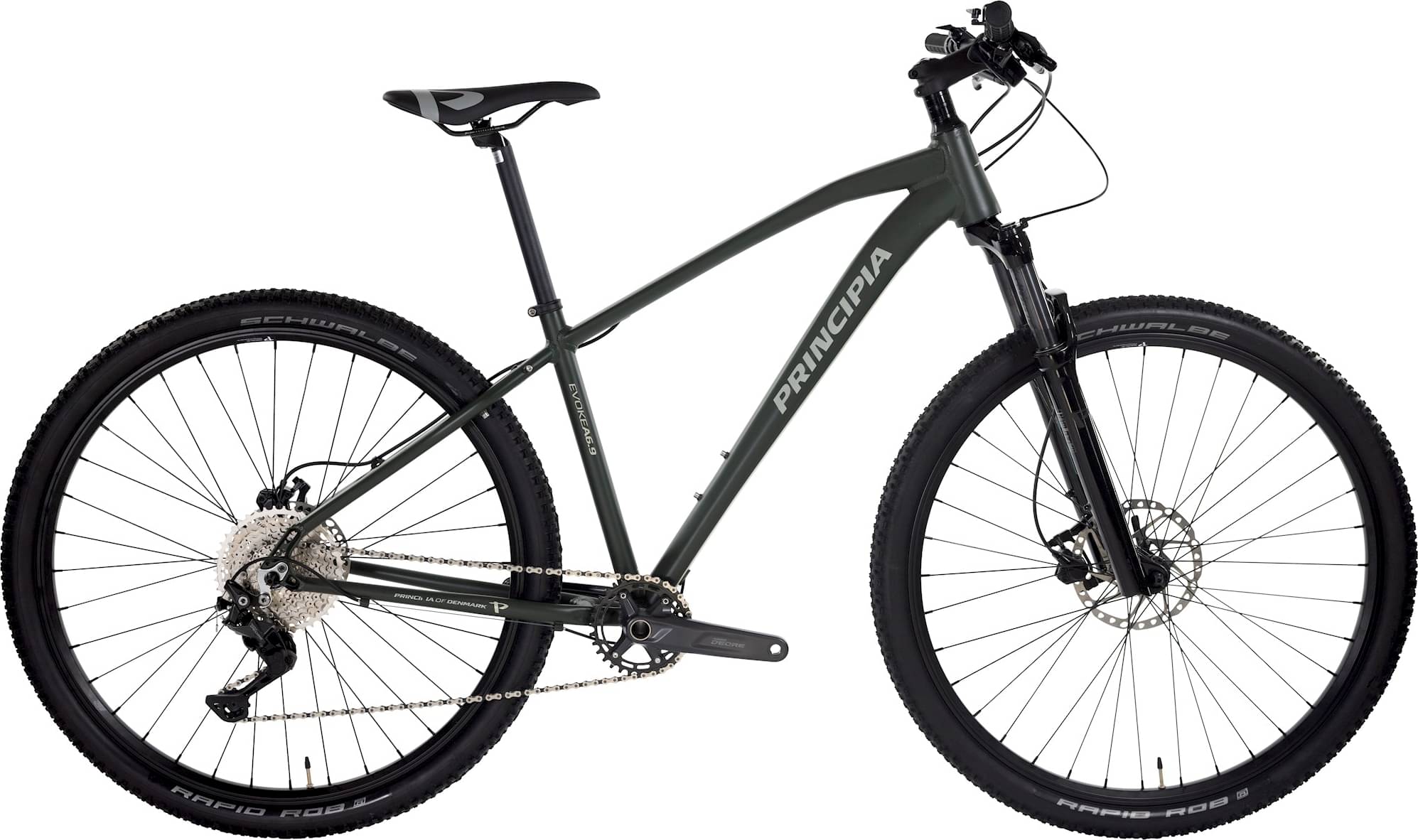

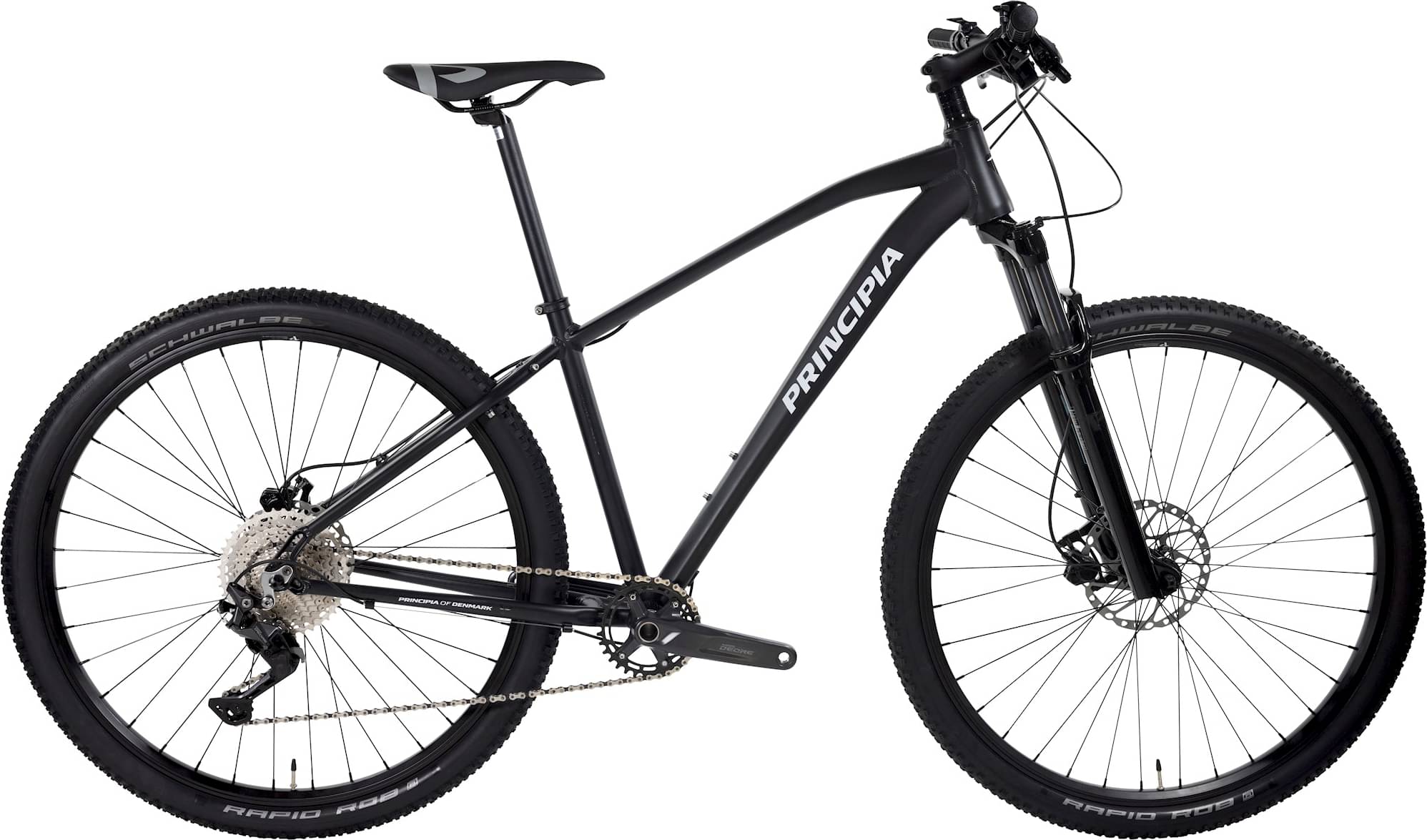

principia Evoke A6.9 2023
2023 Mountain
Estimate price |
1,395$
Weight | 15.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Fork Suntour XCR Air -
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Principia PC-20 29" MTB
Suspension Fork
SR Suntour SF14-XCR32-Air RLR DS, remote lock out
Drivetrain
Rear Derailleur
Shimano Deore M6000
Shift Levers
Shimano Deore SL-M5100 1x11
Cassette
Shimano CS-M5100 11sp 11-42T
Crank
Samox AF26 32T 175mm
Chain
KMC X11
Pedals
Not included
Wheels
Rims
29in
Tires
Schwalbe Rapid Rob K-Guard 29x2.10
Brakes
Brakes
Front: Tektro HD-M285 hydraulic disc brake, 180 mm. rotor, Rear: Tektro HD-M285 hydraulic disc brake, 180 mm. rotor
Cockpit
Stem
Zoom TDS-C301-8FOV, 31.8 mm.
Handlebar
Zoom MTB-AL-312BT, 31.8 mm. 12 mm. rise, 760 mm. width
Seat
Saddle
Foming DDK-510
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.64 mm | 1.64 mm | 1.64 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm | 304 mm |
| Front Center | 667 mm | 667 mm | 667 mm | 667 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 91 mm | 91 mm | 91 mm | 91 mm |
| Stack | 641 mm | 641 mm | 641 mm | 641 mm |
| Reach | 391 mm | 391 mm | 391 mm | 391 mm |
| Top Tube Length | 581 mm | 581 mm | 581 mm | 581 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 120 mm | 120 mm | 120 mm | 120 mm |
| Chainstay Length | 473 mm | 473 mm | 473 mm | 473 mm |
| Wheelbase | 1133 mm | 1133 mm | 1133 mm | 1133 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm | 63 mm |
| Standover Height | 750 mm | 780 mm | 810 mm | 841 mm |
| Wheels | 29" | 29" | 29" | 29" |
About this model
Evoke A6.9 completes the Principia Evoke model. There are 14 bikes that carry this model name. Take a sneak peek at all Principia Evoke bikes models from 2023, by clicking here.
Model range prices
Principia Evoke A2.0 2023 is the cheapest bike model and costs 668$. Principia Evoke Fully 2023 is the most expensive one and costs 2972$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2023 and its price was 1273$. If we compare this with the average Trail bike cost we notice that the price is 116.97% lower.
Trail bikes average weight
If we make a quick analysis of the average weight of a Trail bike, we get 12.88 kg (28.4 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 15.5 kg (34.17 lbs), the Evoke A6.9 model is much heavier than average. In other words, this model is 20.34% heavier than the average Trail bike.
Evoke A6.9 components
Fork
The Suntour XCR Air is included from the factory. It has a travel distance of mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The wheels on Evoke A6.9 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Principia Evoke A6.9 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
