Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 27.5" -
Travel Front 140mm -
Fork Cane Creek HELM
-
Groupset XX1 Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chromoly
Suspension Fork
Cane Creek Helm Air
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM XX1 Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM XX1 Eagle, 12-speed
Cassette
SRAM XX1 Eagle, 12-speed, 10-50 tooth, Gold finish
Crank
SRAM XX1 Eagle DUB, 170mm length
Bottom Bracket
SRAM DUB, BB92 PressFit
Chain
SRAM XX1 Eagle, 12-speed, Gold finish
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Spank Custom Tuned 350/359 wheelset, j-bend, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Rear Hub
Spank Custom Tuned 350/359 wheelset, j-bend, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Rims
Spank Custom Tuned 350/359 wheelset
Spokes
Spank Custom Tuned 350/359 wheelset, j-bend
Tires
Panaracer Aliso, TR, 3Comp, 27.5" x 2.4"
Brakes
Brakes
Magura MT Trail Carbon, Magura Storm HC 180mm rotors
Brake Levers
Magura MT Trail Carbon
Cockpit
Stem
Production Privee R2R, 50mm length
Handlebar
Production Privee LGB, 780mm width
Grips
Production Privee CR35 adjustable
Headset
IS42 upper, IS52 lower
Seat
Saddle
fi'zi:k Monte Enduro, Kium rails
Seatpost
BikeYoke Revive dropper, 160mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.559 mm | 1.483 mm | 1.431 mm | 1.379 mm |
| Bottom Bracket Height | 318 mm | 318 mm | 318 mm | 318 mm |
| Front Center | 697 mm | 717 mm | 744 mm | 769 mm |
| Rake | 41 mm | 41 mm | 42 mm | 42 mm |
| Trail | 117 mm | 117 mm | 116 mm | 116 mm |
| Stack | 608 mm | 608 mm | 618 mm | 626 mm |
| Reach | 390 mm | 410 mm | 432 mm | 454 mm |
| Top Tube Length | 570 mm | 590 mm | 615 mm | 640 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 400 mm | 430 mm | 460 mm | 495 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 105 mm | 105 mm | 110 mm | 115 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1122 mm | 1142 mm | 1169 mm | 1195 mm |
| Bottom Bracket Drop | 37 mm | 37 mm | 37 mm | 37 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

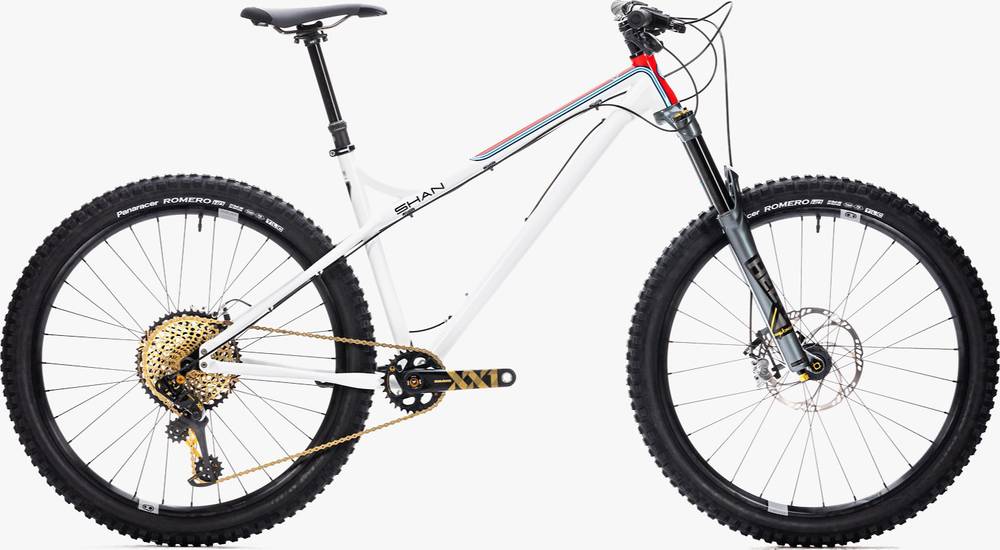

Shan 037 Limited Edition belongs to the Productionprivee Shan model. Production Privee released 53 bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork
The fork installed on this bike is the Cane Creek HELM model. The travel on this model is 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the Shan 037 Limited Edition model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Production Privee Shan 037 Limited Edition has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Production Privee Shan 037 Limited Edition bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the Shan 037 Limited Edition. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
