Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 150mm -
Fork Cane Creek HELM
-
Groupset XX1 Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chromoly
Suspension Fork
Cane Creek Helm Air
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM XX1 Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM XX1 Eagle, 12-speed
Cassette
SRAM XX1 Eagle, 12-speed, 10-50 tooth, Gold finish
Crank
SRAM XX1 Eagle DUB, 170mm length
Bottom Bracket
SRAM DUB, BB92 PressFit
Chain
SRAM XX1 Eagle, 12-speed, Gold finish
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Crankbrothers Synthesis E Alloy Enduro wheelset, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Rear Hub
Crankbrothers Synthesis E Alloy Enduro wheelset, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Rims
Crankbrothers Synthesis E Alloy Enduro wheelset
Spokes
Crankbrothers Synthesis E Alloy Enduro wheelset
Tires
Panaracer Aliso, TR, 3Comp, 29" x 2.4"
Brakes
Brakes
Magura MT Trail Carbon, Magura Storm HC rotors (180mm front, 160mm rear)
Brake Levers
Magura MT Trail Carbon
Cockpit
Stem
Production Privee R2R, 50mm length
Handlebar
Production Privee LGB, 780mm width
Grips
Production Privee CR35 adjustable
Headset
IS42 upper, IS52 lower
Seat
Saddle
fi'zi:k Monte Enduro, Kium rails
Seatpost
BikeYoke Revive dropper, 160mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.664 mm | 1.592 mm | 1.514 mm | 1.448 mm |
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm | 316 mm |
| Front Center | 693 mm | 713 mm | 739 mm | 764 mm |
| Rake | 51 mm | 49 mm | 49 mm | 49 mm |
| Trail | 106 mm | 109 mm | 109 mm | 109 mm |
| Stack | 639 mm | 643 mm | 648 mm | 653 mm |
| Reach | 384 mm | 404 mm | 428 mm | 451 mm |
| Top Tube Length | 570 mm | 590 mm | 615 mm | 640 mm |
| Seat Tube Angle | 73.7 ° | 73.7 ° | 73.7 ° | 73.7 ° |
| Seat Tube Length | 400 mm | 430 mm | 460 mm | 490 mm |
| Head Tube Angle | 66.6 ° | 66.6 ° | 66.6 ° | 66.6 ° |
| Head Tube Length | 105 mm | 105 mm | 110 mm | 115 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1114 mm | 1134 mm | 1160 mm | 1185 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 58 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

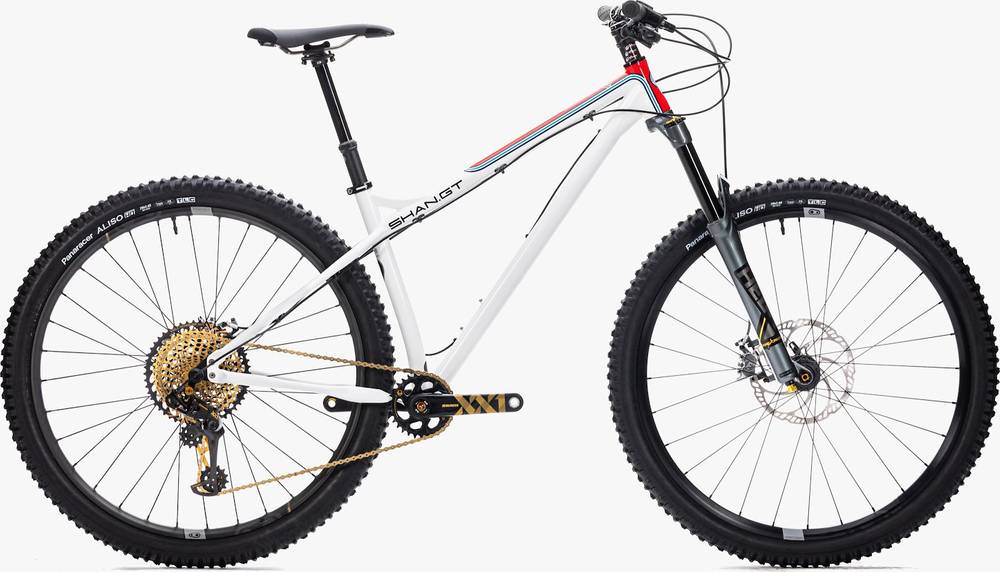

About this model
Shan GT 037 Limited Edition completes the Productionprivee Shan model. Production Privee released 53 bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro bikes average price
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork
Production Privee Shan GT 037 Limited Edition 2020 bike is equipped with the Cane Creek HELM fork, and has 150mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The wheels on Shan GT 037 Limited Edition are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Shan GT 037 Limited Edition has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Production Privee model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
