Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork DVO Diamond
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chromoly
Suspension Fork
DVO Diamond D1
Rear Shock
DVO Topaz T3 Air, 3-position compression adjust, 210mm x 55mm
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM GX Eagle, 12-speed, 10-50 tooth
Crank
SRAM GX Eagle DUB, 170mm length
Bottom Bracket
SRAM DUB, BB92 PressFit
Chain
SRAM GX Eagle, 12-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Spank Custom Tuned 350/359 wheelset, j-bend, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Rear Hub
Spank Custom Tuned 350/359 wheelset, j-bend, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Rims
Spank Custom Tuned 350/359 wheelset
Spokes
Spank Custom Tuned 350/359 wheelset, j-bend
Tires
Panaracer Aliso, TR, 3Comp, 29" x 2.4"
Brakes
Brakes
Magura MT Trail Sport, Magura Storm HC rotors (203mm front, 180mm rear)
Brake Levers
Magura MT Trail Sport
Cockpit
Stem
Production Privee R2R, 50mm length
Handlebar
Production Privee LGB, 780mm width
Grips
Production Privee CR35
Headset
IS42 upper, IS52 lower
Seat
Saddle
fi'zi:k Taiga Enduro, alloy rails
Seatpost
Crankbrothers Highline dropper, 150mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.421 mm | 1.342 mm | 1.296 mm | 1.262 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 758 mm | 783 mm | 810 mm | 834 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 122 mm | 122 mm | 122 mm | 122 mm |
| Stack | 608 mm | 608 mm | 617 mm | 626 mm |
| Reach | 428 mm | 453 mm | 476 mm | 496 mm |
| Top Tube Length | 580 mm | 605 mm | 630 mm | 650 |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 400 mm | 430 mm | 450 mm | 485 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 105 mm | 105 mm | 110 mm | 125 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1193 mm | 1218 mm | 1245 mm | 1269 mm |
| Bottom Bracket Drop | 36 mm | 36 mm | 36 mm | 36 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

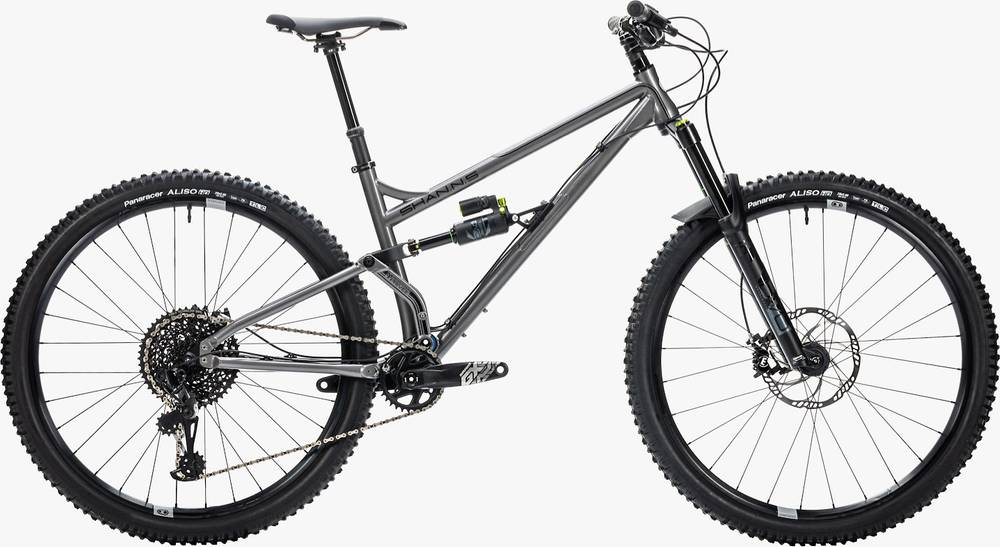

Shan N.5 Classic is a Productionprivee Shan model. There are 53 bikes that carry this model name. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork
This bike has the DVO Diamond fork installed. The fork’s travel is 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The Shan N.5 Classic has a rear shock with a travel of 140mm. The model DVO Topaz T3 Air is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The wheels on Shan N.5 Classic are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the Shan N.5 Classic. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
