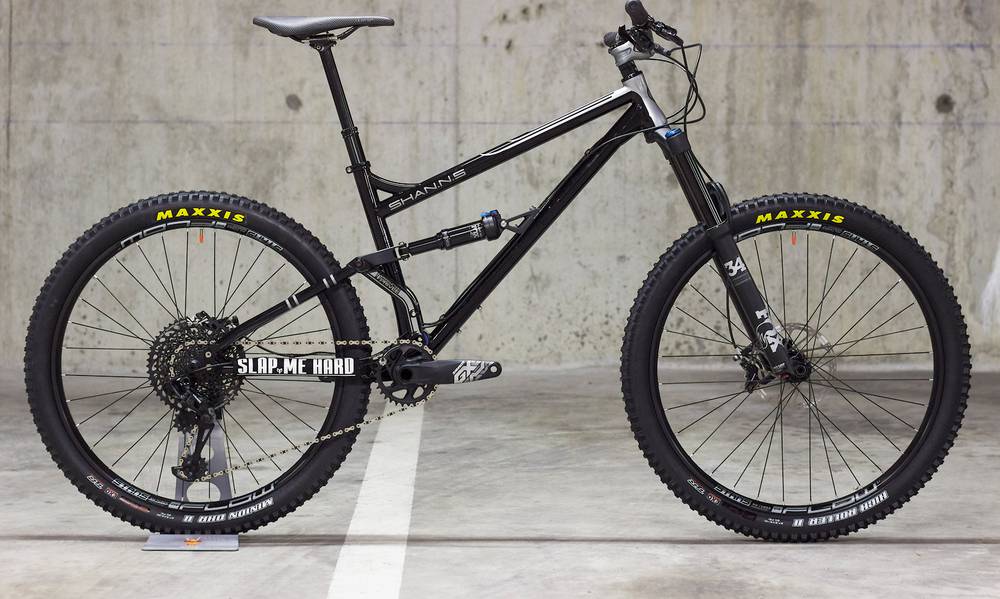

Production Privee Shan N.5 GTR 2018
2018 Mountain
Weight | 14.39 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Performance Float 34
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chromoly
Suspension Fork
FOX 34 Performance, 110x15mm Boost axle
Rear Shock
FOX Evol DPS Performance, 210mm x 55mm
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM GX Eagle, 12-speed, 11-50 tooth
Crank
SRAM GX Eagle, 175mm length
Bottom Bracket
BB92 PressFit
Chain
SRAM GX Eagle, 12-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Stan's Flow S1, XD driver, Boost front and rear
Rear Hub
Stan's Flow S1, XD driver, Boost front and rear
Rims
Stan's Flow S1, 29mm internal width
Tires
Front: Maxxis High Roller II, EXO TR, 27.5 x 2.4", Rear: Maxxis Minion DHR, EXO TR, 27.5" x 2.3"
Brakes
Brakes
SRAM Guide R, 180mm rotors
Brake Levers
SRAM Guide R
Cockpit
Stem
Production Privee R2R, 50mm length
Handlebar
Production Privee LGB, 780mm width
Seat
Saddle
SDG Duster
Seatpost
BikeYoke Revive dropper, 160mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM/MD | MD/LG | XL | XXL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.355 mm | 1.307 mm | 1.242 mm | 1.224 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 744 mm | 765 mm | 796 mm | 814 mm |
| Rake | 46 mm | 46 mm | 48 mm | 46 mm |
| Trail | 111 mm | 111 mm | 109 mm | 111 mm |
| Stack | 588 mm | 592 mm | 596 mm | 606 mm |
| Reach | 434 mm | 453 mm | 480 mm | 495 mm |
| Top Tube Length | 583 mm | 603 mm | 633 mm | 650 |
| Seat Tube Angle | 75.75 ° | 75.75 ° | 75.75 ° | 75.75 ° |
| Seat Tube Length | 400 mm | 430 mm | 460 mm | 495 mm |
| Head Tube Angle | 65.6 ° | 65.6 ° | 65.6 ° | 65.6 ° |
| Head Tube Length | 105 mm | 110 mm | 115 mm | 125 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1168 mm | 1189 mm | 1220 mm | 1238 mm |
| Bottom Bracket Drop | 14 mm | 14 mm | 14 mm | 14 mm |
| Wheels | 27" | 27" | 27" | 27" |
Model Overview
Shan N.5 GTR is part of the Productionprivee Shan model. Production Privee released 53 bikes variations of this model so far. Take a sneak peek at all Productionprivee Shan bikes models from 2018, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Trail bikes
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Production Privee Shan N.5 GTR it’s weighing 14.39 kg (31.72 lbs). At this weight, is considerably heavier than average. In short, the average Trail bike weight is 10.86% lower than this one.
Overview of components
Fork
The Shan N.5 GTR comes factory-installed with the Fox Performance Float 34 fork. This has a travel range of 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this bike is FOX Evol DPS Performance, with a travel distance of 140mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The Shan N.5 GTR 2018 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Shan N.5 GTR comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Dropper post
The Production Privee model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
