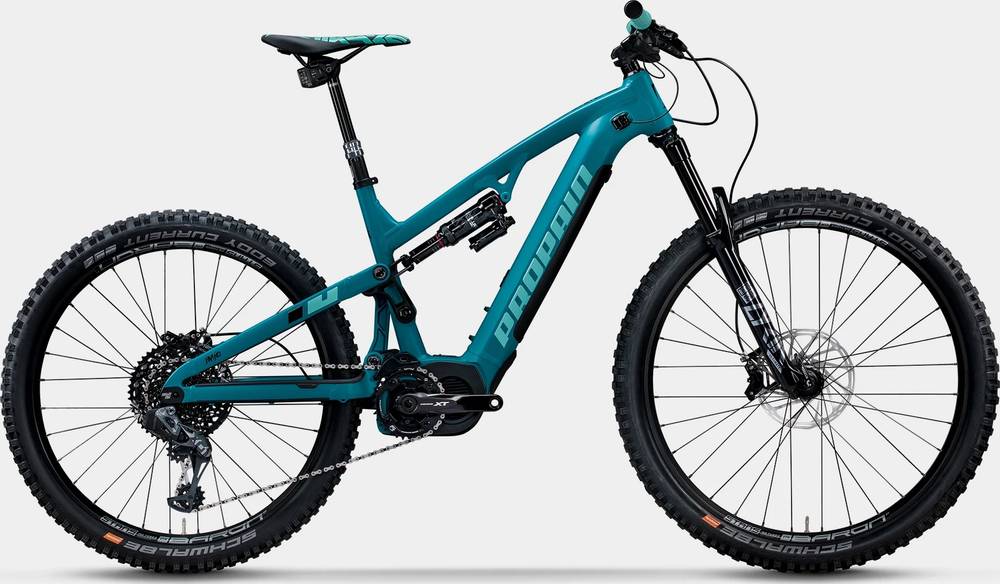

Propain Ekano 150 High End 2020
2020 E-bike
Weight | 23.1 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 170mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle, Shimano -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano BT-E8035 (504 Wh) -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
Fox 36 Factory Kashima 150mm
Rear Shock
Fox DPX2 Factory Kashima 150mm
Drivetrain
Rear Derailleur
SRAM AXS X01 Eagle (1×12)
Front Derailleur
none
Crank
Shimano E8050 165 mm / Eagle CR Alloy
Wheels
Rims
Propain ZTR Baron S1
Tires
Schwalbe Hans Dampf / Magic Mary
Brakes
Brakes
Magura MT7 203mm
Cockpit
Stem
SIXPACK Leader 50
Handlebar
SIXPACK Millenium Carbon 805
Seat
Saddle
SIXPACK Kamikaze
Seatpost
Fox Factory Transfer Kashima
Motor & Battery
Motor
Shimano 8000
Battery
Shimano BT-E8035 (504 Wh)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | SM High | MD High | MD Low | MD High | LG High | LG Low | LG High | XL High | XL Low | XL High |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.435 mm | 1.465 mm | 1.494 mm | 1.391 mm | 1.419 mm | 1.449 mm | 1.34 mm | 1.366 mm | 1.38 mm | 1.273 mm | 1.318 mm | 1.333 mm |
| Bottom Bracket Height | 339 mm | 349 mm | mm | 339 mm | 349 mm | mm | 339 mm | 349 mm | mm | 339 mm | 349 mm | mm |
| Front Center | 444 mm | 458 mm | 444 mm | 444 mm | 458 mm | 444 mm | 444 mm | 458 mm | 444 mm | 444 mm | 458 mm | 444 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 1302 mm | 1323 mm | 1323 mm | 1326 mm | 1348 mm | 1348 mm | 1348 mm | 1370 mm | 1366 mm | 1364 mm | 1392 mm | 1389 mm |
| Stack | 617 mm | 621 mm | 629 mm | 626 mm | 630 mm | 639 mm | 630 mm | 634 mm | 636 mm | 624 mm | 638 mm | 641 mm |
| Reach | 430 mm | 424 mm | 421 mm | 450 mm | 444 mm | 441 mm | 470 mm | 464 mm | 461 mm | 490 mm | 484 mm | 481 mm |
| Top Tube Length | 572 mm | 573 mm | 574 mm | 594 mm | 595 mm | 597 mm | 616 mm | 617 mm | 618 mm | 637 mm | 638 mm | 639 mm |
| Seat Tube Angle | 76.9 ° | 76.5 ° | 76.1 ° | 76.9 ° | 76.5 ° | 76.1 ° | 76.9 ° | 76.5 ° | 76.1 ° | 76.9 ° | 76 ° | 76.1 ° |
| Head Tube Angle | 65.9 ° | 65.5 ° | 65.1 ° | 65.9 ° | 65.5 ° | 65.1 ° | 65.9 ° | 65.5 ° | 65.1 ° | 65.9 ° | 65.5 ° | 65.1 ° |
| Head Tube Length | 110 mm | 110 mm | 110 mm | 120 mm | 120 mm | 120 mm | 125 mm | 125 mm | 125 mm | 130 mm | 130 mm | 130 mm |
| Chainstay Length | 445 mm | 459 mm | 445 mm | 445 mm | 459 mm | 445 mm | 445 mm | 459 mm | 445 mm | 445 mm | 459 mm | 445 mm |
| Bottom Bracket Drop | 16 mm | 25 mm | 16 mm | 16 mm | 25 mm | 16 mm | 16 mm | 25 mm | 16 mm | 16 mm | 25 mm | 16 mm |
| Wheels | 27" | 29" | 29" | 27" | 29" | 29" | 27" | 29" | 29" | 27" | 29" | 29" |
Model Overview
Ekano 150 High End is a Propain E Ekano model. Propain released 39 e-bikes variations of this model so far. You can easily view all of the Propain E Ekano e-bikes models from 2020, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro e-bikes average price
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Enduro e-bikes average weight
Enduro e-bikes have an average weight of 23.42 kg (51.63 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 23.1 kg (50.93 lbs), Propain e-bike is slightly lighter than average. In other words, this model is 1.39% lighter than the average Enduro e-bike.
Ekano 150 High End components
Fork
The Ekano 150 High End comes factory-installed with the Fox Factory Float 36 fork. This has a travel range of 170mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this e-bike is Fox DPX2 Factory Kashima 150mm, with a travel distance of 150mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
As for the wheels, Propain Ekano 150 High End 2020, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Ekano 150 High End has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
