Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Factory Float 36
-
Groupset XX1 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX Float 36 Factory, Kashima, GRIP2, low and high speed compression and rebound
Rear Shock
FOX DPX2 Factory, Kashima, 210mm x 55mm, 8x30mm upper mount, 8x25mm lower mount
Drivetrain
Rear Derailleur
SRAM XX1 Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM XX1 Eagle, 12-speed
Cassette
SRAM XG-1295 10-50 tooth, 12-speed
Crank
SRAM XX1 Carbon Eagle 175mm
Bottom Bracket
BSA 73mm
Chain
SRAM XX1 Eagle, black
Chain Guide
None included (upgrade options available)
Pedals
None included (upgrade options available)
Wheels
Front Hub
Industry Nine
Rear Hub
Industry Nine
Rims
Reynolds Black Label Carbon Enduro, 28mm inner width
Tires
Schwalbe Magic Mary EVO, SnakeSkin, Addix Soft, 27.5 x 2.35"
Brakes
Brakes
Magura MT7, 4-piston with 203mm front rotor and 180mm rear rotor
Brake Levers
Magura MT7
Cockpit
Stem
Sixpack Leader, 50mm length
Handlebar
Sixpack Millenium, carbon, 785mm width
Grips
Single clamp, nine color options available
Headset
IS42 top bearing, IS52 bottom bearing
Seat
Saddle
Selle Italia XR
Seatpost
FOX Factory Transfer, Kashima, 150mm dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.36 mm | 1.31 mm | 1.27 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm | 349 mm |
| Front Center | 732 mm | 761 mm | 784 mm | 808 mm |
| Rake | 41 mm | 40 mm | 40 mm | 42 mm |
| Trail | 121 mm | 122 mm | 122 mm | 119 mm |
| Stack | 593 mm | 602 mm | 608 mm | 612 mm |
| Reach | 418 mm | 443 mm | 464 mm | 483 mm |
| Top Tube Length | 571 mm | 597 mm | 620 mm | 642 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 420 mm | 445 mm | 470 mm | 490 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 110 mm | 120 mm | 125 mm | 130 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1180 mm | 1209 mm | 1232 mm | 1256 mm |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm | 6 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

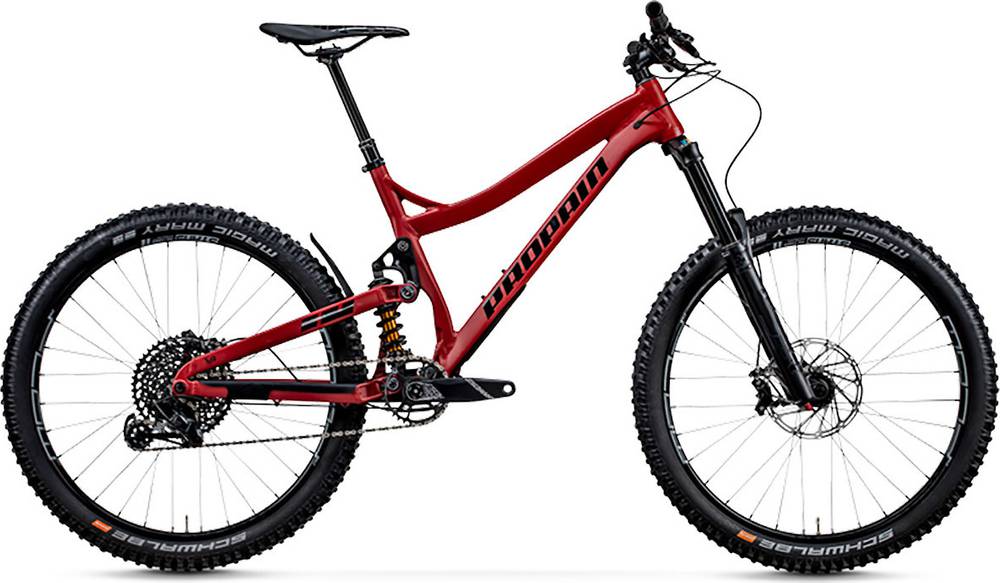

Tyee AL 27.5 Highend is a Propain Tyee model. There are 82 bikes that carry this model name. Take a sneak peek at all Propain Tyee bikes models from 2019, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro bikes average price
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Enduro bikes
Enduro bikes weigh an average of 14.27 kg (31.46 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 13.2 kg (29.1 lbs), Propain bike is a bit lighter than average. In other words, this model is 8.11% lighter than the average Enduro bike.
Tyee AL 27.5 Highend components
Fork
Propain Tyee AL 27.5 Highend 2019 bike is equipped with the Fox Factory Float 36 fork, and has 160mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The Tyee AL 27.5 Highend has a rear shock with a travel of 160mm. The model FOX DPX2 Factory is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The wheels on Tyee AL 27.5 Highend are the 27.5″ carbon type. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Tyee AL 27.5 Highend has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Propain Tyee AL 27.5 Highend bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Propain Tyee AL 27.5 Highend includes a dropper post. Therefore, climbing or descending will be a breeze.
