Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Factory Float 36
-
Groupset XX1 Eagle -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
MD
168cm - 180cm
LG
178cm - 189cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
Fox 36 Factory Kashima 170mm
Rear Shock
Fox Float X2 Factory 160mm
Drivetrain
Rear Derailleur
SRAM AXS XX1 Eagle (1×12)
Front Derailleur
keine
Cassette
SRAM XG1299 Eagle Rainbow
Crank
SRAM XX1 Eagle 175mm 32Z
Bottom Bracket
73 mm
Wheels
Rims
Reynolds Black Label Carbon Enduro
Tires
Schwalbe Magic Mary Addix Soft
Brakes
Brakes
Magura MT7 203mm
Cockpit
Stem
SIXPACK Millenium 45
Handlebar
SIXPACK Millenium Carbon 805
Seat
Saddle
SIXPACK Kamikaze
Seatpost
Fox Factory Transfer
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD | LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.398 mm | 1.397 mm | 1.356 mm | 1.357 mm | 1.317 mm | 1.32 mm |
| Bottom Bracket Height | 345 mm | 348 mm | 345 mm | 348 mm | 345 mm | 348 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Stack | 602.5 mm | 630 mm | 611.5 mm | 639 mm | 620.5 mm | 648 mm |
| Reach | 431 mm | 451 mm | 451 mm | 471 mm | 471 mm | 491 mm |
| Top Tube Length | 575 mm | 595 mm | 597 mm | 618 mm | 620 mm | 640 mm |
| Seat Tube Angle | 76.6 ° | 73.5 ° | 76.6 ° | 73.5 ° | 76.6 ° | 73.5 ° |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 110 mm | 105 mm | 120 mm | 115 mm | 130 mm | 125 mm |
| Chainstay Length | 430 mm | 445 mm | 430 mm | 445 mm | 430 mm | 445 mm |
| Bottom Bracket Drop | 10 mm | 26 mm | 10 mm | 26 mm | 10 mm | 26 mm |
| Wheels | 27" | 29" | 27" | 29" | 27" | 29" |
| Rider Min Height | 158 cm | 168 cm | 168 cm | 178 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 180 cm | 189 cm | 189 cm | 199 cm |
About this model

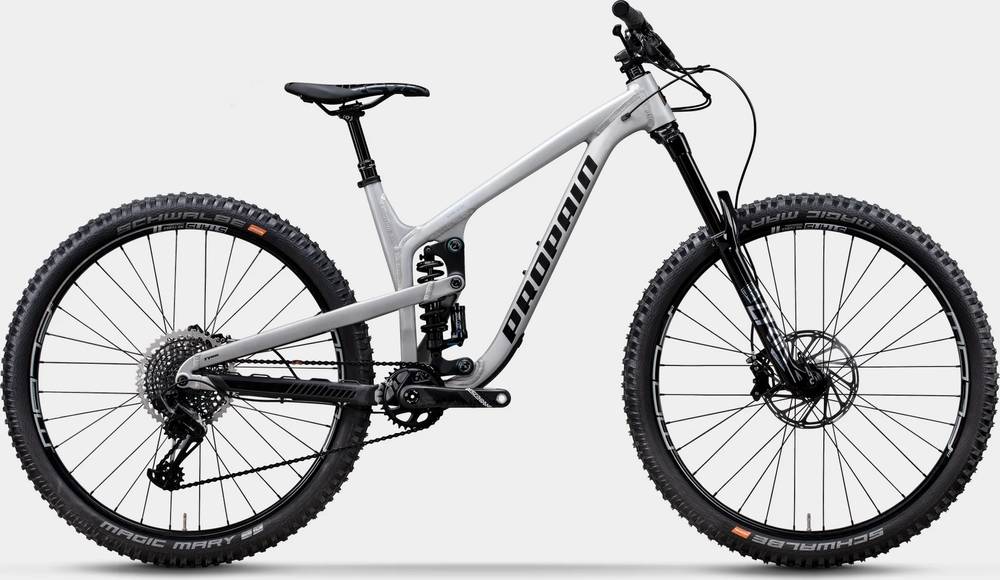

Tyee AL High End belongs to the Propain Tyee model. Propain released 82 bikes variations of this model so far. You can easily view all of the Propain Tyee bikes models from 2020, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro bikes average price
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork
The Tyee AL High End comes factory-installed with the Fox Factory Float 36 fork. This has a travel range of 170mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the Fox Float X2 Factory 160mm rear shock model, which has a travel of 160mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The Tyee AL High End 2020 bike is equipped with 27.5″ carbon wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Tyee AL High End comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Propain model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
