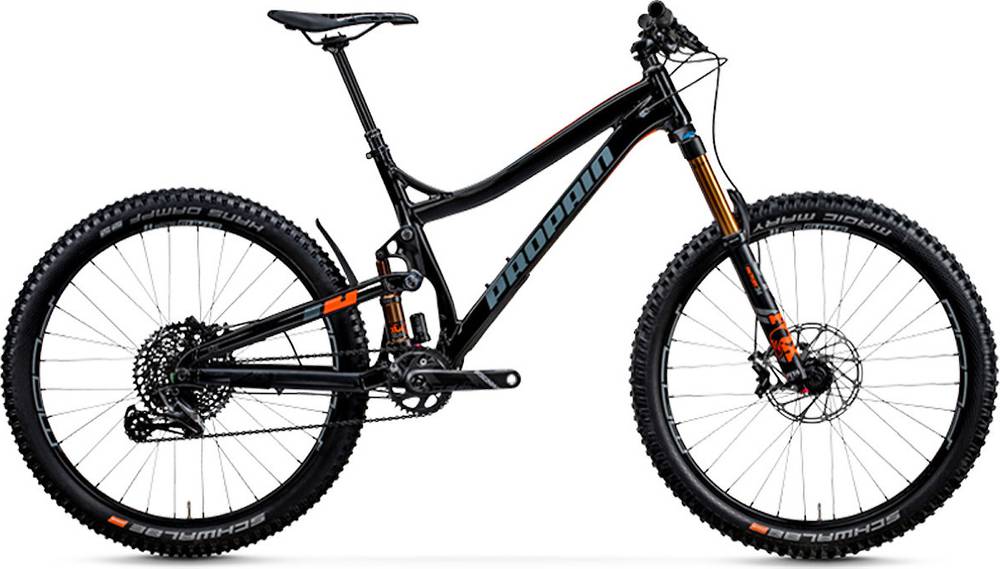

Propain Tyee AM AL 27.5 Highend 2019
2019 Mountain
Weight | 13.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 145mm -
Fork Fox Factory Float 34
-
Groupset XX1 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX Float 34 Factory, Kashima, GRIP2, low and high speed compression and rebound
Rear Shock
FOX DPX2 Factory, Kashima, 210mm x 55mm, 8x30mm upper mount, 8x25mm lower mount
Drivetrain
Rear Derailleur
SRAM XX1 Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM XX1 Eagle, 12-speed
Cassette
SRAM XG-1295 10-50 tooth, 12-speed
Crank
SRAM XX1 Carbon Eagle 175mm
Bottom Bracket
BSA 73mm
Chain
SRAM XX1 Eagle, black
Chain Guide
None included (upgrade options available)
Pedals
None included (upgrade options available)
Wheels
Front Hub
Industry Nine
Rear Hub
Industry Nine
Rims
Reynolds Black Label Carbon Enduro, 28mm inner width
Tires
Schwalbe Magic Mary EVO, SnakeSkin, Addix Soft, 27.5 x 2.35"
Brakes
Brakes
Magura MT7, 4-piston with 203mm front rotor and 180mm rear rotor
Brake Levers
Magura MT7
Cockpit
Stem
Sixpack Leader, 50mm length
Handlebar
Sixpack Millenium, carbon, 785mm width
Grips
Single clamp, nine color options available
Headset
IS42 top bearing, IS52 bottom bearing
Seat
Saddle
Selle Italia XR
Seatpost
FOX Factory Transfer, Kashima, 150mm dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.33 mm | 1.29 mm | 1.25 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm |
| Front Center | 729 mm | 758 mm | 781 mm | 805 mm |
| Rake | 42 mm | 40 mm | 40 mm | 45 mm |
| Trail | 116 mm | 118 mm | 118 mm | 113 mm |
| Stack | 590 mm | 599 mm | 605 mm | 609 mm |
| Reach | 422 mm | 450 mm | 470 mm | 487 mm |
| Top Tube Length | 569 mm | 595 mm | 617 mm | 644 mm |
| Seat Tube Angle | 75.7 ° | 76.3 ° | 76.3 ° | 76.3 ° |
| Seat Tube Length | 420 mm | 445 mm | 470 mm | 490 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 110 mm | 120 mm | 125 mm | 130 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1177 mm | 1206 mm | 1229 mm | 1253 mm |
| Bottom Bracket Drop | 9 mm | 9 mm | 9 mm | 9 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Tyee AM AL 27.5 Highend is part of the Propain Tyee model. Propain launched 82 bikes of this model so far. Take a sneak peek at all Propain Tyee bikes models from 2019, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Trail bikes average weight
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 13.2 kg (29.1 lbs), the Tyee AM AL 27.5 Highend model is slightly heavier than average. In other words, this model is 1.69% heavier than the average Trail bike.
Tyee AM AL 27.5 Highend components
Fork
This bike has the Fox Factory Float 34 fork installed. The fork’s travel is 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The Tyee AM AL 27.5 Highend has a rear shock with a travel of 145mm. The model FOX DPX2 Factory is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the Tyee AM AL 27.5 Highend bike is equipped with the 27.5″ carbon model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Propain Tyee AM AL 27.5 Highend bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Propain Tyee AM AL 27.5 Highend comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
