Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 145mm -
Fork RockShox Reba
-
Groupset GX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
RockShox Reba RL SoloAir
Rear Shock
RockShox Deluxe RL DebonAir, 210mm x 50mm
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM XG1275, 10-50 tooth, 12-speed
Crank
Truvativ Descendant Eagle, 175mm length
Bottom Bracket
BSA 73mm
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Propain ZTR Rapid 25
Rear Hub
Propain ZTR Rapid 25
Rims
Propain ZTR Rapid 25
Tires
Schwalbe Hans Dampf, Addix Soft, 27.5" x 2.35"
Brakes
Brakes
Formula Cura, 203mm front rotor, 180mm rear rotor
Brake Levers
Formula Cura
Cockpit
Stem
Sixpack Leader, 50mm length
Handlebar
Sixpack Kamikaze, 780mm width
Headset
Tapered, IS42 top, IS52 bottom
Seat
Saddle
Selle Italia Q-Bik Flow
Seatpost
Bikeyoke Revive dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.37 mm | 1.32 mm | 1.3 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm | 349 mm |
| Front Center | 717 mm | 737 mm | 757 mm | 783 mm |
| Rake | 45 mm | 45 mm | 43 mm | 39 mm |
| Trail | 109 mm | 109 mm | 111 mm | 116 mm |
| Stack | 584 mm | 592 mm | 597 mm | 614 mm |
| Reach | 415 mm | 431 mm | 451 mm | 474 mm |
| Top Tube Length | 568 mm | 588 mm | 608 mm | 634 mm |
| Seat Tube Angle | 75.7 ° | 75.7 ° | 75.7 ° | 75.7 ° |
| Seat Tube Length | 420 mm | 445 mm | 470 mm | 490 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 110 mm | 120 mm | 125 mm | 135 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1165 mm | 1185 mm | 1205 mm | 1231 mm |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm | 6 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

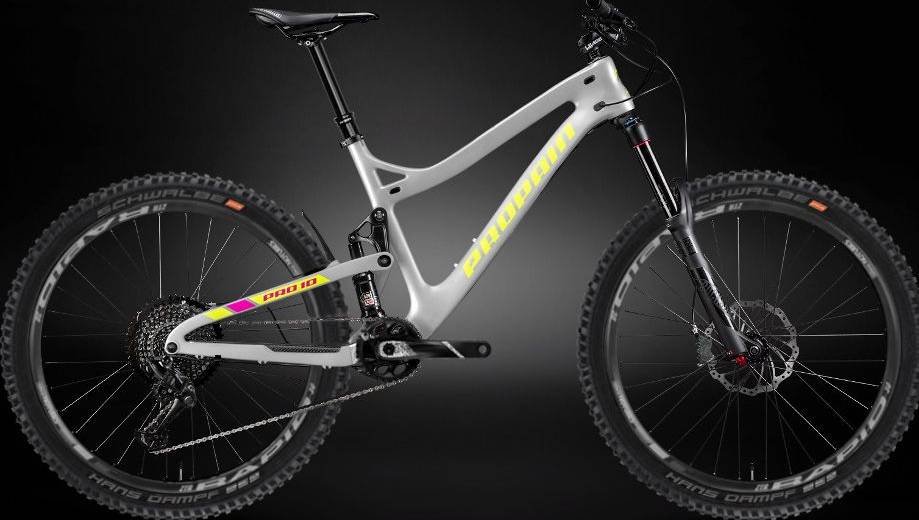

Tyee AM Carbon Comp is a Propain Tyee model. Propain released 82 bikes variations of this model so far. Take a sneak peek at all Propain Tyee bikes models from 2018, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Trail bikes average weight
Trail bikes have an average weight of 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
slightly heavier than average, Tyee AM Carbon Comp has a weight of 13.2 kg (29.1 lbs). In short, the average Trail bike weight is 1.69% lower than this one.
Tyee AM Carbon Comp components
Fork
The fork installed on this bike is the RockShox Reba model. The travel on this model is 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Propain Tyee AM Carbon Comp bike has the RockShox Deluxe RL DebonAir model installed, and has a travel of 145mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The Tyee AM Carbon Comp 2018 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Tyee AM Carbon Comp has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Propain Tyee AM Carbon Comp bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Propain Tyee AM Carbon Comp includes a dropper post. Therefore, climbing or descending will be a breeze.
