Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 145mm -
Fork RockShox Pike RCT3
-
Groupset X01 Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
RockShox Pike RCT3 DebonAir
Rear Shock
RockShox Super Deluxe RC3, 210mm x 50mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM X01 Eagle, 12-speed
Cassette
SRAM XG1275, 10-50 tooth, 12-speed
Crank
Truvativ Descendant Eagle, 175mm length
Bottom Bracket
BSA 73mm
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Propain ZTR Flow MK 3
Rear Hub
Propain ZTR Flow MK 3
Rims
Propain ZTR Flow MK 3
Tires
Schwalbe Hans Dampf, Addix Soft, 27.5" x 2.35"
Brakes
Brakes
Magura MT Trail Sport, 203mm front rotor, 180mm rear rotor
Brake Levers
Magura MT Trail Sport
Cockpit
Stem
Sixpack Leader, 50mm length
Handlebar
Sixpack Kamikaze, 780mm width
Headset
Tapered, IS42 top, IS52 bottom
Seat
Saddle
Selle Italia XR
Seatpost
Bikeyoke Revive dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.37 mm | 1.32 mm | 1.3 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm | 349 mm |
| Front Center | 717 mm | 737 mm | 757 mm | 783 mm |
| Rake | 45 mm | 45 mm | 43 mm | 39 mm |
| Trail | 109 mm | 109 mm | 111 mm | 116 mm |
| Stack | 584 mm | 592 mm | 597 mm | 614 mm |
| Reach | 415 mm | 431 mm | 451 mm | 474 mm |
| Top Tube Length | 568 mm | 588 mm | 608 mm | 634 mm |
| Seat Tube Angle | 75.7 ° | 75.7 ° | 75.7 ° | 75.7 ° |
| Seat Tube Length | 420 mm | 445 mm | 470 mm | 490 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 110 mm | 120 mm | 125 mm | 135 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1165 mm | 1185 mm | 1205 mm | 1231 mm |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm | 6 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

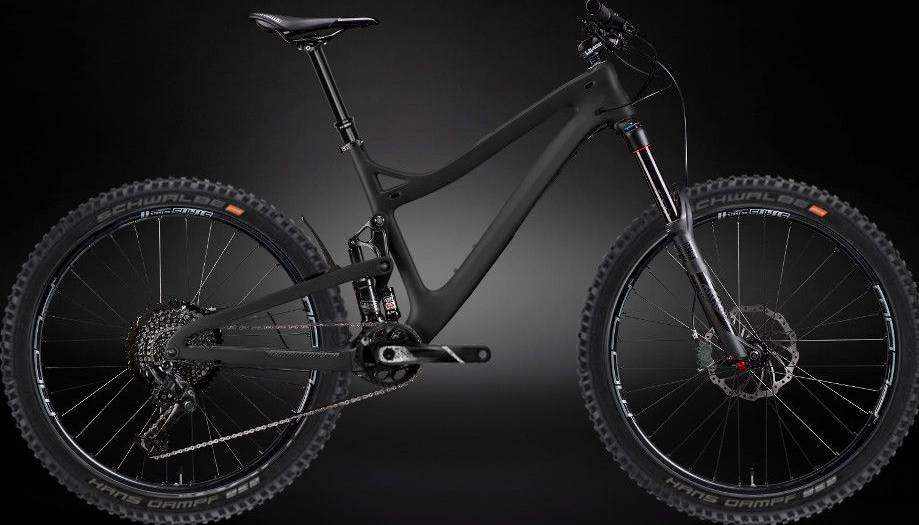

Tyee AM Carbon Trail completes the Propain Tyee model. Propain launched 82 bikes of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Trail bikes average weight
Trail bikes weigh an average of 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Propain Tyee AM Carbon Trail it’s weighing 12.8 kg (28.22 lbs). At this weight, is slightly lighter than average. To sum up, it’s 1.41% lighter than the average weight of Trail bikes.
Overview of components
Fork
The Tyee AM Carbon Trail comes factory-installed with the RockShox Pike RCT3 fork. This has a travel range of 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The Tyee AM Carbon Trail has a rear shock with a travel of 145mm. The model RockShox Super Deluxe RC3 is the one installed in this bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The Tyee AM Carbon Trail 2018 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Propain Tyee AM Carbon Trail has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Propain Tyee AM Carbon Trail bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Propain Tyee AM Carbon Trail comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
