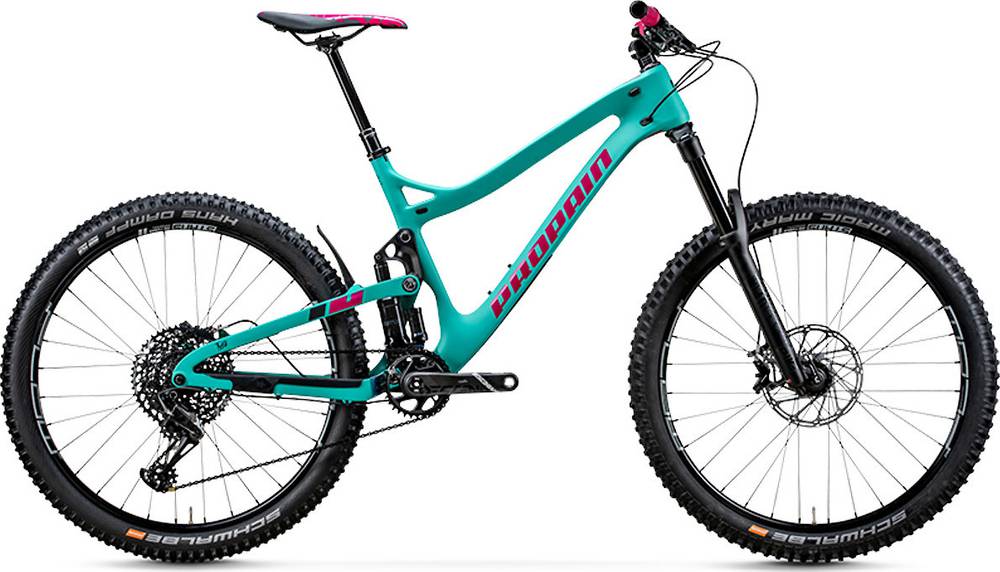

Propain Tyee AM CF 27.5 Highend 2019
2019 Mountain
Weight | 12.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 145mm -
Fork Fox Factory Float 34
-
Groupset XX1 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX Float 34 Factory, Kashima, GRIP2, low and high speed compression and rebound
Rear Shock
FOX DPX2 Factory, Kashima, 210mm x 50mm, 8x30mm upper mount, 8x25mm lower mount
Drivetrain
Rear Derailleur
SRAM XX1 Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM XX1 Eagle, 12-speed
Cassette
SRAM XG-1295 10-50 tooth, 12-speed
Crank
SRAM XX1 Carbon Eagle 175mm
Bottom Bracket
BSA 73mm
Chain
SRAM XX1 Eagle, black
Chain Guide
None included (upgrade options available)
Pedals
None included (upgrade options available)
Wheels
Front Hub
Industry Nine
Rear Hub
Industry Nine
Rims
Reynolds Black Label Carbon Enduro, 28mm inner width
Tires
Schwalbe Hans Dampf EVO, SnakeSkin, Addix Soft, 27.5 x 2.35"
Brakes
Brakes
Magura MT7, 4-piston with 203mm front rotor and 180mm rear rotor
Brake Levers
Magura MT7
Cockpit
Stem
Sixpack Leader, 50mm length
Handlebar
Sixpack Millenium, carbon, 785mm width
Grips
Single clamp, nine color options available
Headset
IS42 top bearing, IS52 bottom bearing
Seat
Saddle
Selle Italia XR
Seatpost
FOX Factory Transfer, Kashima, 150mm dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.33 mm | 1.29 mm | 1.26 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm |
| Front Center | 728 mm | 757 mm | 779 mm | 804 mm |
| Rake | 41 mm | 42 mm | 40 mm | 40 mm |
| Trail | 117 mm | 116 mm | 118 mm | 118 mm |
| Stack | 589 mm | 595 mm | 605 mm | 615 mm |
| Reach | 423 mm | 448 mm | 468 mm | 488 mm |
| Top Tube Length | 569 mm | 599 mm | 617 mm | 644 mm |
| Seat Tube Angle | 76.3 ° | 76.3 ° | 76.3 ° | 76.3 ° |
| Seat Tube Length | 420 mm | 445 mm | 470 mm | 490 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1176 mm | 1205 mm | 1227 mm | 1252 mm |
| Bottom Bracket Drop | 9 mm | 9 mm | 9 mm | 9 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Tyee AM CF 27.5 Highend belongs to the Propain Tyee model. Propain released 82 bikes variations of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Trail bikes
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 12.6 kg (27.78 lbs), the Tyee AM CF 27.5 Highend model is slightly lighter than average. In conclusion, the average Trail bike weighs 3.02% more than Tyee AM CF 27.5 Highend.
Overview of components
Fork
The Fox Factory Float 34 is included from the factory. It has a travel distance of 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this bike is FOX DPX2 Factory, with a travel distance of 145mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
As for the wheels, Propain Tyee AM CF 27.5 Highend 2019, has a 27.5″ carbon model. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Propain Tyee AM CF 27.5 Highend has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Tyee AM CF 27.5 Highend comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
The Propain model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
