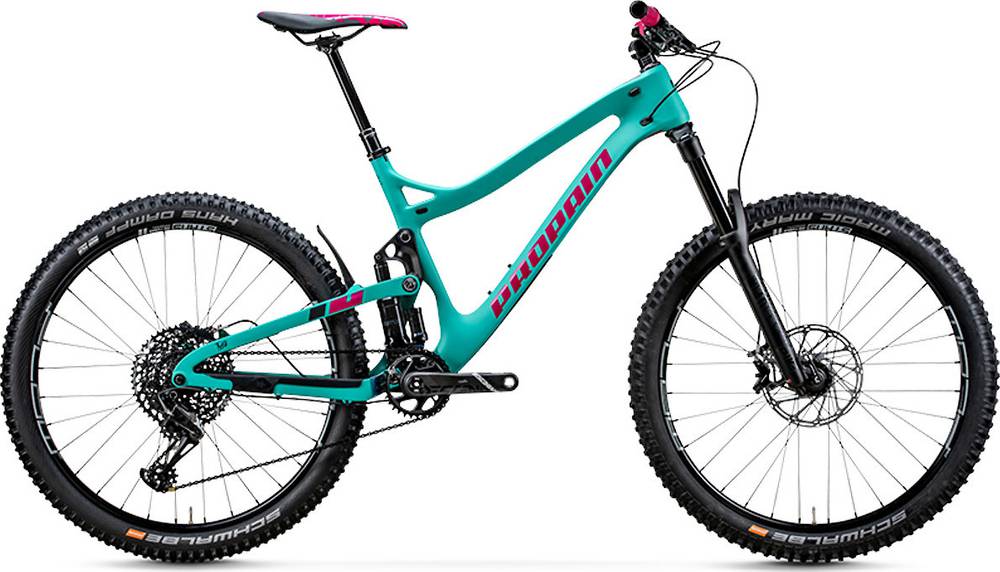

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 145mm -
Fork RockShox Revelation RC
-
Groupset GX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
RockShox Revelation RC Air, Motion Control, rebound, compression
Rear Shock
RockShox Deluxe R, 210mm x 50mm, 8x30mm upper mount, 8x25mm lower mount
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM XG-1275 10-50 tooth, 12-speed
Crank
Truvativ Descendant Eagle 175mm
Bottom Bracket
BSA 73mm
Chain
SRAM GX Eagle
Chain Guide
None included (upgrade options available)
Pedals
None included (upgrade options available)
Wheels
Front Hub
Propain, Enduro bearings
Rear Hub
Propain, Enduro bearings
Rims
Stan's ZTR Flow S1, 29mm inner width
Spokes
DT Swiss Competition
Tires
Schwalbe Hans Dampf EVO, SnakeSkin, Addix Soft, 27.5 x 2.35"
Brakes
Brakes
Formula Cura, 2-piston with 203mm front rotor and 180mm rear rotor
Brake Levers
Formula Cura
Cockpit
Stem
Sixpack Leader, 50mm length
Handlebar
Sixpack Millenium, 785mm width
Grips
Single clamp, nine color options available
Headset
IS42 top bearing, IS52 bottom bearing
Seat
Saddle
Sixpack Kamikaze
Seatpost
Sixpack Menace
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.33 mm | 1.29 mm | 1.26 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm |
| Front Center | 728 mm | 757 mm | 779 mm | 804 mm |
| Rake | 41 mm | 42 mm | 40 mm | 40 mm |
| Trail | 117 mm | 116 mm | 118 mm | 118 mm |
| Stack | 589 mm | 595 mm | 605 mm | 615 mm |
| Reach | 423 mm | 448 mm | 468 mm | 488 mm |
| Top Tube Length | 569 mm | 599 mm | 617 mm | 644 mm |
| Seat Tube Angle | 76.3 ° | 76.3 ° | 76.3 ° | 76.3 ° |
| Seat Tube Length | 420 mm | 445 mm | 470 mm | 490 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1176 mm | 1205 mm | 1227 mm | 1252 mm |
| Bottom Bracket Drop | 9 mm | 9 mm | 9 mm | 9 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Tyee AM CF 27.5 Start completes the Propain Tyee model. 82 bikes variations carry this model name so far. You can easily view all of the Propain Tyee bikes models from 2019, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Trail bikes average weight
Trail bikes have an average weight of 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 13.2 kg (29.1 lbs), Propain bike is slightly heavier than average. To sum up, it’s 1.69% heavier than the average weight of Trail bikes.
Tyee AM CF 27.5 Start components
Fork
Propain Tyee AM CF 27.5 Start 2019 bike is equipped with the RockShox Revelation RC fork, and has 150mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is RockShox Deluxe R, with a travel distance of 145mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The wheels on Tyee AM CF 27.5 Start are the 27.5″ aluminum type. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Tyee AM CF 27.5 Start comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Propain Tyee AM CF 27.5 Start bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
