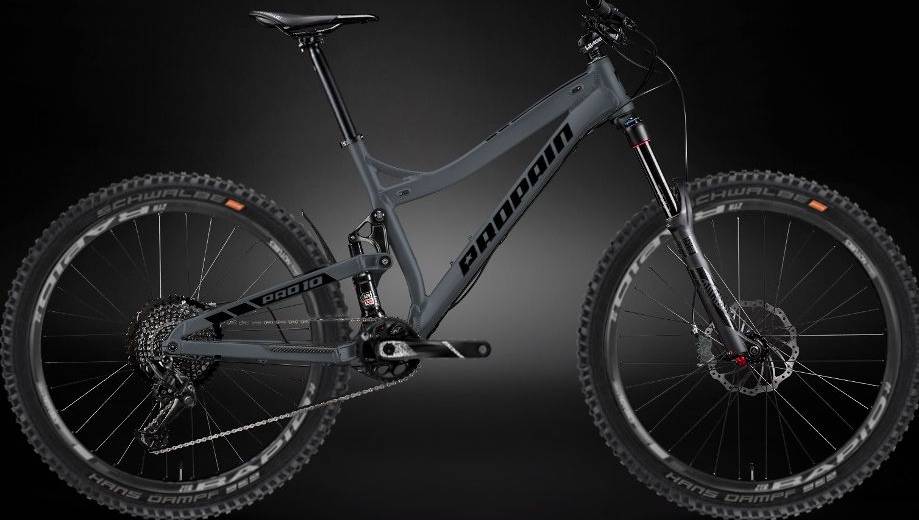

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 145mm -
Fork RockShox Reba
-
Groupset GX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Reba RL SoloAir
Rear Shock
RockShox Deluxe RL DebonAir, 210mm x 50mm
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM XG1275, 10-50 tooth, 12-speed
Crank
Truvativ Descendant Eagle, 175mm length
Bottom Bracket
BSA 73mm
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Propain ZTR Rapid 25
Rear Hub
Propain ZTR Rapid 25
Rims
Propain ZTR Rapid 25
Tires
Schwalbe Hans Dampf, Addix Soft, 27.5" x 2.35"
Brakes
Brakes
Formula Cura, 203mm front rotor, 180mm rear rotor
Brake Levers
Formula Cura
Cockpit
Stem
Sixpack Leader, 50mm length
Handlebar
Sixpack Kamikaze, 780mm width
Headset
Tapered, IS42 top, IS52 bottom
Seat
Saddle
Selle Italia XR
Seatpost
Truvativ Hussefelt, 350mm length, black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.43 mm | 1.39 mm | 1.33 mm | 1.29 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm | 349 mm | 349 mm |
| Front Center | 693 mm | 717 mm | 737 mm | 757 mm | 781 mm |
| Rake | 39 mm | 40 mm | 39 mm | 39 mm | 39 mm |
| Trail | 116 mm | 114 mm | 116 mm | 116 mm | 116 mm |
| Stack | 583 mm | 583 mm | 592 mm | 592 mm | 601 mm |
| Reach | 386 mm | 409 mm | 426 mm | 446 mm | 466 mm |
| Top Tube Length | 535 mm | 560 mm | 580 mm | 600 mm | 624 mm |
| Seat Tube Angle | 75.7 ° | 75.7 ° | 75.7 ° | 75.7 ° | 75.7 ° |
| Seat Tube Length | 395 mm | 420 mm | 445 mm | 470 mm | 495 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 120 mm | 130 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1133 mm | 1157 mm | 1177 mm | 1197 mm | 1221 mm |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm | 6 mm | 6 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Tyee AM Comp is a Propain Tyee model. 82 bikes variations carry this model name so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Trail bikes
The average weight for Trail bikes is 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Tyee AM Comp weighs 14 kg (30.86 lbs) and is a bit heavier than the average. To sum up, it’s 7.86% heavier than the average weight of Trail bikes.
Overview of components
Fork
The Tyee AM Comp comes factory-installed with the RockShox Reba fork. This has a travel range of 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the RockShox Deluxe RL DebonAir rear shock model, which has a travel of 145mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When it comes to wheels, the Tyee AM Comp bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Propain Tyee AM Comp is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
