Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 145mm -
Fork RockShox Pike RCT3
-
Groupset X01 Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Pike RCT3 DebonAir
Rear Shock
RockShox Super Deluxe RC3, 210mm x 50mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM X01 Eagle, 12-speed
Cassette
SRAM XG1275, 10-50 tooth, 12-speed
Crank
Truvativ Descendant Eagle, 175mm length
Bottom Bracket
BSA 73mm
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Propain ZTR Flow MK 3
Rear Hub
Propain ZTR Flow MK 3
Rims
Propain ZTR Flow MK 3
Tires
Schwalbe Hans Dampf, Addix Soft, 27.5" x 2.35"
Brakes
Brakes
Magura MT Trail Sport, 203mm front rotor, 180mm rear rotor
Brake Levers
Magura MT Trail Sport
Cockpit
Stem
Sixpack Leader, 50mm length
Handlebar
Sixpack Kamikaze, 780mm width
Headset
Tapered, IS42 top, IS52 bottom
Seat
Saddle
Selle Italia XR
Seatpost
Bikeyoke Revive dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.43 mm | 1.39 mm | 1.33 mm | 1.29 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm | 349 mm | 349 mm |
| Front Center | 693 mm | 717 mm | 737 mm | 757 mm | 781 mm |
| Rake | 39 mm | 40 mm | 39 mm | 39 mm | 39 mm |
| Trail | 116 mm | 114 mm | 116 mm | 116 mm | 116 mm |
| Stack | 583 mm | 583 mm | 592 mm | 592 mm | 601 mm |
| Reach | 386 mm | 409 mm | 426 mm | 446 mm | 466 mm |
| Top Tube Length | 535 mm | 560 mm | 580 mm | 600 mm | 624 mm |
| Seat Tube Angle | 75.7 ° | 75.7 ° | 75.7 ° | 75.7 ° | 75.7 ° |
| Seat Tube Length | 395 mm | 420 mm | 445 mm | 470 mm | 495 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 120 mm | 130 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1133 mm | 1157 mm | 1177 mm | 1197 mm | 1221 mm |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm | 6 mm | 6 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |

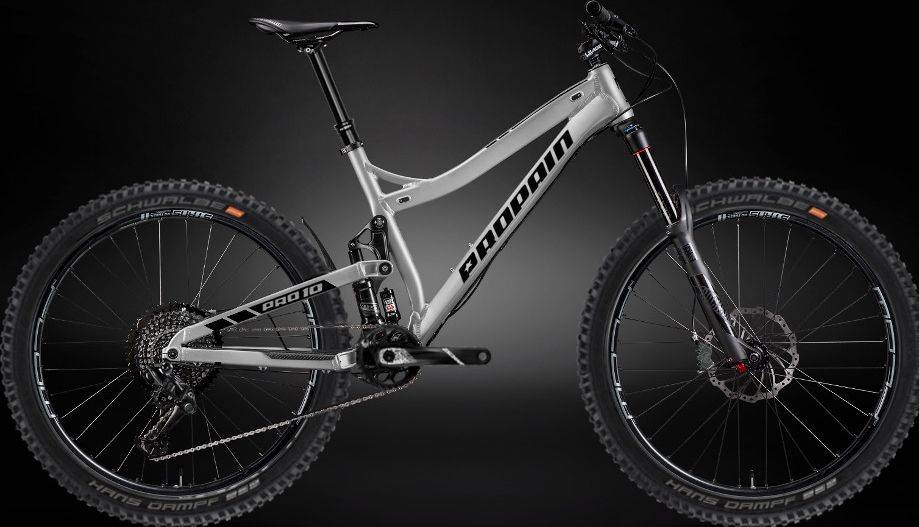

Model Overview
Tyee AM Trail is part of the Propain Tyee model. Propain released 82 bikes variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Trail bikes
Trail bikes have an average weight of 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Tyee AM Trail weighs 13.6 kg (29.98 lbs) and is slightly heavier than the average. In other words, this model is 4.78% heavier than the average Trail bike.
Tyee AM Trail components
Fork
The fork installed on this bike is the RockShox Pike RCT3 model. The travel on this model is 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this bike has the RockShox Super Deluxe RC3 model, with a travel of 145mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When leaving the production line, the Tyee AM Trail model has 27.5″ aluminum wheels. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Tyee AM Trail comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The Propain model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
