Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Factory Float 36
-
Groupset XX1 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX Float 36 Factory, Kashima, GRIP2, low and high speed compression and rebound
Rear Shock
FOX DPX2 Factory, Kashima, 210mm x 55mm, 8x30mm upper mount, 8x25mm lower mount
Drivetrain
Rear Derailleur
SRAM XX1 Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM XX1 Eagle, 12-speed
Cassette
SRAM XG-1295 10-50 tooth, 12-speed
Crank
SRAM XX1 Carbon Eagle 175mm
Bottom Bracket
BSA 73mm
Chain
SRAM XX1 Eagle, black
Chain Guide
None included (upgrade options available)
Pedals
None included (upgrade options available)
Wheels
Front Hub
Industry Nine
Rear Hub
Industry Nine
Rims
Reynolds Black Label Carbon Enduro, 28mm inner width
Tires
Schwalbe Magic Mary EVO, SnakeSkin, Addix Soft, 27.5 x 2.35"
Brakes
Brakes
Magura MT7, 4-piston with 203mm front rotor and 180mm rear rotor
Brake Levers
Magura MT7
Cockpit
Stem
Sixpack Leader, 50mm length
Handlebar
Sixpack Millenium, carbon, 785mm width
Grips
Single clamp, nine color options available
Headset
IS42 top bearing, IS52 bottom bearing
Seat
Saddle
Selle Italia XR
Seatpost
FOX Factory Transfer, Kashima, 150mm dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.36 mm | 1.31 mm | 1.28 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm | 349 mm |
| Front Center | 732 mm | 761 mm | 784 mm | 808 mm |
| Rake | 41 mm | 40 mm | 41 mm | 40 mm |
| Trail | 121 mm | 122 mm | 121 mm | 122 mm |
| Stack | 593 mm | 603 mm | 608 mm | 619 mm |
| Reach | 418 mm | 443 mm | 463 mm | 483 mm |
| Top Tube Length | 571 mm | 599 mm | 620 mm | 645 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 420 mm | 445 mm | 470 mm | 790 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1180 mm | 1209 mm | 1232 mm | 1256 mm |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm | 6 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

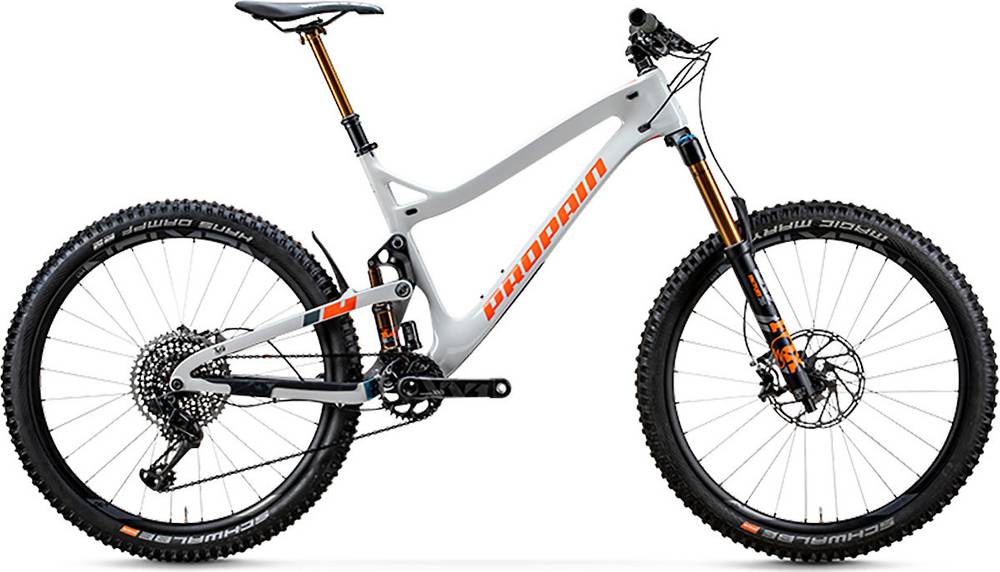

Tyee CF 27.5 Highend is a Propain Tyee model. Propain launched 82 bikes of this model so far. You can easily view all of the Propain Tyee bikes models from 2019, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro bikes average price
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Enduro bikes average weight
If we make a quick analysis of the average weight of an Enduro bike, we get 14.27 kg (31.46 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Tyee CF 27.5 Highend weighs 12.8 kg (28.22 lbs) and is considerably lighter than the average. In conclusion, the average Enduro bike weighs 11.48% more than Tyee CF 27.5 Highend.
Tyee CF 27.5 Highend components
Fork
Propain Tyee CF 27.5 Highend 2019 bike is equipped with the Fox Factory Float 36 fork, and has 160mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this bike has the FOX DPX2 Factory model, with a travel of 160mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the Tyee CF 27.5 Highend bike is equipped with the 27.5″ carbon model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Propain Tyee CF 27.5 Highend has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Propain Tyee CF 27.5 Highend includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
