Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Pike RCT3
-
Groupset X01, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
RockShox Pike RCT3 Solo Air
Rear Shock
RockShox Deluxe RT3, metric
Drivetrain
Rear Derailleur
SRAM Eagle X01, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM Eagle X01, 12-speed
Cassette
SRAM XG-1295, 10-50 tooth
Crank
SRAM X1 Eagle Carbon, boost spacing, 170mm length
Bottom Bracket
SRAM GXP, threaded
Chain
SRAM X01 Eagle, 12-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Deed hubs
Rear Hub
Deed hubs
Rims
Race Face ARC 30, 30mm inner width, welded
Tires
Maxxis Minion DHF / DHR II 2.4" 3C EXO, tubeless ready
Brakes
Brakes
SRAM Code RSC, 200mm front / 180mm rear rotors
Brake Levers
SRAM Code RSC
Cockpit
Stem
Renthal Apex, 35mm
Handlebar
Renthal Fatbar, alloy, 800mm width
Grips
Race Face Half Nelson, lock-on
Headset
Cane Creek 40 Series, zero-stack, ZS44 top, ZS56 bottom
Seat
Saddle
Kore Fazer SL
Seatpost
Bikeyoke Revive, trigger remote, 160mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD High | LG High |
|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.31 mm |
| Bottom Bracket Height | 340 mm | 340 mm |
| Stack | 600 mm | 610 mm |
| Reach | 443 mm | 466 mm |
| Top Tube Length | 596 mm | 623 mm |
| Seat Tube Angle | 75.7 ° | 75.7 ° |
| Seat Tube Length | 430 mm | 470 mm |
| Head Tube Angle | 66.1 ° | 66.1 ° |
| Head Tube Length | 110 mm | 120 mm |
| Chainstay Length | 428 mm | 428 mm |
| Wheelbase | 1200 mm | 1227 mm |
| Bottom Bracket Drop | 15 mm | 15 mm |
| Standover Height | 692 mm | 713 mm |
| Wheels | 27" | 27" |
Model Overview

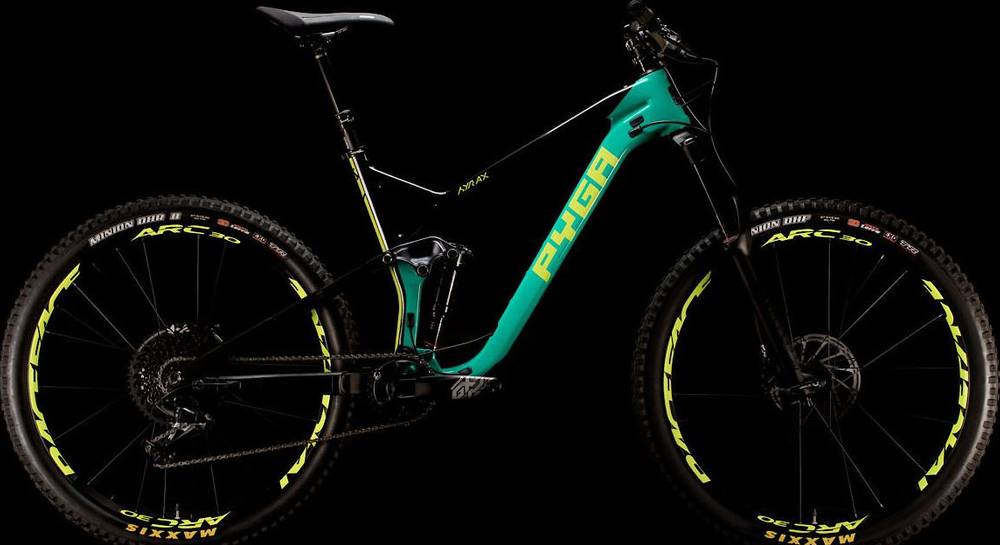

Hyrax X01 Eagle is part of the Pyga Hyrax model. There are 3 bikes that carry this model name. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork
The RockShox Pike RCT3 is included from the factory. It has a travel distance of 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Hyrax X01 Eagle has a rear shock with a travel of 140mm. The model RockShox Deluxe RT3 is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the Hyrax X01 Eagle bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Hyrax X01 Eagle comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Dropper post
Pyga Hyrax X01 Eagle comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
