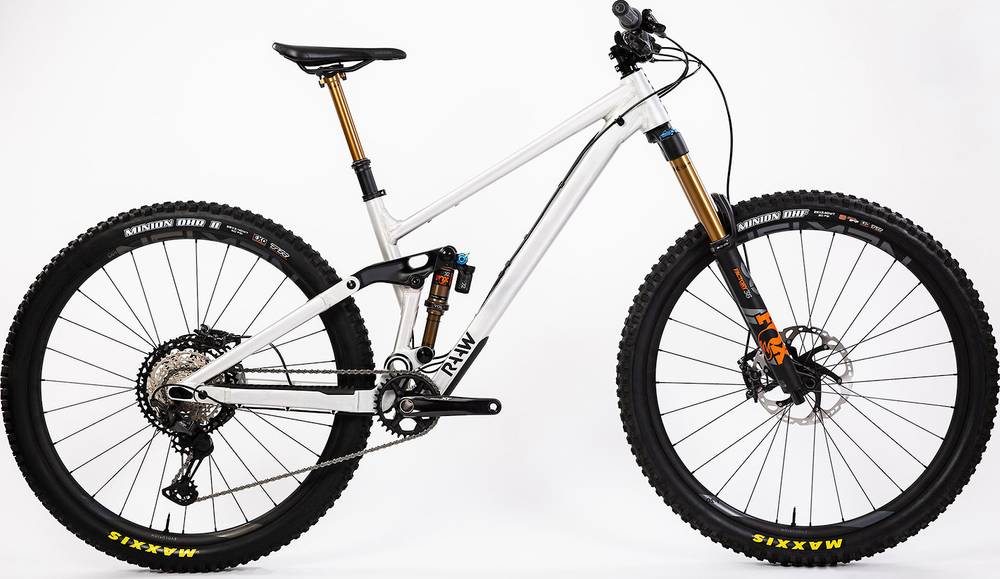

RAAW Madonna V2 FOX Factory XT 2020
2020 Mountain
Estimate price |
5,062$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Factory Float 38
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX FLOAT 38 Factory, GRIP2 damper, 44mm offset
Rear Shock
FOX FLOAT DPX2 Factory, Options: FOX FLOAT X2 Factory, FOX DHX2 Factory, Standard-mount dimensions: 205mm x 60mm, Trunnion-mount dimensions: 205mm x 65mm
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, 12-speed
Front Derailleur
N/A
Shift Levers
Shimano Deore XT M8100, 12-speed
Cassette
Shimano Deore XT M8100, 12-speed, 10-51 tooth
Crank
Shimano Deore XT M8100, 170mm length
Bottom Bracket
Shimano Deore XT M8100, 73mm BSA threaded
Chain
Shimano Deore XT M8100, 12-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Newmen Evolution A.30 wheelset, 6-bolt rotor mounts, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rear Hub
Newmen Evolution A.30 wheelset, 6-bolt rotor mounts, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rims
Newmen Evolution A.30 wheelset, tubeless
Spokes
Newmen Evolution A.30 wheelset
Tires
Front: Maxxis Minion DHF, 3C MaxxTerra, EXO+, TR, 29" x 2.5" WT, Rear: Maxxis Minion DHR II, 3C MaxxTerra, EXO+, TR, 29" x 2.4" WT
Brakes
Brakes
Shimano Deore XT M8120, 4-piston, Shimano RT86 203mm 6-bolt rotors
Brake Levers
Shimano Deore XT M8120
Cockpit
Stem
ACROS, 40mm or 50mm length
Handlebar
ACROS, aluminum, 780mm width, 25mm rise
Grips
Ergon GD1 Evo Factory Slim, Frozen Stealth
Headset
ACROS, ZS44 upper, ZS56 lower
Seat
Saddle
Ergon SM Enduro Men, M/L
Seatpost
FOX Transfer Factory dropper; choice of 125mm, 150mm, or 175mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.42 mm | 1.37 mm | 1.33 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Stack | 616 mm | 638 mm | 652 mm | 665 mm |
| Reach | 425 mm | 450 mm | 475 mm | 500 mm |
| Top Tube Length | 568 mm | 591 mm | 612 mm | 640 mm |
| Seat Tube Angle | 77 ° | 77.6 ° | 78.2 ° | 78.2 ° |
| Seat Tube Length | 395 mm | 420 mm | 445 mm | 470 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 100 mm | 115 mm | 130 mm | 145 mm |
| Chainstay Length | 435 mm | 435 mm | 440 mm | 445 mm |
| Wheelbase | 1192 mm | 1228 mm | 1264 mm | 1300 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Madonna V2 FOX Factory XT is a Raaw Madonna model. 2 bikes variations carry this model name so far. Take a sneak peek at all Raaw Madonna bikes models from 2020, by clicking here.
Model range prices
The most economical model, the RAAW Madonna V2 FOX Factory XT 2020 has a starting price of 5062$. RAAW Madonna V2 FOX Factory XTR 2020 on the other hand is the most expensive at 6341$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro bikes
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2020 for 5062$. In conclusion, this bike price is 40.65% higher than the price of the average Enduro bike.
Madonna V2 FOX Factory XT components
Fork
This bike has the Fox Factory Float 38 fork installed. The fork’s travel is 170mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the FOX FLOAT DPX2 Factory rear shock model, which has a travel of 160mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When it comes to wheels, the Madonna V2 FOX Factory XT bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. RAAW Madonna V2 FOX Factory XT is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
RAAW Madonna V2 FOX Factory XT bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
RAAW Madonna V2 FOX Factory XT includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
