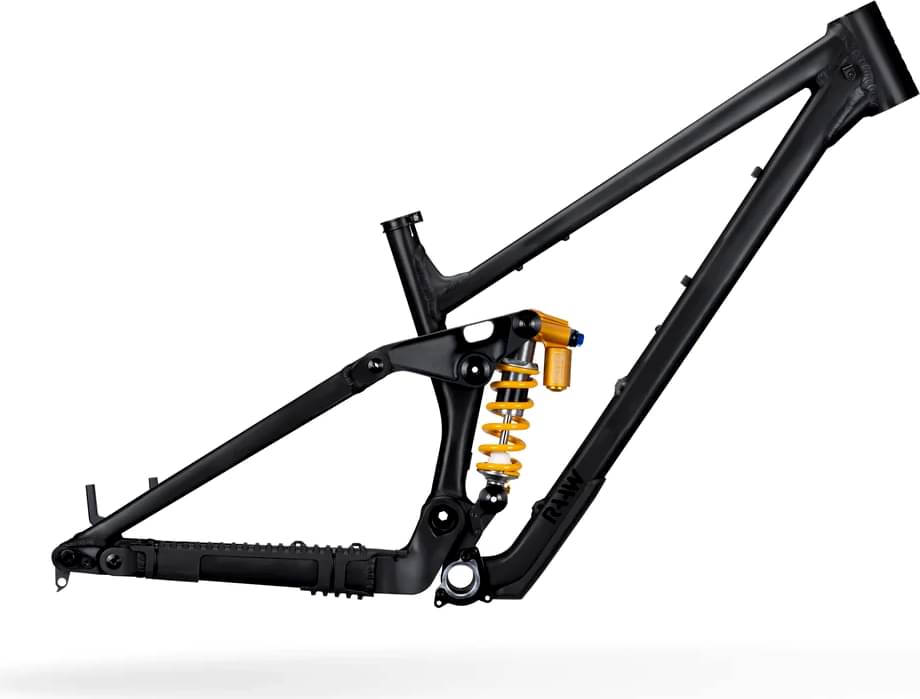

RAAW Madonna V3 Frame Kit 2023
2023 Mountain
Estimate price |
3,246$
Weight | 3.9 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Rear 160mm -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
167cm - 180cm
LG
177cm - 190cm
XL
186cm - 199cm
XXL
195cm - 208cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AL 6066 T6
Drivetrain
Shift Levers
One-by only, boost, 36t max (UDH / T-Type option)
Bottom Bracket
73mm BSA / ISCG05
Wheels
Rear Hub
148*12
Brakes
Brakes
203mm post mount
Cockpit
Headset
56 / 56 Zero stack
Seat
Seatpost
Yes
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.481 mm | 1.429 mm | 1.383 mm | 1.341 mm | 1.277 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 773 mm | 805 mm | 836 mm | 867 mm | 893 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 134 mm | 134 mm | 134 mm | 135 mm | 134 mm |
| Stack | 637 mm | 650 | 664 mm | 677 mm | 677 mm |
| Reach | 430 mm | 455 mm | 480 mm | 505 mm | 530 mm |
| Top Tube Length | 576 mm | 605 mm | 618 mm | 647 mm | 672 mm |
| Seat Tube Angle | 77 ° | 77 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 395 mm | 420 mm | 445 mm | 470 mm | 470 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 115 mm | 130 mm | 145 mm | 145 mm |
| Chainstay Length | 445 mm | 445 mm | 450 mm | 455 mm | 455 mm |
| Wheelbase | 1216 mm | 1248 mm | 1284 mm | 1320 mm | 1346 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 167 cm | 177 cm | 186 cm | 195 cm |
| Rider Max Height | 170 cm | 180 cm | 190 cm | 199 cm | 208 cm |
Model Overview
Madonna V3 Frame Kit belongs to the Raaw Madonna model. 4 frames variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
RAAW Madonna V2.2 Frame Kit 2023 is the most economical model, with a starting price of 2690$. RAAW Madonna V3 Frame Kit 2023 on the other hand costs 2954$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro frames
If you want to purchase a solid Enduro frame, it is important to know that the average cost is 1895$. However, even though the average price of an Enduro frame is lower, you might still be able to get a top-quality frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, RAAW Madonna V3 Frame Kit price was 2954$. Doing a quick comparison, we notice that Madonna V3 Frame Kit price is 55.88% more expensive than the average cost of an Enduro frame.
Enduro frames average weight
On a deeper look, we notice that the average weight of an Enduro frame is 3.43 kg (7.56 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Madonna V3 Frame Kit weighs 3.9 kg (8.6 lbs) and is considerably heavier than the average. In conclusion, the average Enduro frame weighs 13.7% less than Madonna V3 Frame Kit.
Madonna V3 Frame Kit components
Rear Shock
Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Brakes
For your safety, it is important to have quality breaks on your bike. RAAW Madonna V3 Frame Kit has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
RAAW Madonna V3 Frame Kit frame has 5 sizes, in the range of 158 cm – 208 cm (5.18 ft – 6.82 ft). In conclusion, you won’t have a problem finding one that suits you.
