Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Fork RockShox Pike RC
-
Groupset GX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Pike RC, Boost
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM GX Eagle
Front Derailleur
None
Shift Levers
SRAM GX Eagle, 12-speed, Shiftmix
Cassette
SRAM GX Eagle, XG-1275, 10-50 tooth
Crank
SRAM GX Eagle, DUB, 175mm
Bottom Bracket
SRAM pressfit DUB MTB, 92mm
Chain
SRAM GX
Chain Guide
MRP 1X
Pedals
None
Wheels
Front Hub
DT Swiss M1900 Spline wheelset
Rear Hub
DT Swiss M1900 Spline wheelset
Rims
DT Swiss M1900 Spline wheelset, 30mm inner width
Spokes
DT Swiss M1900 Spline wheelset
Tires
Front: Schwalbe Hans Dampf, Addix-Soft, TLE, Kevlar, 29"x2.35", Rear: Schwalbe Hans Dampf, Addix-Soft, TLE, Kevlar, 29"x2.35"
Brakes
Brakes
Magura MT5, Magura Storm HC 180mm rotors
Brake Levers
Magura MT5
Cockpit
Stem
Race Face Turbine R 35, 40mm on S/M, 50mm on L
Handlebar
Race Face Turbine R, 35mm diameter, 780mm, 20mm rise
Grips
SDG Slater
Headset
FSA, IS41/IS52
Seat
Saddle
SDG FLY MTN 2, CrMo
Seatpost
SDG Tellis, 125mm on S, 150mm on M/L
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.45 mm | 1.37 mm |
| Bottom Bracket Height | 324 mm | 324 mm | 324 mm |
| Front Center | 733 mm | 758 mm | 789 mm |
| Rake | 45 mm | 43 mm | 47 mm |
| Trail | 125 mm | 127 mm | 123 mm |
| Stack | 611 mm | 620 mm | 625 mm |
| Reach | 407 mm | 429 mm | 455 mm |
| Top Tube Length | 584 mm | 608 mm | 637 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 391 mm | 426 mm | 461 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1152 mm | 1177 mm | 1209 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm |
| Standover Height | 748 mm | 770 mm | 797 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

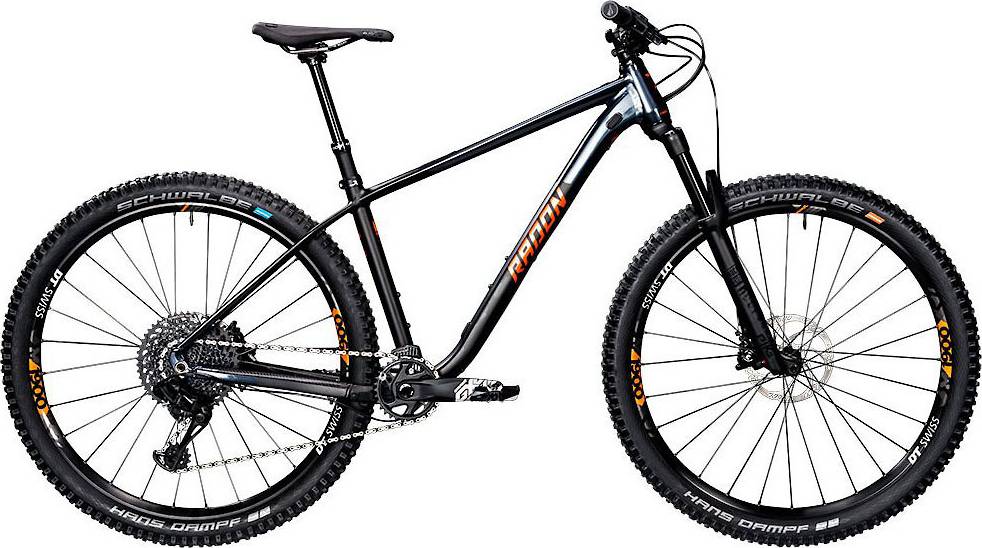

Cragger 8.0 is a Radon Cragger model. Radon released 11 bikes variations of this model so far. You can easily view all of the Radon Cragger bikes models from 2019, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Trail bikes average weight
The average weight for Trail bikes is 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Cragger 8.0 weighs 12.3 kg (27.12 lbs) and is a bit lighter than the average. To sum up, it’s 5.53% lighter than the average weight of Trail bikes.
Cragger 8.0 components
Fork
The fork installed on this bike is the RockShox Pike RC model. The travel on this model is 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When leaving the production line, the Cragger 8.0 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Cragger 8.0 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
Dropper post
Radon Cragger 8.0 includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
