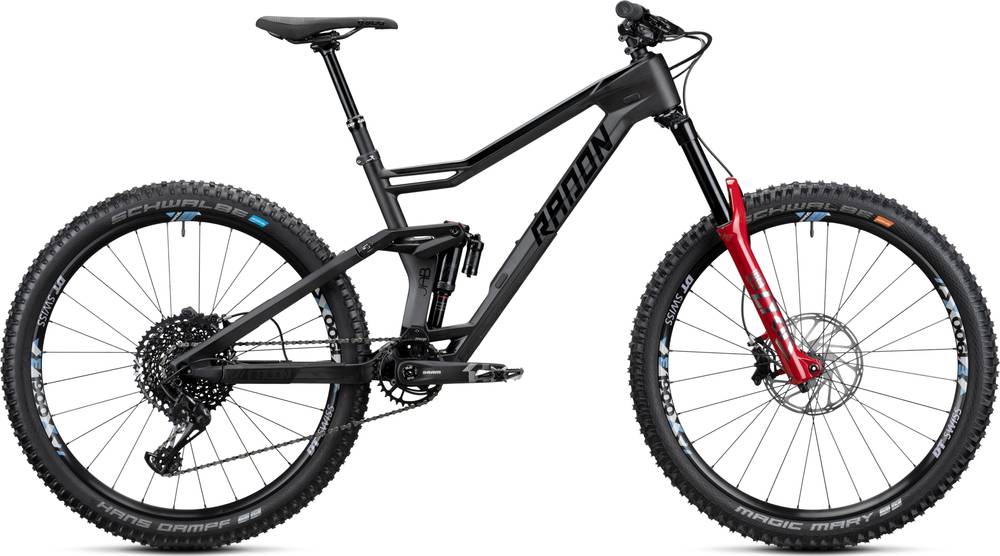

Radon JAB 10.0 2020
2020 Mountain
Estimate price |
4,128$
Weight | 13.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 160mm -
Fork RockShox Lyrik Ultimate
-
Groupset GX Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
JAB; Weight: 2.280 g, Material: Full Carbon mainframe and rear triangle, Max. width tire: 2.4", Flip Chip for geometry adjusting
Suspension Fork
Rock Shox Lyrik Ultimate RC2, Boost
Rear Shock
RockShox Super Deluxe Select+, Trunnion Mount, 205mm x 65mm
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle, Matchmaker X
Cassette
SRAM GX Eagle XG-1275, 10-50
Crank
SRAM X1 1000 Eagle, DUB, Boost, 32T, 170mm
Bottom Bracket
SRAM DUB, PressFit, 92mm
Chain
SRAM GX Eagle
Chain Guide
MRP 1X, ISCG05
Pedals
not included
Wheels
Front Hub
DT Swiss E1900 Spline wheelset, 110x15mm Boost front, 148x12mm Boost rear
Rear Hub
DT Swiss E1900 Spline wheelset, 110x15mm Boost front, 148x12mm Boost rear
Rims
DT Swiss E1900 Spline 27.5, 30mm, 110/148mm
Spokes
DT Swiss E1900 Spline wheelset
Tires
Schwalbe Magic Mary, Addix-Soft, TLE, Kevlar, 27.5" x 2.35"
Brakes
Brakes
SRAM Code R
Brake Levers
SRAM Code R
Cockpit
Stem
Race Face Turbine R, 35mm; 16"/40mm, 18"/40mm, 20"/50mm, 22"/50mm
Handlebar
Race Face Turbine R, 35 x 800mm, 35mm rise
Grips
SDG Slater
Headset
Acros AZX, ZS44/ZS56
Seat
Saddle
SDG Radar, CroMo
Seatpost
SDG Tellis, 31.6mm; 16"/125mm, 18"/150mm, 20"/150mm, 22"/150mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" High | 18" High | 20" High | 22" High |
|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.34 mm | 1.3 mm | 1.29 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 742 mm | 765 mm | 787 mm | 810 mm |
| Rake | 36 mm | 36 mm | 36 mm | 36 mm |
| Trail | 128 mm | 128 mm | 128 mm | 128 mm |
| Stack | 582 mm | 592 mm | 601 mm | 614 mm |
| Reach | 424 mm | 443 mm | 461 mm | 477 mm |
| Top Tube Length | 571 mm | 593 mm | 615 mm | 637 mm |
| Seat Tube Angle | 74.1 ° | 74.1 ° | 74.1 ° | 74.1 ° |
| Seat Tube Length | 395 mm | 425 mm | 455 mm | 490 mm |
| Head Tube Angle | 64.7 ° | 64.7 ° | 64.7 ° | 64.7 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 135 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1165 mm | 1188 mm | 1210 mm | 1233 mm |
| Bottom Bracket Drop | 10 mm | 10 mm | 10 mm | 10 mm |
| Standover Height | 722 mm | 740 mm | 755 mm | 776 mm |
| Wheels | 27" | 27" | 27" | 27" |
Model Overview
JAB 10.0 is part of the Radon Jab model. Radon released 21 bikes variations of this model so far. Take a sneak peek at all Radon Jab bikes models from 2020, by clicking here.
Model range prices
Radon JAB 9.0 2020 is the cheapest bike model and costs 3184$. Radon JAB 10.0 HD 2020 is the most expensive one and costs 4777$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro bikes
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2020 and its price was 3821$. Doing a quick comparison, we notice that JAB 10.0 price is 6.17% more expensive than the average cost of an Enduro bike.
Average weight for Enduro bikes
If we make a quick analysis of the average weight of an Enduro bike, we get 14.27 kg (31.46 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 13.5 kg (29.76 lbs), Radon bike is a bit lighter than average. In short, the average Enduro bike weight is 5.7% higher than this one.
Overview of components
Fork
The JAB 10.0 comes factory-installed with the RockShox Lyrik Ultimate fork. This has a travel range of 170mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The JAB 10.0 has a rear shock with a travel of 160mm. The model RockShox Super Deluxe Select+ is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The wheels on JAB 10.0 are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Radon JAB 10.0 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Dropper post
A dropper post is included with the JAB 10.0. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
