Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 36 Float Factory, FIT GRIP2, Kashima coating, Boost
Rear Shock
FOX Float X2 Factory, 2-positions, EVOL, Kashima coating, Trunnion mount, 205x65mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Front Derailleur
None
Shift Levers
SRAM X01 Eagle, 12-speed, Matchmaker
Cassette
SRAM GX Eagle, XG-1275, 10-50 tooth
Crank
SRAM X1 Eagle Carbon, Boost, DUB, 170mm
Bottom Bracket
SRAM pressfit DUB MTB, 92mm
Chain
SRAM X01 Eagle
Chain Guide
e*thirteen TRS Race SL,
Pedals
None
Wheels
Front Hub
Newmen Evolution SL A30 wheelset
Rear Hub
Newmen Evolution SL A30 wheelset
Rims
Newmen Evolution SL A30 wheelset, 30mm inner width
Spokes
Newmen Evolution SL A30 wheelset
Tires
Front: Schwalbe Magic Mary, Addix-Soft, TLE, Kevlar, 27.5"x2.35", Rear: Schwalbe Hans Dampf, Addix-Speedgrip, TLE, Kevlar, 27.5"x2.35"
Brakes
Brakes
Front: SRAM Code RSC, SRAM Centerline 200mm 6-bolt rotor, Rear: SRAM Code RSC, SRAM Centerline 180mm 6-bolt rotor
Brake Levers
SRAM Code RSC
Cockpit
Stem
Race Face Turbine R 35, 40mm
Handlebar
Race Face NEXT R, 35mm diameter, 780mm, 20mm rise
Grips
SDG Slater
Headset
Acros AzX ZS44/ZS56
Seat
Saddle
SDG FLY MTN 2, Ti
Seatpost
FOX Transfer Factory, Kashima coating, 150mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 18" | 20" |
|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.31 mm |
| Bottom Bracket Height | 365 mm | 365 mm |
| Front Center | 765 mm | 787 mm |
| Rake | 28 mm | 27 mm |
| Trail | 137 mm | 138 mm |
| Stack | 588 mm | 597 mm |
| Reach | 439 mm | 457 mm |
| Top Tube Length | 589 mm | 611 mm |
| Seat Tube Angle | 74.1 ° | 74.1 ° |
| Seat Tube Length | 425 mm | 466 mm |
| Head Tube Angle | 64.7 ° | 64.7 ° |
| Head Tube Length | 110 mm | 120 mm |
| Chainstay Length | 418 mm | 418 mm |
| Wheelbase | 1184 mm | 1206 mm |
| Bottom Bracket Drop | -10 mm | -10 mm |
| Standover Height | 735 mm | 751 mm |
| Wheels | 27" | 27" |
Model Overview

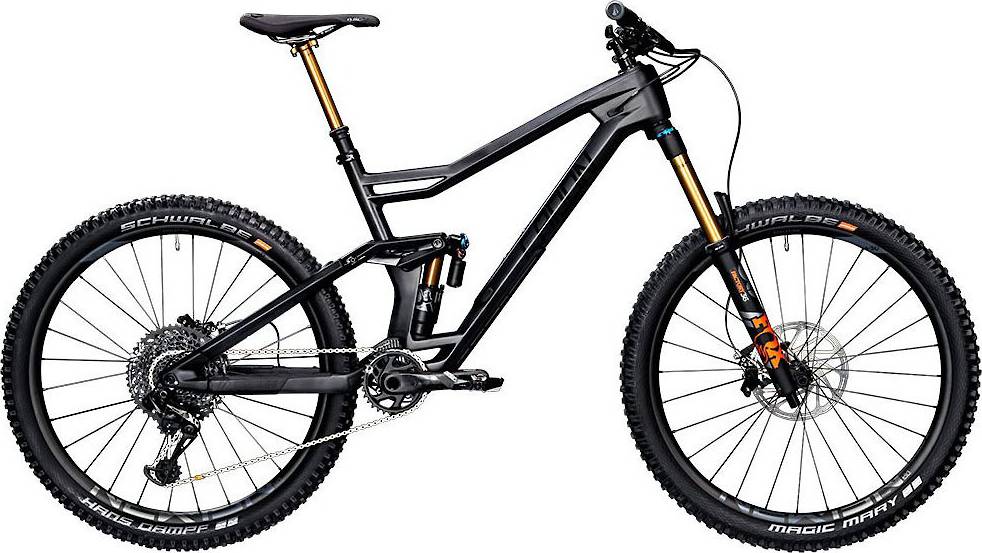

Jab 10.0 MS completes the Radon Jab model. Radon launched 21 bikes of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro bikes average price
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Enduro bikes average weight
The average weight for Enduro bikes is 14.27 kg (31.46 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Jab 10.0 MS weighs 12.89 kg (28.42 lbs) and is considerably lighter than the average. To sum up, it’s 10.71% lighter than the average weight of Enduro bikes.
Overview of components
Fork
The Jab 10.0 MS comes factory-installed with the Fox Factory Float 36 fork. This has a travel range of 170mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the FOX Float X2 Factory rear shock model, which has a travel of 160mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When leaving the production line, the Jab 10.0 MS model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Radon Jab 10.0 MS has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Dropper post
Radon Jab 10.0 MS comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
